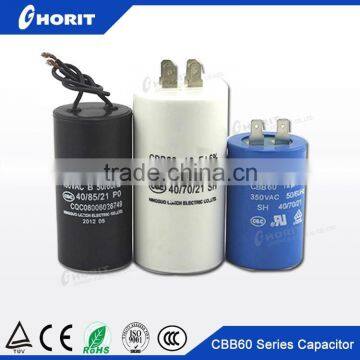

Product Name: 250v 50-60Hz ac run motor capacitor cbb60
Type: Capacitor cbb60
Detailed Info
The capacitor uses polypropylene film as medium with epoxy resin installation.
Products characteristics:
With low loss, anti-striking current, strong loading capacity, high insulation, good self healing, long life and without leaking.
Products applications:
It is mainly used for single-phase motors, washing mechines, water pumps, air compressors, washing machines, lawn mowers, household appliances, electromic products and so on.
Specifications
Capacitance range | 1μf-150μf | |
Rated voltage | 250V-500VAC | |
Rated frequency | 50Hz;60Hz | |
Capacitance tolerance | ±5% or upon customer’s demand | |
Loss Tangent | Tg ≤0.002(50Hz-100Hz) | |
Standard Temperature | -25°C~+70°C,-40°C~+85°C | |
Climate class | 25/70/21,40/85/21 | |
Examine Voltage | Between derivation head | AC≥2.00Un 2S NO Breakdown |
Between derivation head and shell | AC≥2000V 2S NO Breakdown | |
Insulation Resistance | Between derivation head | Rj·C≥3000MΩ.μf |
Between derivation head and shell | Rj≥1000MΩ.μf | |
Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) | |
Test voltage between terminals | 2×Un for 3s | |
Test voltage between terminals and case | 2×Un+1000VDC FOR 2s | |
Security Level | PO | |
Executing Standard | GB/T3667.1-2005, IEC60252-1:2001 | |

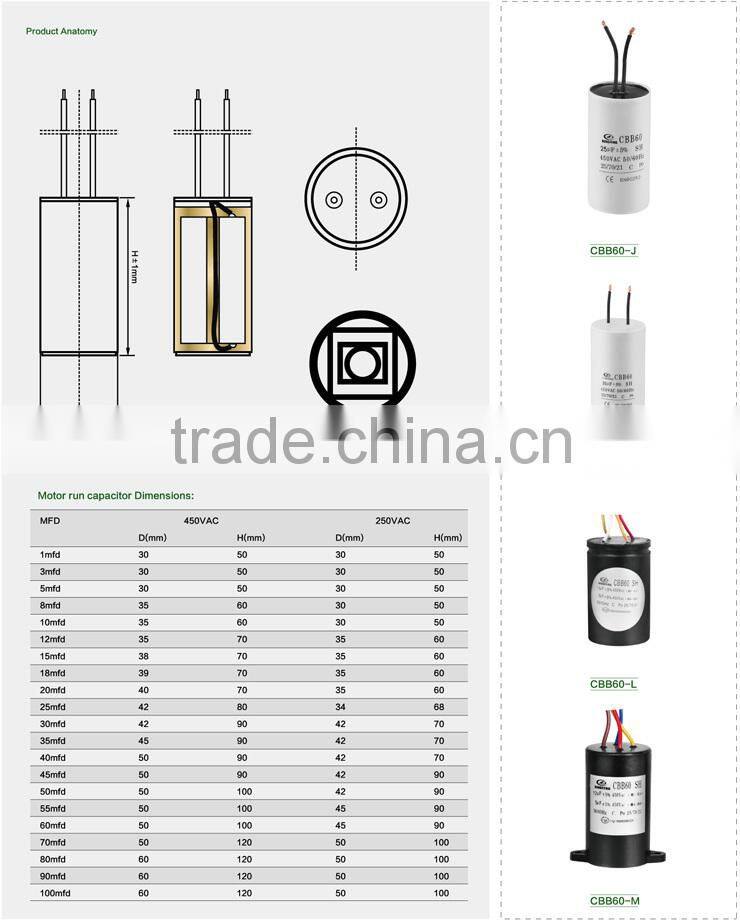

Capacitance and dimension(mm)

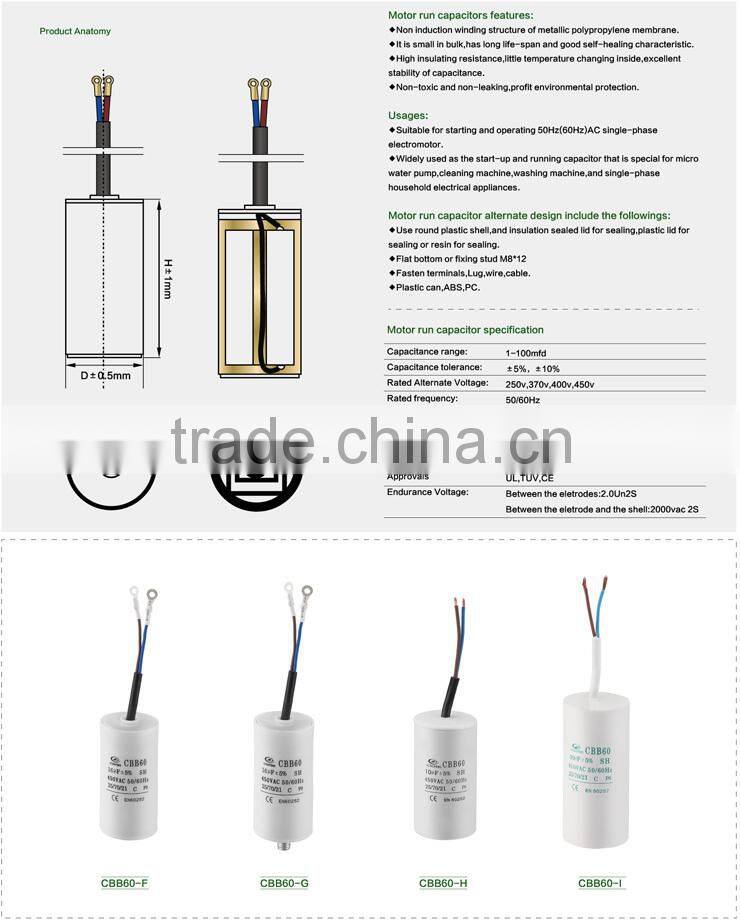

Drawing

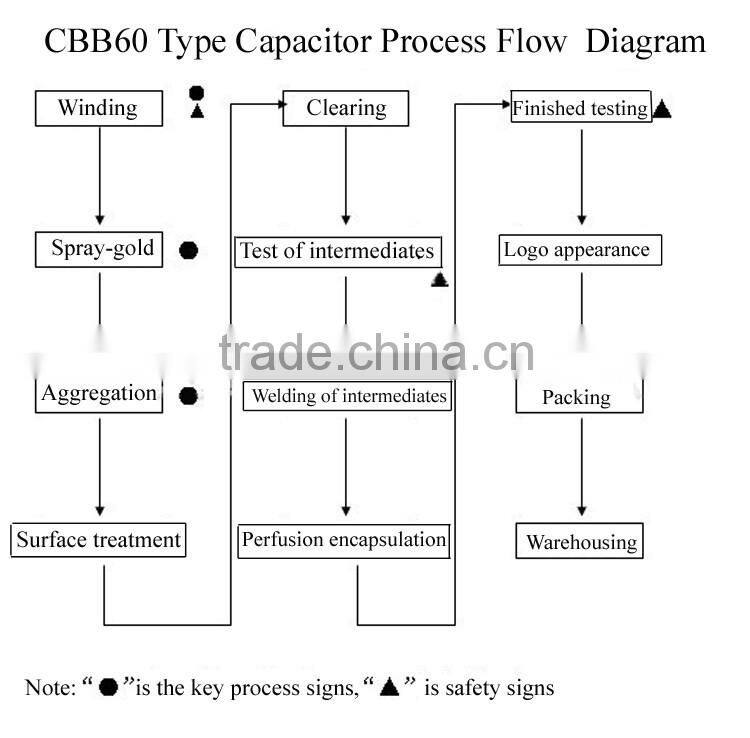

Capacitor Process Flow Diagram

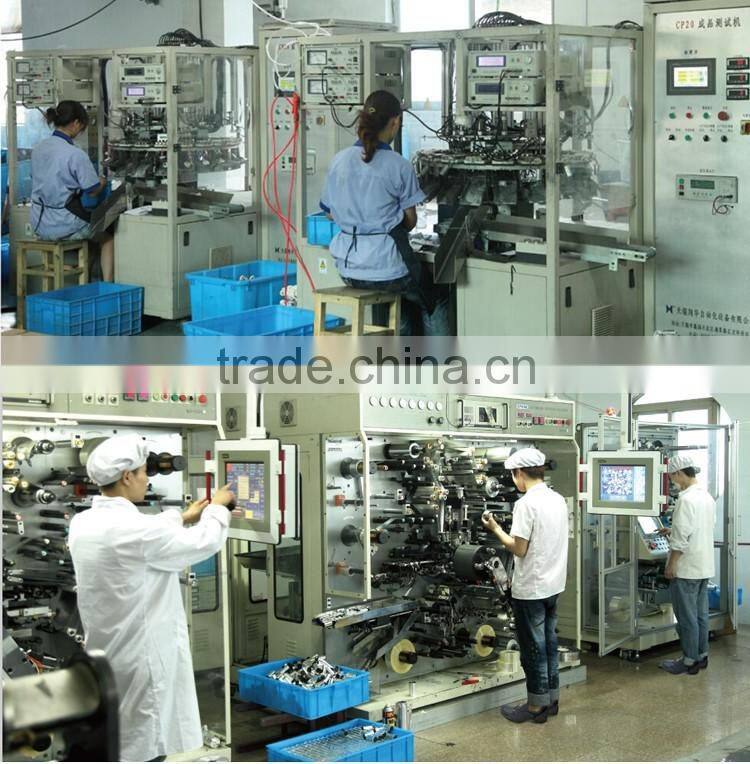

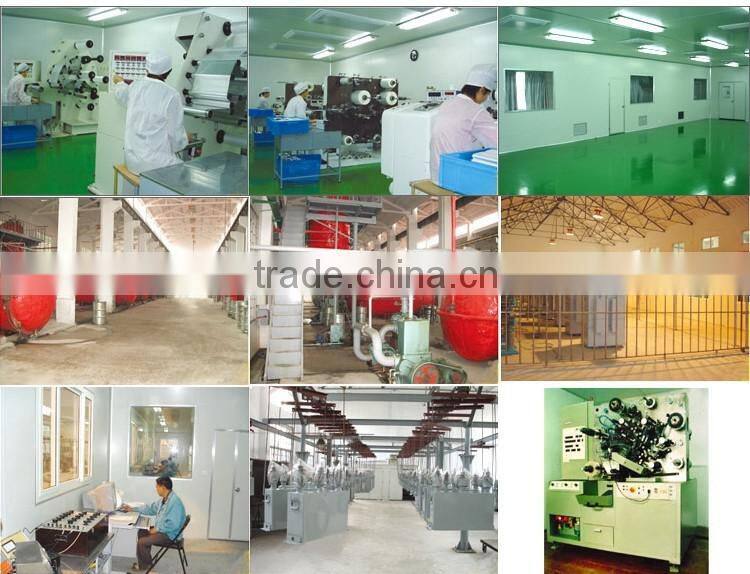

Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China, enjoys convenient transportation.
Ghorit covers 26,000 m2 including a construction area of 12,000 m2, integrates R&D, manufacture, sale and service, also has built a new production base in Shanghai.
Ghorit mainly produces and sells high-voltage electrical components and related equipments.
Ghorit has passed ISO9001. Ghorit adhere to the tenet of " survival based on high-quality products". with strong technical force, advanced production technology, perfect detection means and super product quality, Ghorit keeps on expanding the markets and has won a high reputation among the customers.
Trade terms: FOB, CIF,EXW
Payment terms: T/T, L/C, Western Union, Paypal
Payment condition: 30% as deposit paid in advance, the balance paid before shipping.
Delivery time: within 20 working days after receive deposit and confirm details
packing: neutral carton, wooden case or as required
Delivery: by sea, by train, by air, by express delivery
1. What's the payment term?
T/T, L/C, Western Union, Paypal.
2. What's the delivery time?
Within 20 working days after receive deposit and confirm details.
3. Can you offer test report of the product?
We test every product before packing.
4. Can you offer components of the products?
Yes, we also sell components separately.
Pls feel free to contact us for any questions or inquiries of our products.
