The full automatic OSB production line machine
Particle board production line's materail and functions:
Particle board is made from small-diameter wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and decoration and laminati-on.
1. Chip preparation section

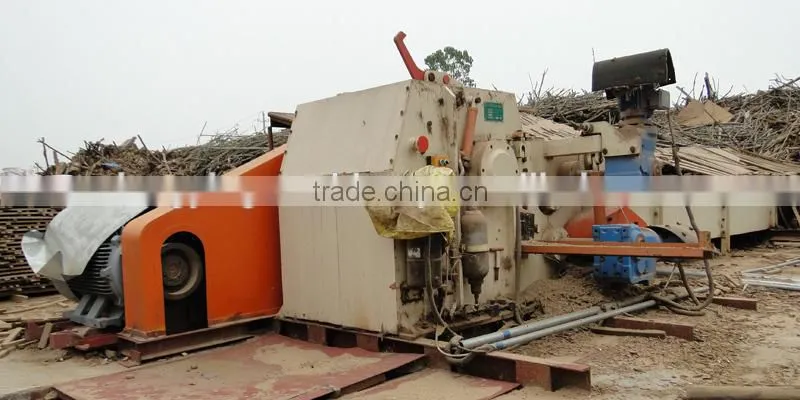

Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knifering flaker by which the chips are turned to flakes, then the flake stored in wet flake bin.
2. Drying and sifting section

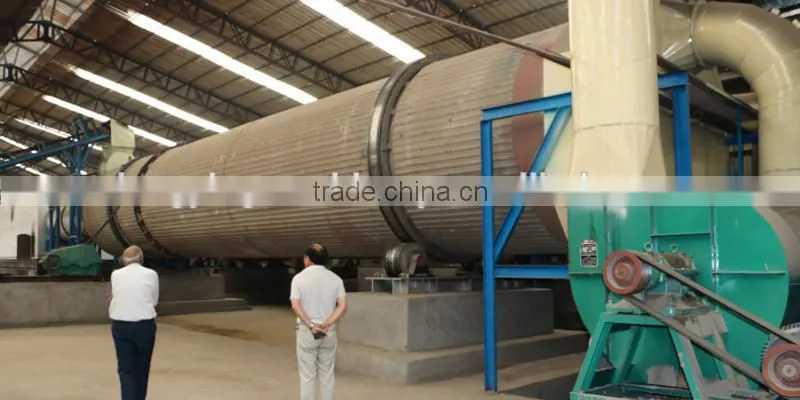

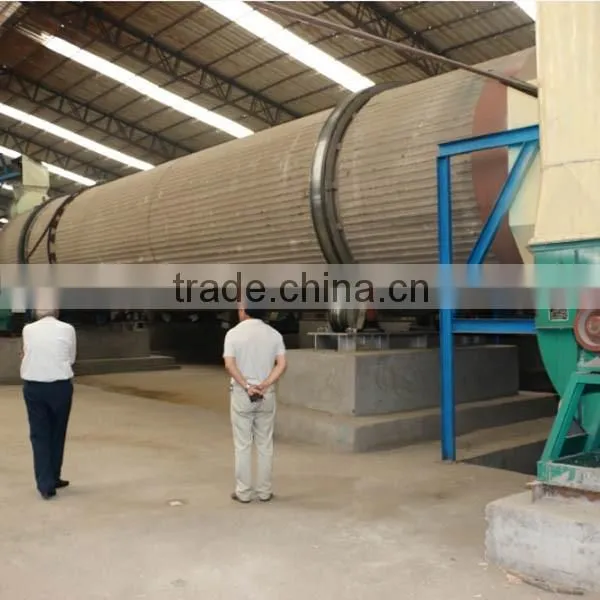

The flakes are discharged from the wet flake bin which are conveyed to the rotary dryer.
Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-
crushing, and transported to surface dry wood shavings bin to be stored.
3.sizing section
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue to achieve the uniform mixing and the sufficient sizing effect.

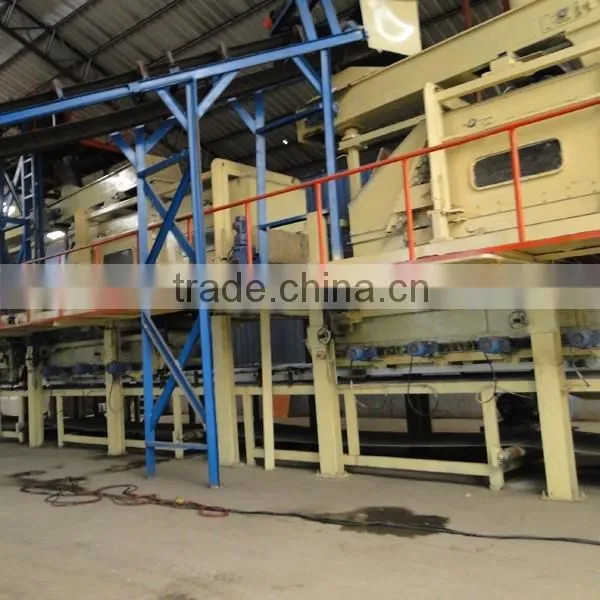

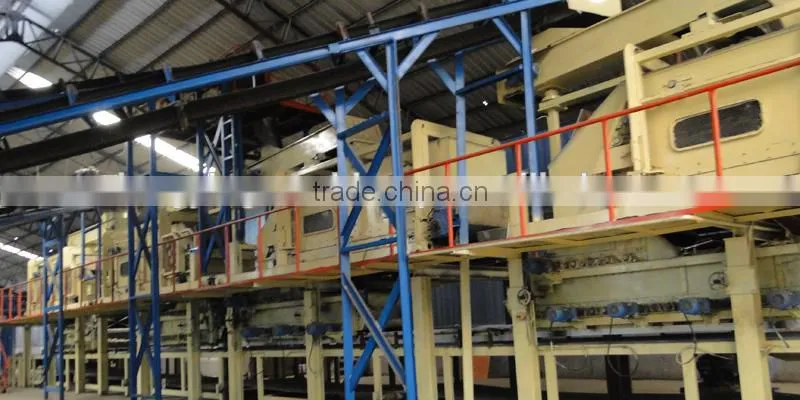

4.Paving and thermoforming section
The after sizing shavings are transported to the mechanical grading paving machines by
the belt conveyor.and they are paved to the uniform flat slab. After a series of processes
such as pre-press, lengthwise saw, cross saw, accelerate conveyor, storing conveyor and

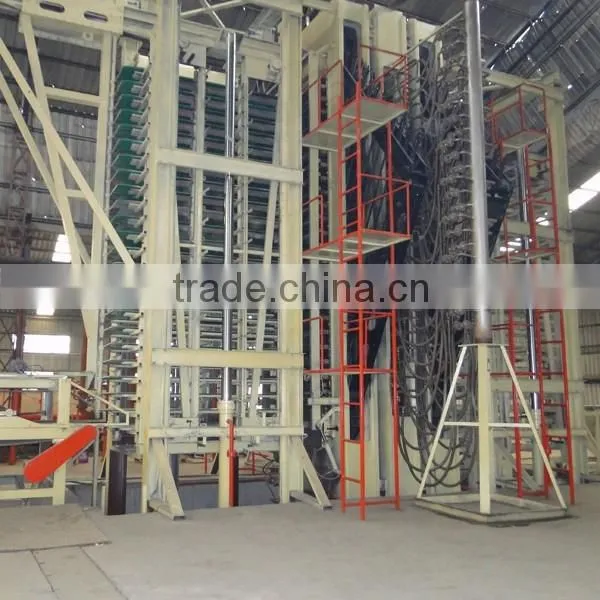

loading conveyor,the rough boards are sent to the installed hoistingcages,then the rough

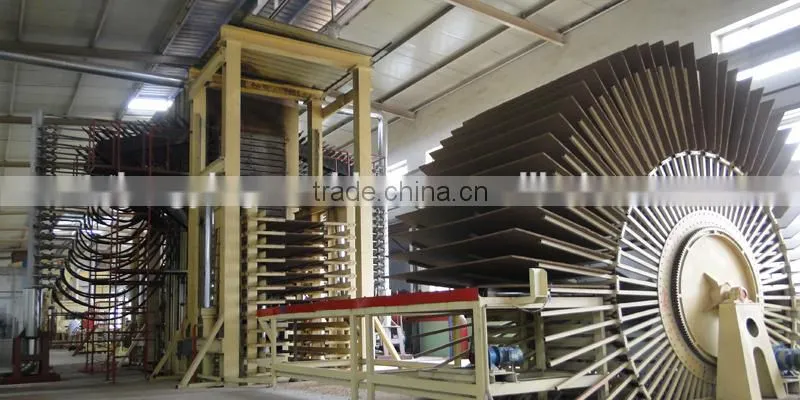

boards are pressed by the hot press machine.
5. Post--processing section
The thermofoming boards are conveyed to the panel turnover machien to become cool,then
the boads are transported to the vertical and horizontal edge cutting machine by the
cooling conveyor.

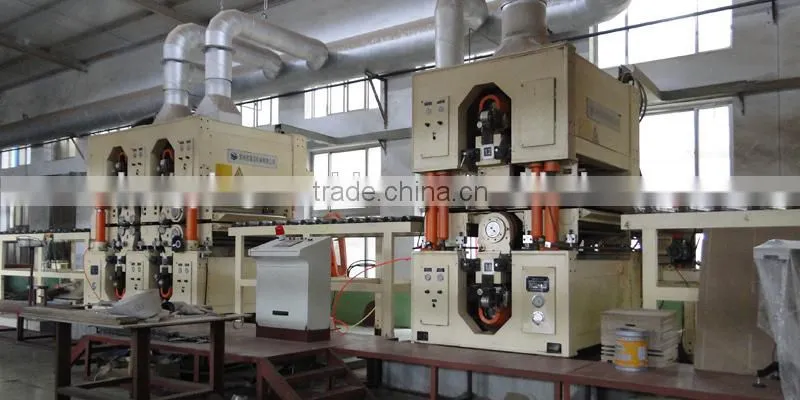

6.sanding section
The boards are sanded, checked and stored .
PLC control is used in mat-forming section.
OSB/ Particle board / chipboard production
We will provide:
1.Seller will send 1-2 technicians to guide the equipment installation and trial run.
2,The installation duration is about 25-30 days.
3.The construction of machine’s foundation support steel blocks.
4. The boiler and pipes & valves connected to the inlets/outlets of machine.
5.Hydraulic oil, thermal oil and fuel for boiler.
6.The necessary device, facilities and skilled worker for the installation and trial run.
7. Electric power, connected to main electric cabinet;
8 The necessary material such as impregnated paper, raw board etc.
9.The other relevant tools for the installation and trial run.
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing ,manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
