MDF production line/ Medium Density Fiberboard Production Line
MDF/HDF is a kind of excellent substitute for natural wood panel with wide application. Materials such as wood and other plant fiber after being added suitable urea formaldehyde resin or other adhesives forms 650-880 kg/m3 panels on hot press. The panels are characterized with tight and smooth surface, uniform core layer and good wood working performance.
1. Main Technical Data of MDF production line
| --Voltage | 380v/ 415v |
| --Capacity | 30,000~60,000 cbm |
| --Board Size | 4*8 (1220*2400) |
| --Raw Material | Wood Branch, log, waste wood |
| --Control Method | PLC, CNC |
2. Equipments List of MDF Production Line
A) Chip preparation section
1) Drum chipper
2) Belt conveyor
3) Oscillatory sieve
B) Fiber preparation section
4) Refiner
5) Reaction kettle
6) Fiber drying system
C) Forming and pressing section
7) Fiber forming machine
8) Continous pre-press

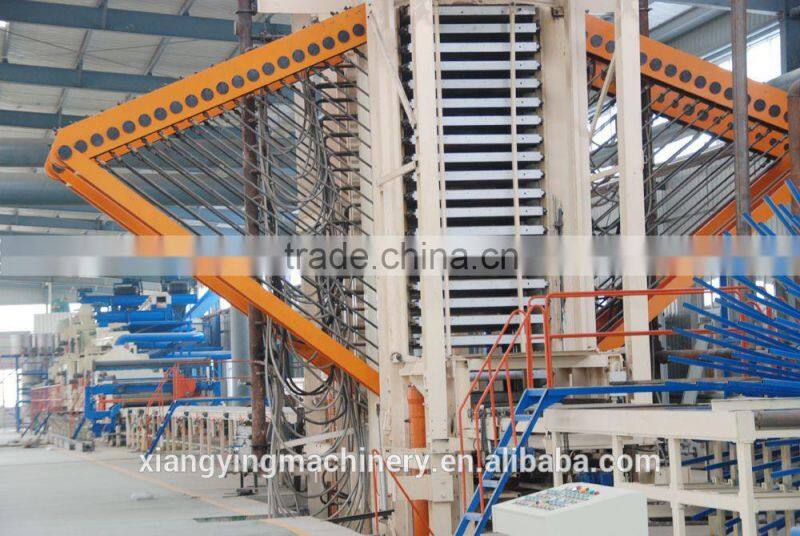

9) Hot press & Board cooler
D) Final board preparation & Sanding section
10) Longitudinal cutting saw
11) Sanding machine
3. Company information
Xiangying Machinery · Linyi Shandong
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, Linyi Xiangying Machinery Manufacturing Co., Ltd(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing, manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line, Plywood production line, MDF production line, Melamine veneer press,Mould door equipment etc. based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.
Choose Xiangying machinery, Create measureless value.
