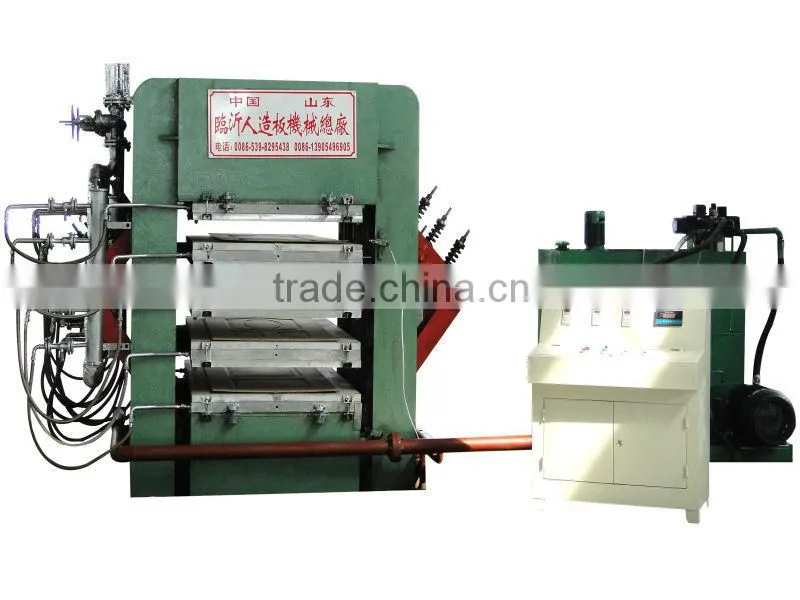

door skin hot press machine
Application :
1. Door panel hot press machine/hdf moulded door/skin door machine is suitable for moulding and veneering of melamine door skin, maturalwood for skin.
2. Door panel hot press machine/hdf moulded door/skin door machine adopts spring synchrnous closed structure, can stop at any position according to the production process (or position-limit control), and the residence time can be adjusted.The press holding time and pressure set automatic control.
Specification:
1. Layer………………………………………………………4-layer
2. Total pressure…………………………………….………800T
3. Feeding direction………………………………....... … … Longitudinal
4. Hot platen quantity……………………………… … … …5pcs
5. hot platen size…………………………………… … … … 1150 x 2250 x 52 mm
6. Daylight opening:………………………………… … … … 250 mm
7. Main oil cylinder Diameter&quantity…………………. … Φ 220 mm x 8 pcs
8. Main Oil cylinder working stroke……………….. … … … 1000 mm
9. Hoist oil cylinder Diameter&quantity……… … … … ……Φ 160 mm x 2 pcs
10. Hoist Oil cylinder working stroke…………………............1000 mm
11. Closing time with loading…………………….....................≤ 10 s
12. Thickness of frame steel platen………………...................30 mm
13. Max hydraulic cylinder pressure……….............................20 Mpa
14. Max oil pump pressure………………………….................25 Mpa
15. Control method……………………………………….........Programmable PLC
16. Structure……………………………………………….........combination
17. Total motor power:………………………………................18.5 KW
18. Weight…………………………………………………........Approx 35 ton

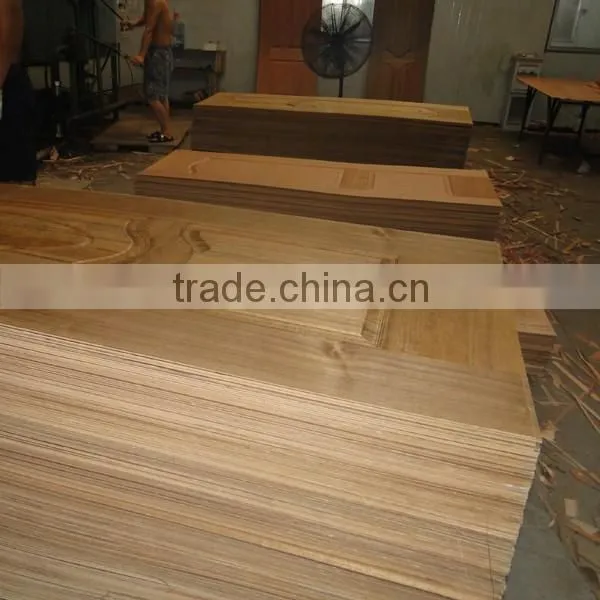

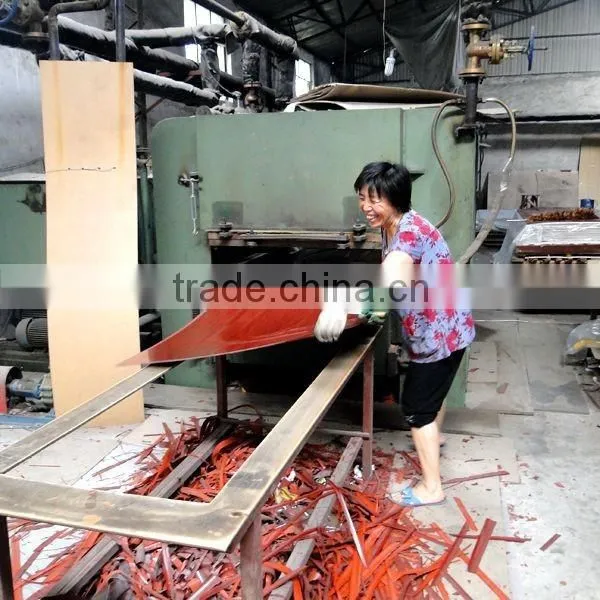

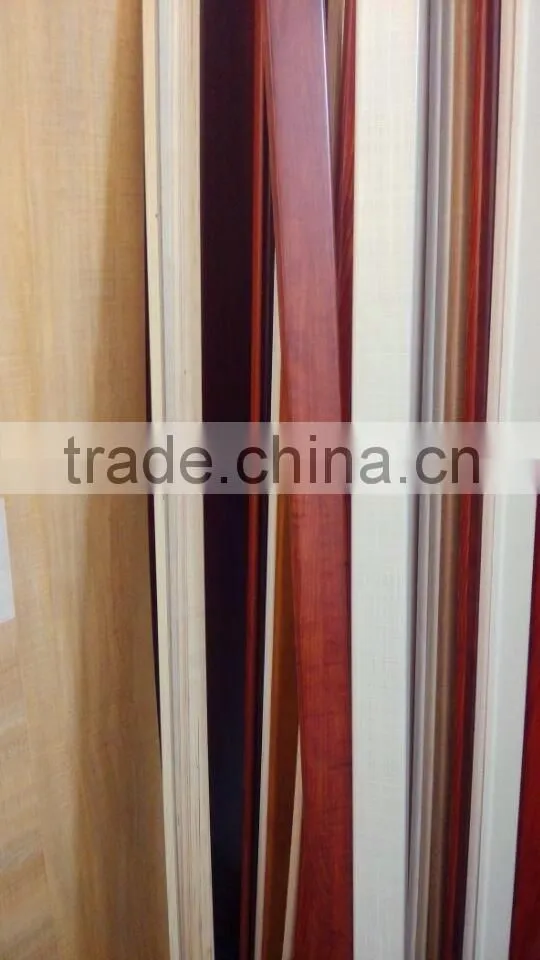

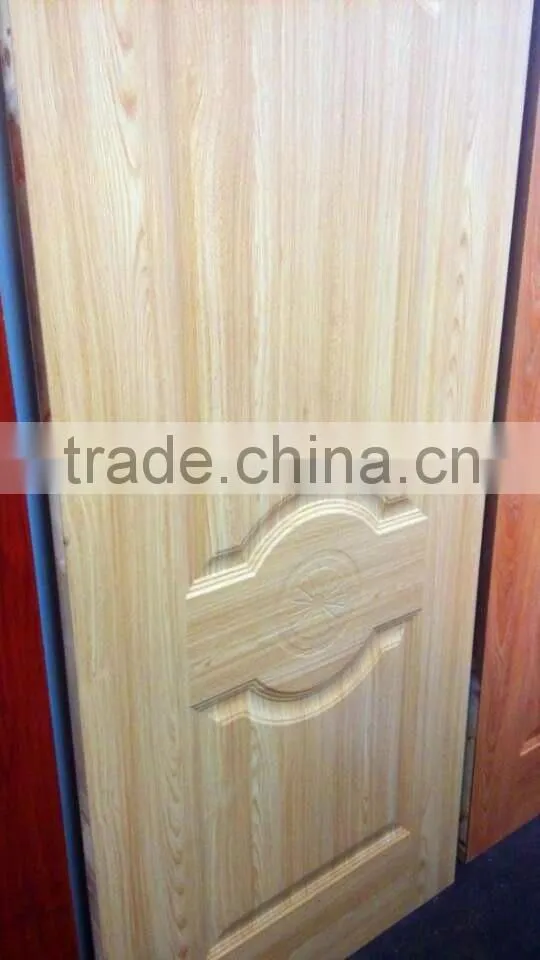

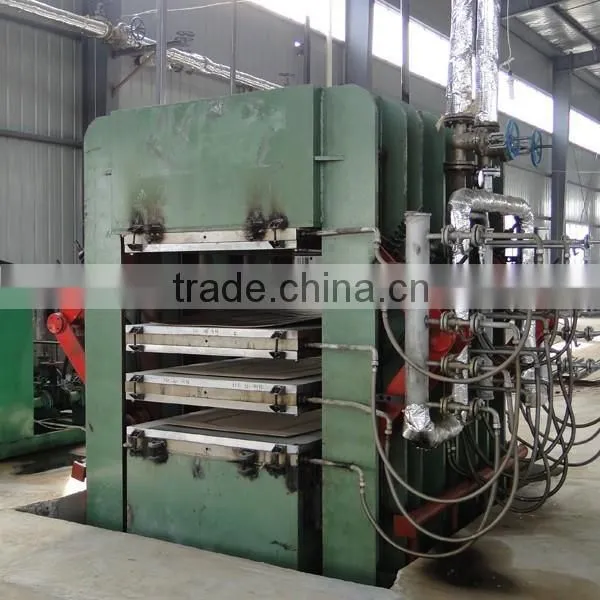

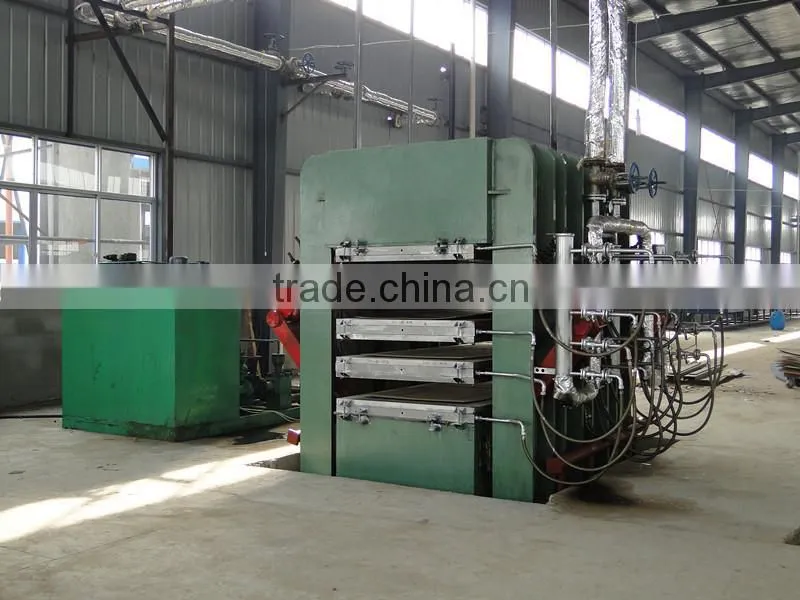

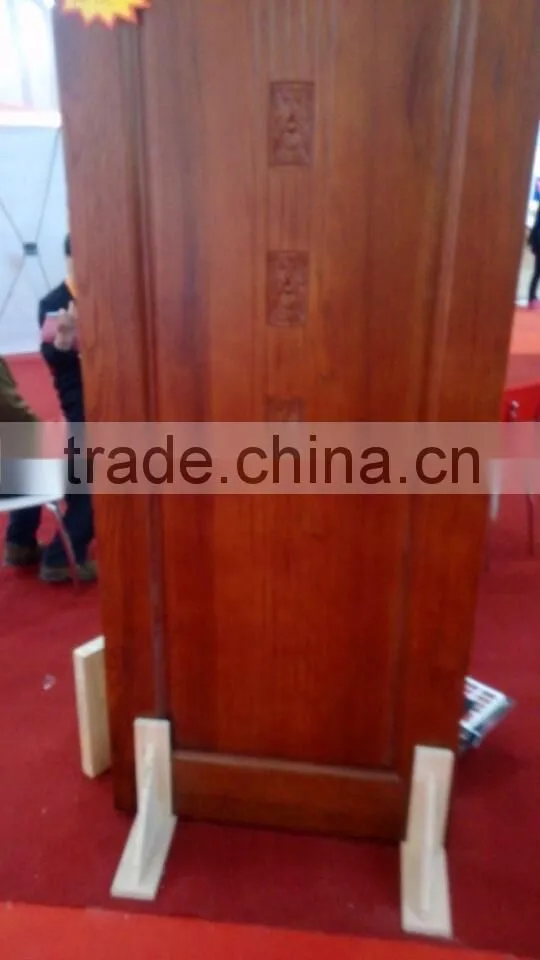

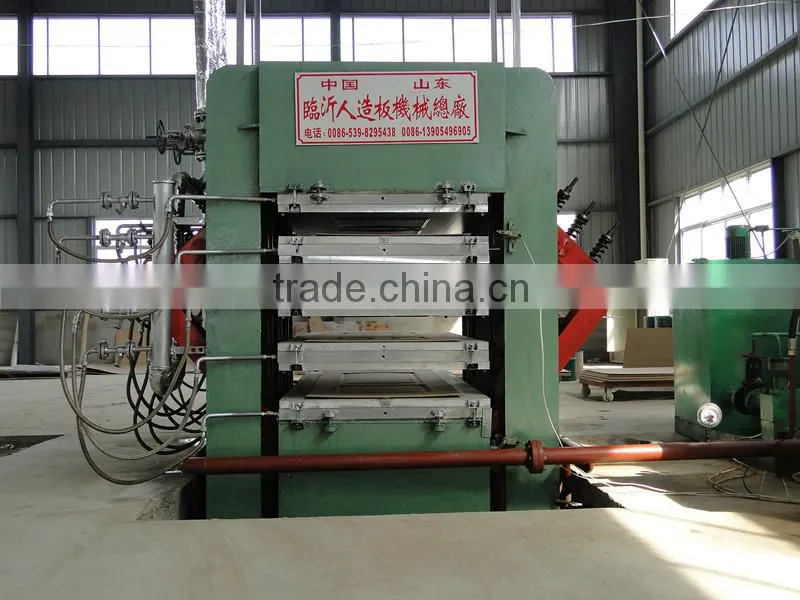

Pictures:
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing ,manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
