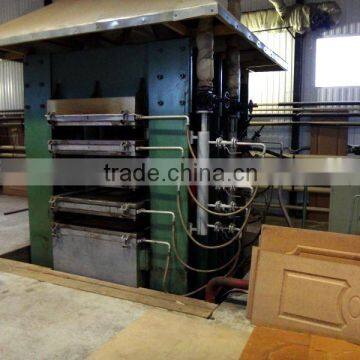

molded door skin hot press machine

Specifications

Application :

1. Door panel hot press machine/hdf moulded door/skin door machine is suitable for moulding and veneering of melamine door skin, maturalwood for skin.

2. Door panel hot press machine/hdf moulded door/skin door machine adopts spring synchrnous closed structure, can stop at any position according to the production process (or position-limit control), and the residence time can be adjusted.The press holding time and pressure set automatic control.

 1. Layer………………………………………………………4-layer

2. Total pressure…………………………………….………800T

3. Feeding direction………………………………....... … … Longitudinal

4.  Hot platen quantity……………………………… … … …5pcs

5. hot platen size…………………………………… … … … 1150 x 2250 x 52 mm

6. Daylight opening:………………………………… … … … 250 mm

7. Main oil cylinder Diameter&quantity…………………. … Φ 220 mm x 8 pcs

8. Main Oil cylinder working stroke……………….. … … … 1000 mm

9. Hoist oil cylinder Diameter&quantity……… … … … ……Φ 160 mm x 2 pcs

10. Hoist Oil cylinder working stroke…………………............1000 mm

11. Closing time with loading…………………….....................≤ 10 s

12. Thickness of frame steel platen………………...................30 mm

13. Max hydraulic cylinder pressure……….............................20 Mpa

14. Max oil pump pressure………………………….................25 Mpa

15. Control method……………………………………….........Programmable PLC

16. Structure……………………………………………….........combination

17. Total motor power:………………………………................18.5 KW

18. Weight…………………………………………………........Approx 35 ton
