Hydraulic Molded Door Hot Press/ Molded Door Hot Press/ Molded Door Skin Hot Press Machine
US$ 30,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hot Press Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Short Cycle Laminating Flooring Hot Press MachineUS$ 29,000 - 98,000MOQ: 1 Set -
Wooden Molded Door Hot Press MachineUS$ 4,500 - 8,000MOQ: 1 Set
-
Block Board/plywood Lamination Hot Press /4x8ft/thickness 3 to 25mmUS$ 35,000 - 55,000MOQ: 1 Set
-
Lamination Hot Press in Double Sides in the Full Automatic LineUS$ 6,000 - 15,000MOQ: 1 Set
-
Pre-laminated Press Machine / Lamination PressUS$ 39,000 - 49,000MOQ: 1 Set
Condition
New
Type
Hot Press Machine
Place of Origin
Shandong, China
Brand Name
XIANGYING
Model Number
Md 800
Voltage
380V
Power(W)
37KW
Dimension(L*W*H)
Accoding
Weight
1200T
Certification
ISO9001
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

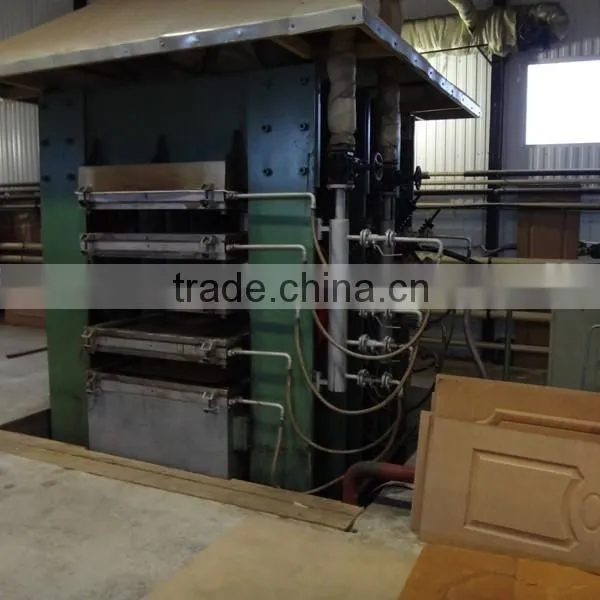

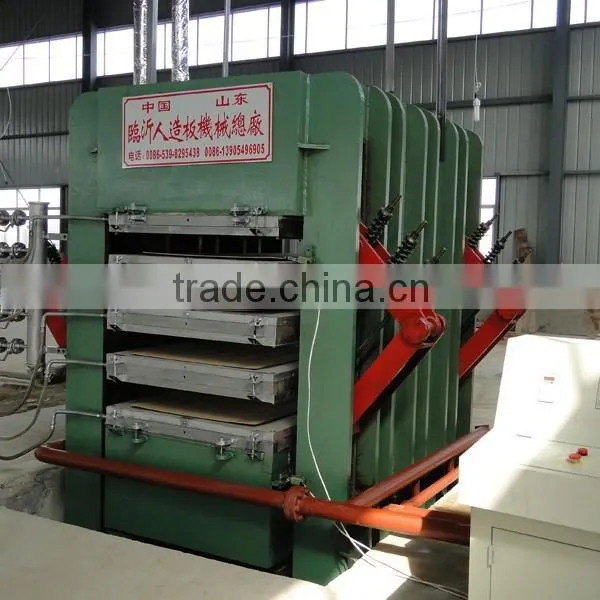

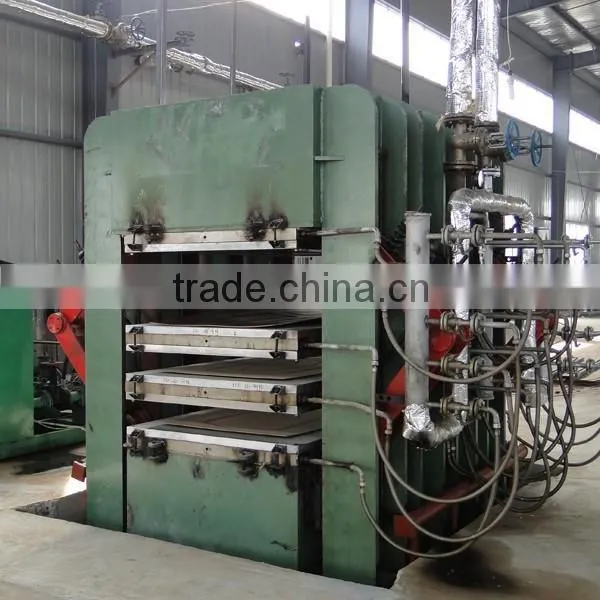

Molded door skin hot press machine / Molded door skin hot press machine:

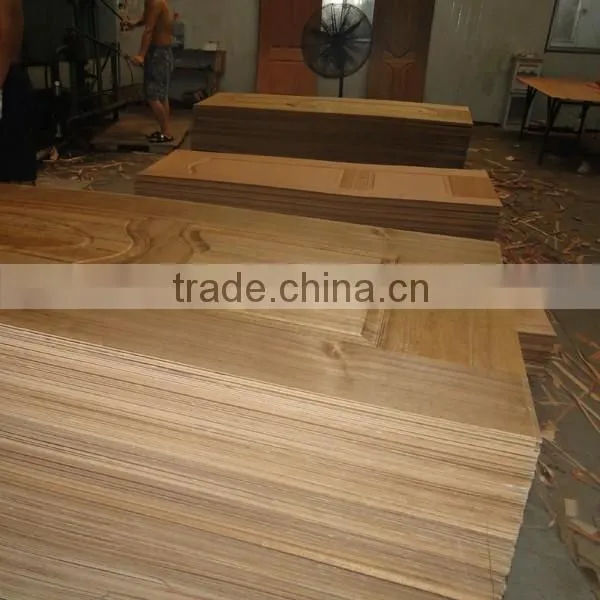

Molded door skin hot press machine is used for making melamine door skin or veneer door skin.Door skin can have many choice about the texture which is made by different kind of door moulds.
molded door skin hot press machine is developed for producing melamine MDF surface of wooden doors. The synchronizer makes all platens going up and down at the same time. Platens can stop at any position according your operation. The pressure and time of holding pressure are adjustable and flexible. You can select the automatic and manual type easily by an electrical switch.
Technical Data of molded door skin hot press machine :
| Model | End plate size(ft) | Nominal pressure(KN) | Hot platen size(mm) | Daylight opening(mm) | Main oil cylinder( dia×stroke×pcs) | |
| NYJ-800T | 3 daylights |
3×7 | 8000 | 1150×2250×70 | 250 | Φ440×920×4 |
| 4 daylights | 3×7 | 8000 | 1150×2250×60 | 250 | Φ250×1000×8 | |
| 5 daylights | 3×7 | 8000 | 1150×2250×60 | 250 | Φ280×1250×6 | |
| NYJ-1200T | 3 daylights | 3×7 | 12000 | 1150×2250×70 | 300 | Φ320×920×6 |
| 4×8 | 1400×2600×70 | |||||
| 4 daylights | 3×7 | 12000 | 1150×2250×60 | 250 | Φ320×1000×6 | |
| 4×8 | 1400×2600×60 | |||||
| 5 daylights | 3×7 | 12000 | 1150×2250×60 | 250 | Φ280×1250×8 | |
| 4×8 | 1400×2600×60 | |||||
| NYJ1400T | 3 daylights | 3×7 | 14000 | 1150×2250×40 | 300 | Φ340×920×6 |
| 4×8 | 1400×2600×70 | |||||
| 4 daylights | 3×7 | 14000 | 1150×2250×60 | 250 | Φ340×1000×6 | |
| 4×8 | 1400×2600×60 | |||||
| 5 daylights | 3×7 | 14000 | 1150×2250×60 | 250 | Φ340×1250×6 |
|
| 4×8 | 1400×2600×60 | |||||
| NYJ-1600T | 3 daylights | 4×8 | 16000 | 1400×2600×70 | 250 | Φ380×920×6 |
| 4 daylights | 4×8 | 16000 | 1400×2600×60 | 250 | Φ380×1000×6 |
|
| 5 daylights | 4×8 | 16000 | 1400×2600×60 | 250 | Φ380×1250×6 |
|
