Drum Chipper |
Model |
BX2110 |
|
--Diameter of knife (mm) |
1000 mm | --Capacity | 75 m3/h |
--Speed of the knife |
550 rpm | --Main power | 220 kw |
--No. of the knife blade |
2*2 | --Feeder motor power | 7.5*2 kw |
--Length of wood |
30 mm | --Feeding or oil pump motor power | 4 kw |
--No. Of feeding roller |
6+1 | --Max cutting diameter | 210 mm |
--Size of feeding area |
330×1050 mm |
--Weight |
12500 kg |
--Feeding speed |
33 m/min | --Physical size(L×W×H) | 9460×3550×1500 mm |

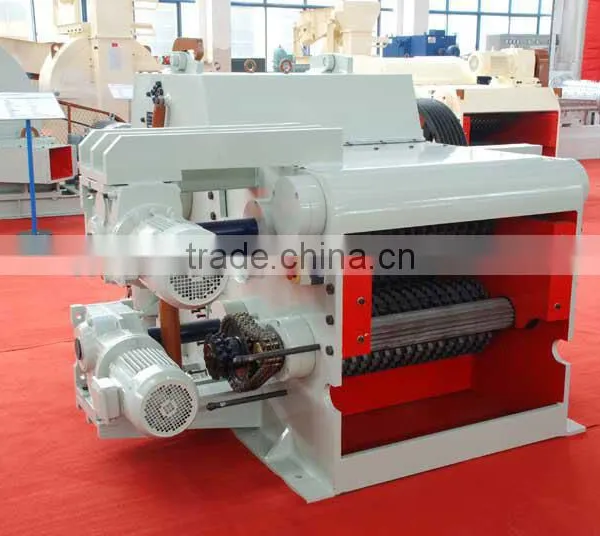

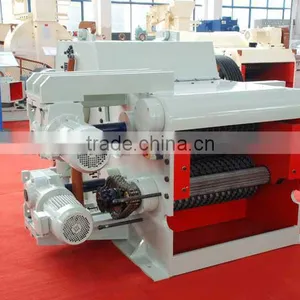

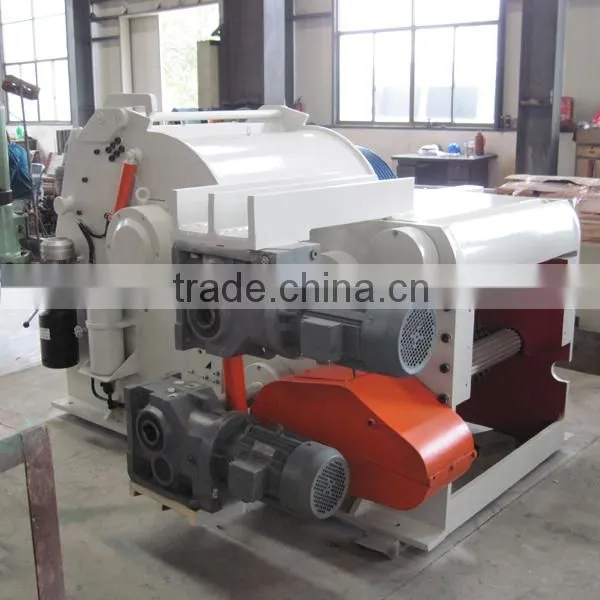

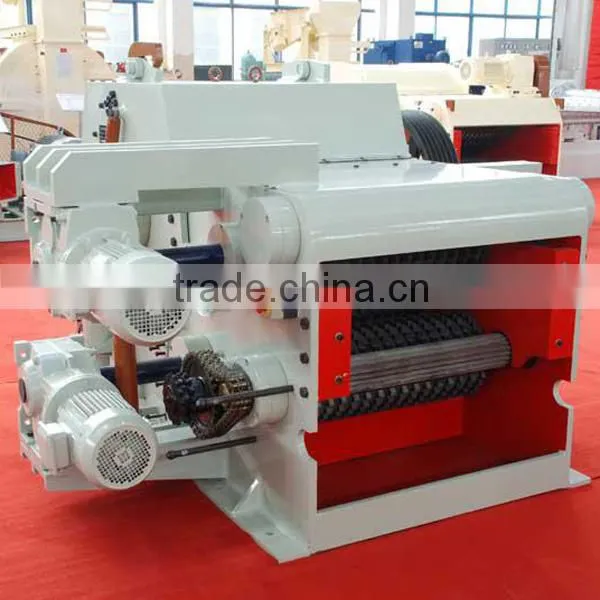

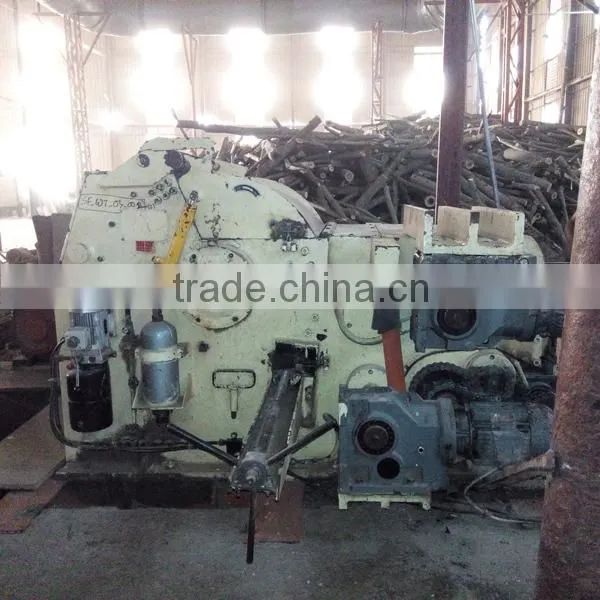

Brief introduction of Drum Chipper
Drum chipper is a special equipment for wood chip production, it is widely used in the wood particle board, fiberboard, paper& pulp industries and wood chip production bases for stock preparation. Small-scale drum chipper is also ideal for material preparation in laboratory.
With this machine, small diameter tree, log and woodworking residues (slab, lath, wood core and waste veneer), even non-wood fiber stems (jute, reed, bamboo) can be cut into dimensional chips which are dependent material for man-made board production.
The machine features in compact design, ease operation, high working capacity, uniform chip length. The drum chipper is more advance type of chipping machinery which is suitable for various raw materials.
We will provide:
1.Seller will send 1-2 technicians to guide the equipment installation and trial run.
2,The installation duration is about 25-30 days.
3.The construction of machine’s foundation support steel blocks.
4. The boiler and pipes & valves connected to the inlets/outlets of machine.
5.Hydraulic oil, thermal oil and fuel for boiler.
6.The necessary device, facilities and skilled worker for the installation and trial run.
7. Electric power, connected to main electric cabinet;
8 The necessary material such as impregnated paper, raw board etc.
9.The other relevant tools for the installation and trial run.
Company Information |
LINYI YOUMING MACHINERY MANUFACTURING CO.,LTD |
|
Location |
located at Lanshan district, Linyi City of Shandong province |
|
History |
Established since 1992, It has beening an aggressive enterprise which integrates woodworking researching,designing ,manufacturing, marketing |
|
Main products |
Particle board production line, Plywood production line MDF production line, Melamine veneer press Mould door equipment etc |
|
Achievement |
our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. |
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Linyi city, Shandong Province, China . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A:The main material are steels, oil cylinder and other. We can also choose material as customers’ requirement.
4.Q:How can I kown more about the press machine?
A: We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication
.
