sanding machine/MDF particle board sanding machine/sanding machine for plywood
- 10 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
Condition | New | Type | Sander | |
Place of Origin | Shandong, China | Brand Name | Youming | |
Model Number | YM-BSG | Voltage | 380 V | |
Dimension(L*W*H) | 3530*3500*2950mm | Weight | 24t | |
Certification | ISO 9001 | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
sanding machine / sanding machine for MDF HDF particle board /plywood sander

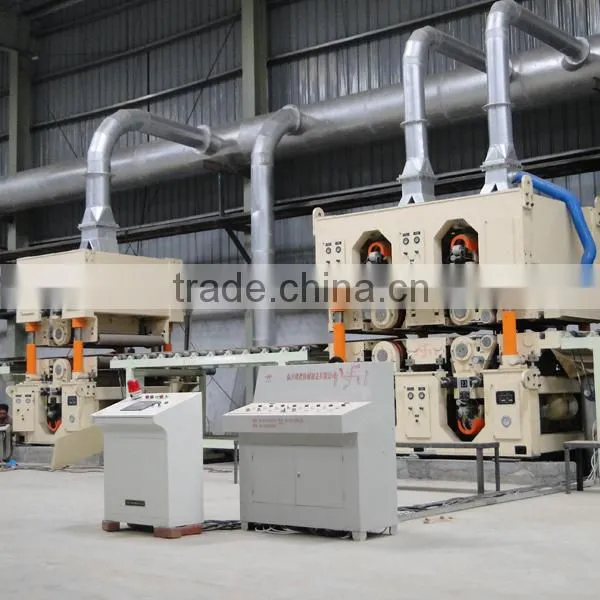

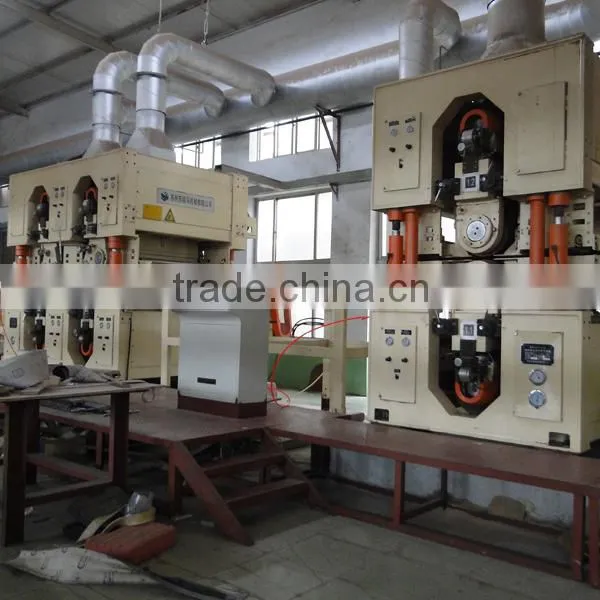

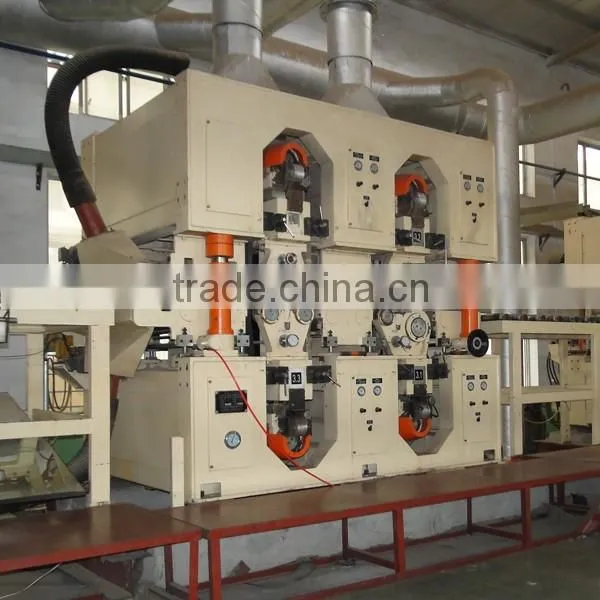

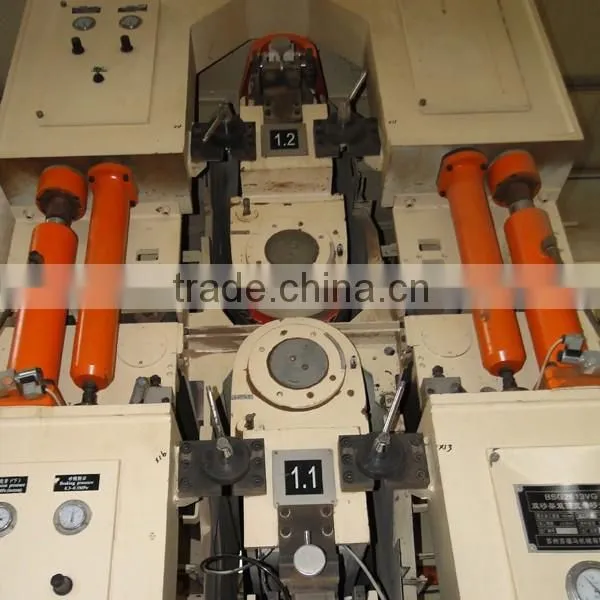

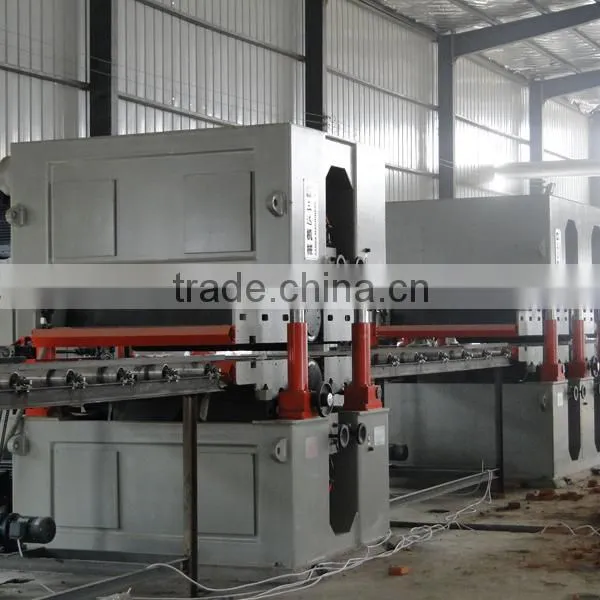

The BSG 4-Head Double Decks Wide Belt sanding machine for MDF HDF particle board/MDF HDF particleboard sander is an effective and strong-forced wide belt sanding machine, whose design is improved based on the feedback of using suggestion from customers and advanced technology imported from foreign countries. plywood sanding machine caters to the application of calibrating and finish sanding wood-based panel, such as particle board, middle-density fiber board, gypsum bonded particle board or other wood based and non wood-based panel. Make thickness precision and surface roughness of the abrasive artificial board according to a certain requirement. (Such as: the requirement of second process).
Sanding Machine: | |||
--Max processing width | 1300mm | --Workpieces thickness range | 3~200mm |
--Sanding capability | ~1.5mm | --Feeding speed | 4~35m/min |
--Belt linear speed | ~33,26m/s | --Processing precision | ±0.08mm |
--Coarse sanding head motor | 2X75kw and1480r/min | --Combination sanding head motor | 2X55kw and 1480r/min |
--Feeding motor | 11kw and 970r/min | --Cleaning discharge motor | 2x1.1kwand1400r/min |
--Upper frame sifting motor | 1.5kwand 1440r/min | --Belt dimension | 2800x1350mm |
--Compressed air pressure | 0.6MPa | --Compressed air consumption | ~7m3 |
--Wind blowing of vacuum cleaner | ~33000m/h | --Exterior dimension | 3530x3500x2950mm |
Plywood sanding machine
sanding machine for MDF HDF particle board/MDF HDF particleboard sander
We will provide:
1.Seller will send 1-2 technicians to guide the equipment installation and trial run.
2The installation duration is about 25-30 days.
3.The construction of machine’s foundation support steel blocks. 4. The boiler and pipes & valves connected to the inlets/outlets of machine.
5.Hydraulic oil, thermal oil and fuel for boiler.
6.The necessary device, facilities and skilled worker for the installation and trial run.
7. Electric power, connected to main electric cabinet;
8 The necessary material such as impregnated paper, raw board etc.
9.The other relevant tools for the installation and trial run.
Company | Linyi Youming Machinery Manufacturing Co.,Ltd |
Location | located at Lanshan district, Linyi City of Shandong province |
History | Established since 1992, It has beening an aggressive enterprise which integrates woodworking researching,designing ,manufacturing, marketing |
Main products | 1.Particle board production line, 2.Plywood production line 3.MDF production line, Melamine veneer press 4. sanding machine for MDF HDF particle board/MDF HDF particleboard sander |
Achievement | our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. |
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Linyi city, Shandong Province, China . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A:The main material are steels, oil cylinder and other. We can also choose material as customers’ requirement.
4.Q:How can I kown more about the press machine?
A: We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ZDHY, ISO9001 authentication.
