SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner

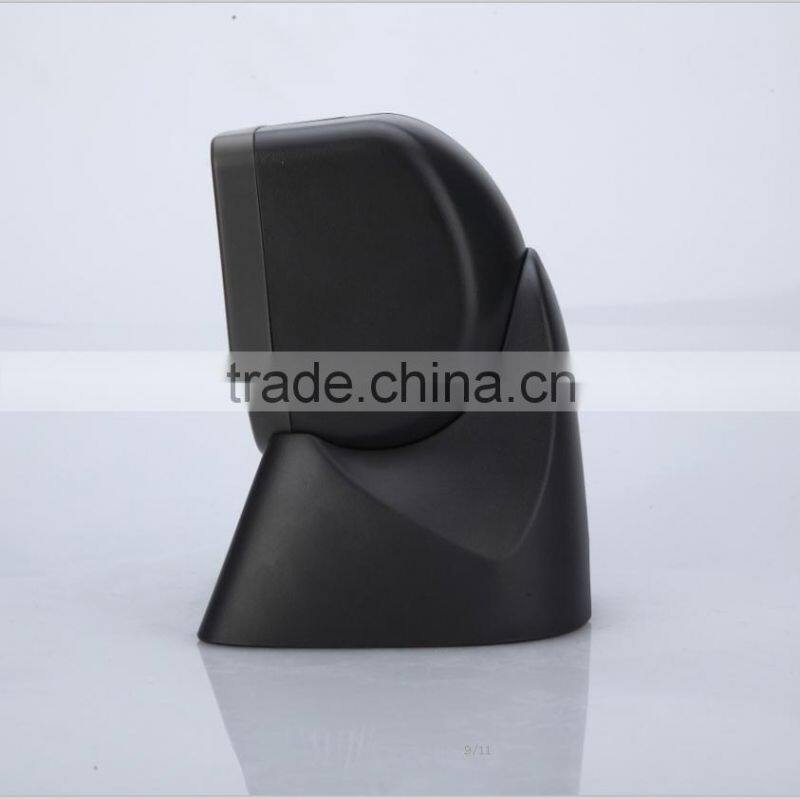

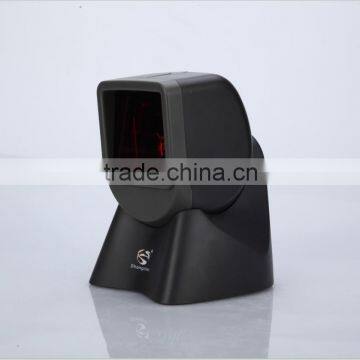

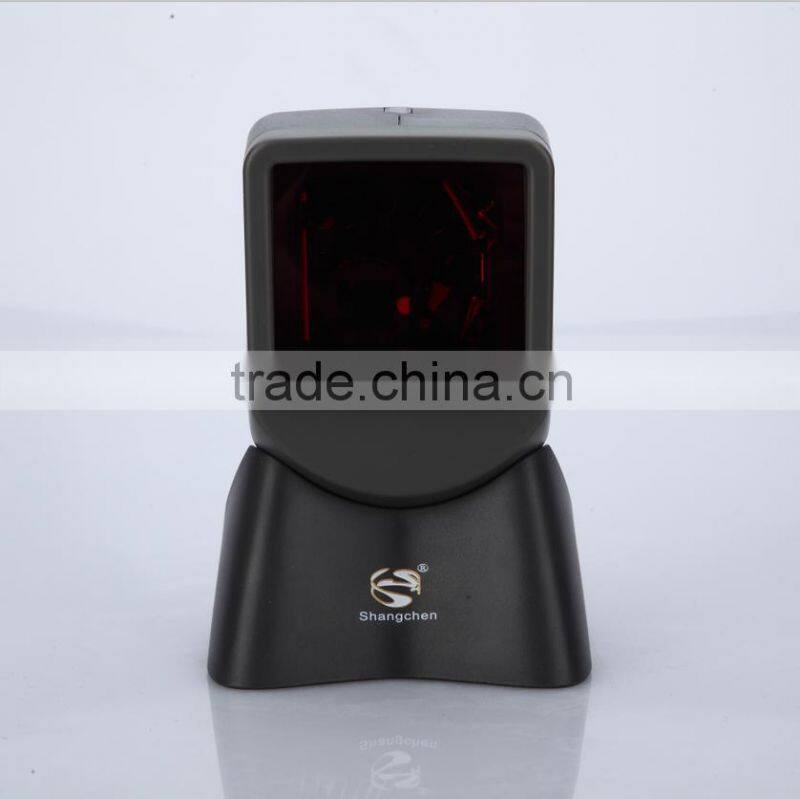

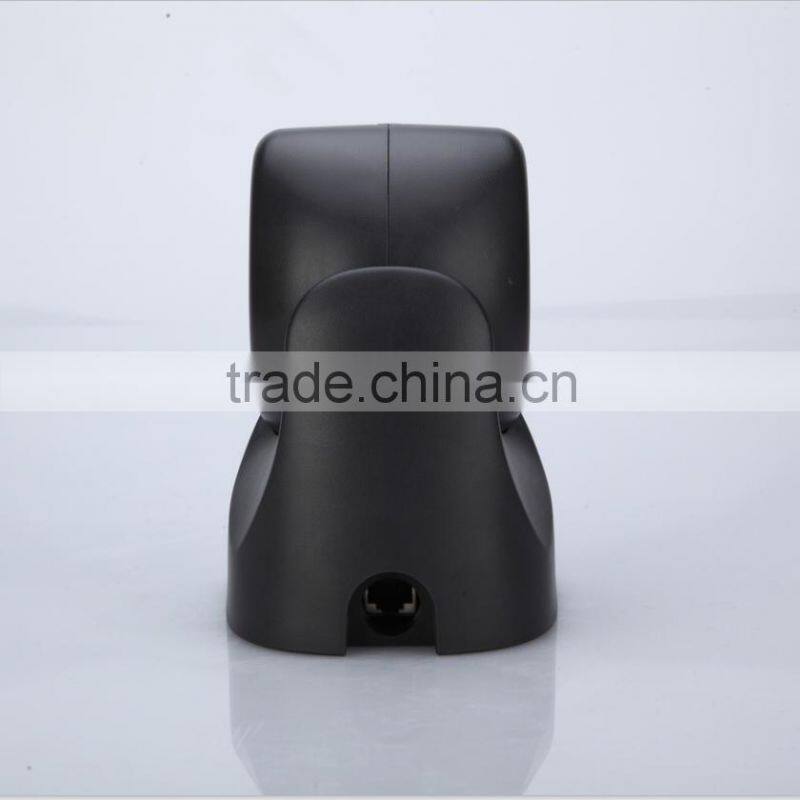

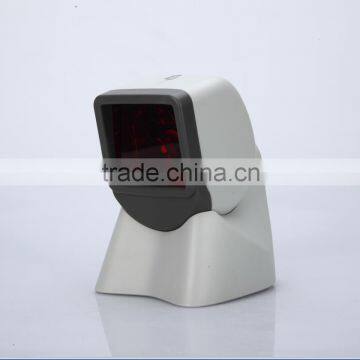

SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner photo-1
SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner photo-2
SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner photo-3
SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner photo-4
SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner photo-5
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Barcode Scanner, USB Handheld Barcode Scanner
Scan Element Type:
CMOS
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type Other, Barcode Scanner, USB Handheld Barcode Scanner
Scan Element Type CMOS
Colour Depth 32 Bit
Interface Type COM, PS/2, USB
Optical Resolution 5mil/0.127mm
Scan Speed 2000scans/sec
Brand Name Shangchen
Model Number SC-7190
Place of Origin Guangdong, China



Product Description

SC7190 is one of our omnidirectional scanners with compact size and excellent design, which could read the barcode in any direction and suitable for conditions that requires high decoding ability and performance. Its durability makes it ideal for any retail systems environment.



Features:

1. 6 directions scan field with 24 scan lines and 2000 scans per second;

2. Reading all 1D standard barcodes, includes GS1 Databar;

3. Its high decoding ability make it easy for reading of damaged and substandard barcodes;

4. Automatic sleep and wake-up mode which saves power and improve the life time;

5. Compact size which is customers best choice for OEM project





Specifications

Scan Performance

Scan Mode

All direction , 24 lines (Automatic continuous scanning)

Indicator

Beeper and LED (stand by red, good read green)

Read Rate

2000 scans/sec

Rotate Camera

1±36°

Transfer Rate

RS232baudrate: 2400-38400

Resolution

5mil

Depth of Field

up to 230mm @ 13mil

Light Source

650nm ± 10nm visible laser diode

Print contrast

Above 30% Black

Interface

USB-HID,USB-UART,PS/2,RS232

Decode Type

UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN, Code39, CODABAR



Interleaved 2 of 5Industrial 2 of 5Chinese 2 of 5, Code128,  Code93,



Code11 MSI/PIESSEY, UK/PLESSE,UCC/EAN128, China Postage

Electrical

Input Voltage

+5V DC, 250mA

Output

1.25Watt

Power Source

Keyboard wedge, Rs-232 or USB from host system

Dustproof and waterproof

IP54

Illumination

Max4800LUX

Environmental

Operating Temperature

0°C ~ 40°C

Storage Temperature

-10°C ~ 60°C

Humidity

20% ~ 95% RH (non-condensing)

Drop

1.2m drops on the concrete surface

Mechanical

Dimensions

112mmL x 102mmW x 147mmH

Weight

Average 360g

Color

White,  Black

Cable

2m

Other

Language

Support multiple kinds of language

Interface Type

RJ-45

Accessories: Scanner, Manual, Cable, Neutral Packing Box



Detailed Photos

 SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode ScannerSC-7190 Qualified 1D Omnidirectional USB Handheld Barcode ScannerSC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner

Packaging & Shipping

Individual Package: 1pc/box

Packed Size: 23*15*13.5cm

Packed Weight: 0.7kg



Outer Carton: 20pcs/carton

Packed Size: 68.5cmx47.5cmx33cm

Packed Weight: 15kg



Why Us

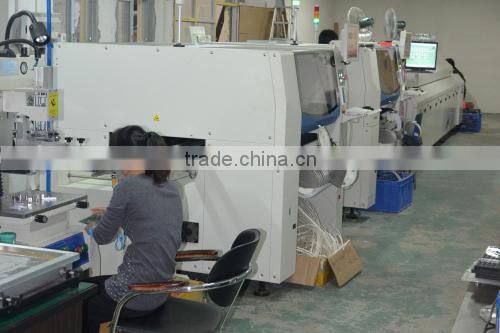

SMT Department

SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner

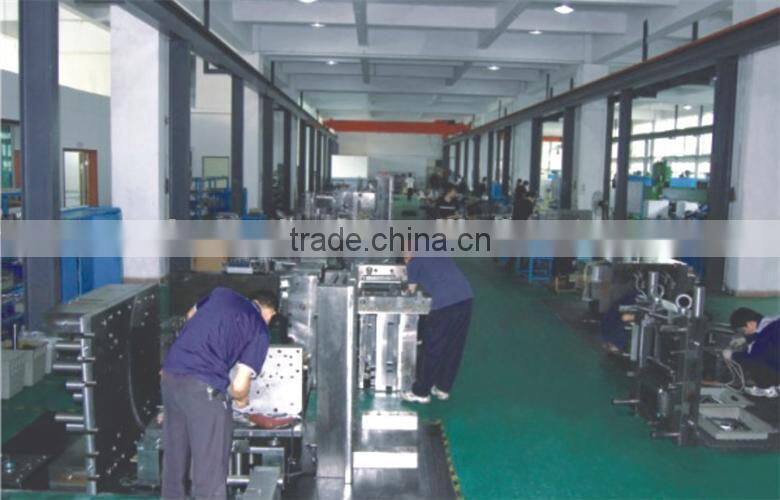

Mold Department

SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner

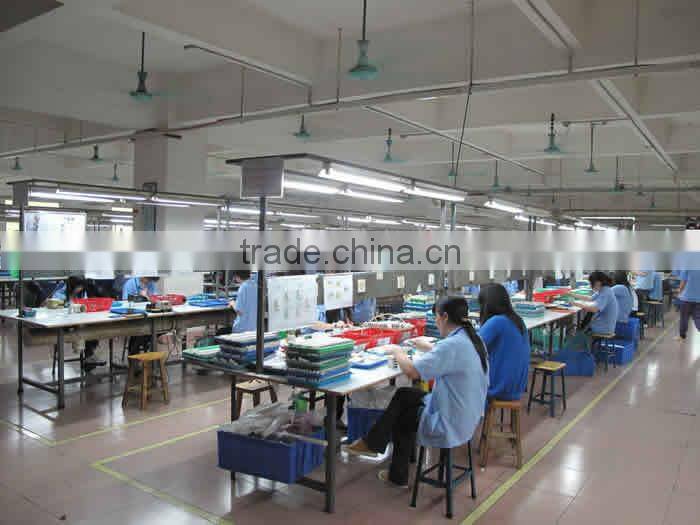

Workshop

SC-7190 Qualified 1D Omnidirectional USB Handheld Barcode Scanner

1.Cost Control - Good control of cost, would be able to provide you most competitive price.

2.Quality Control - Products passed CE,FCC,RoHs certifications.

3.Customer Service -We will reply your email or question within 24 hours.

4.Fast Delivery Time - 7 to 20 days upon order requirement.



FAQ

1. OEM project is possible or not?

Yes, OEM project is welcomed.



2. How about the minimum order quantity?

Normally minimum order quantity is 100pcs/item.



3. Is that possible to silk customers' logo on products?

Yes, it is possible, and we will require the quantity is more than 200pcs.



4. How long will be the Warranty?

Normally we provide our products with 1 year warranty, it could be longer as well. However, price will be different when warranty period is longer.



5. Would you provide the RMA to custoemrs?

Yes, we will provide 1% free RMA to our customers.

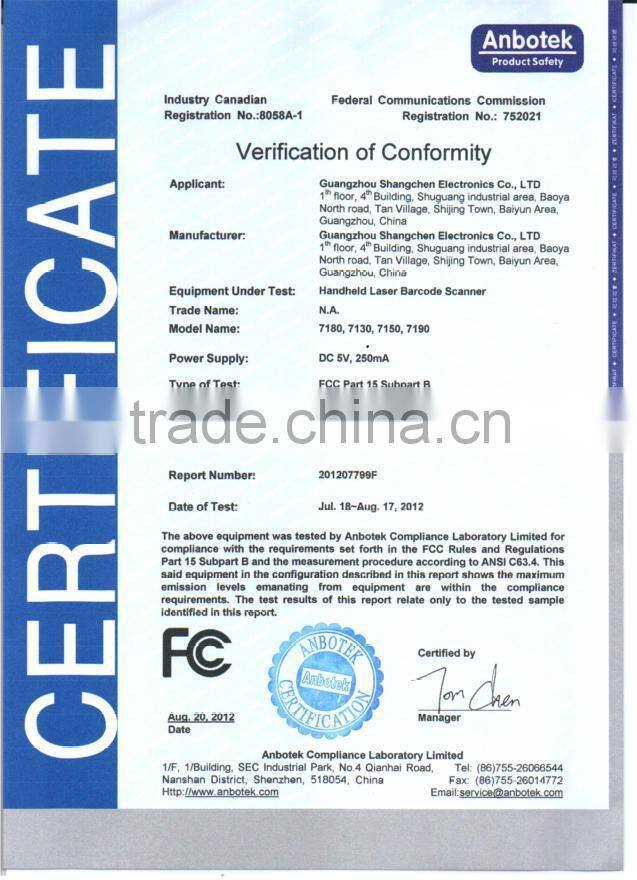

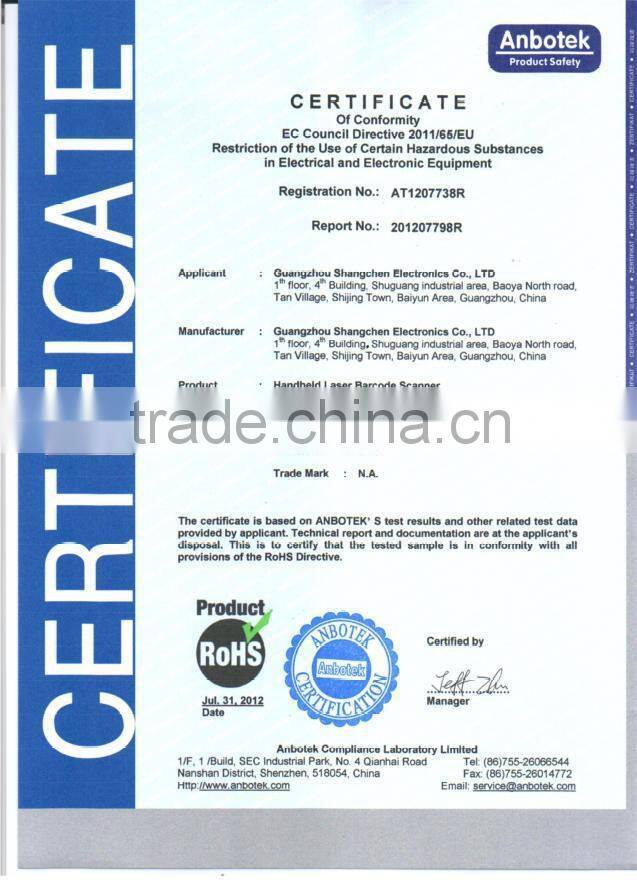

Certifications
