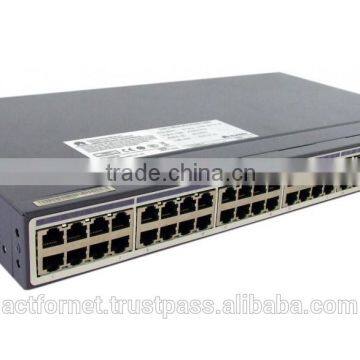

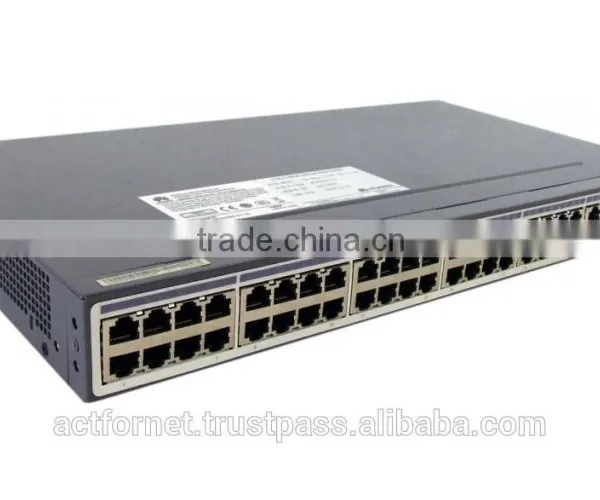

Huawei S3700-52P-PWR-SI switch

Name: Huawei S3700-52P-PWR-SI switch
Brand: Huawei
Availability: InStock

FOB Price

USD $2,200 - $2,800 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port HongKong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Ports	Other, ≥ 48
Transmission Rate	10/100/1000Mbps	Function	LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode	Full-Duplex	Brand Name	Huawei
Model Number	S3700-52P-PWR-SI	Place of Origin	Guangdong, China

Product Description

S3700-52P-PWR-SI(48 Ethernet 10/100 PoE+ ports,4 Gig SFP,with 500W AC power supply)

1. Next-generation energy-saving Layer 3 switches

2. Multi-VPN-Instance CE(MCE)

3. IPv6 routing protocols: RIPng, OSPFv3

4. iStack intelligent stacking

5. Rapid Ring Protection Protocol(RRPP) and Smart Ethernet Protection(SEP)

6. Bidirectional Forwarding Detection(BFD)

7. Next-generation energy-saving Layer 3 switches

8. POE+, Two Power Modules

Introduction

For Fast Ethernet switching over twisted-pair copper, Huawei’s S3700 Series combines proven reliability with robust routing, security, and management features in a compact, energy-efficient switch.

Flexible VLAN deployment, PoE capabilities, comprehensive routing functions, and capability to migrate to an IPv6 network help enterprise customers build next-generation IT networks.
Choose Standard (SI) models for L2 and basic L3 switching; Enhanced (EI) models support IP multicasting and more complex routing protocols (OSPF, IS-IS, BGP).

Specification

Item	S3700-SI*	S3700-EI*
Ports description	S3700-28TP-EI*/S3700-28TP-SI/S3700-28TP-PWR-SI/S3700-28TP-PWR-EI/S3700-28TP-EI-MC: 2410/100Base-TX S3700-52P-EI/S3700-52P-SI/S3700-52P-PWR-EI/S3700-52P-PWR-SI: 4810/100Base-T S3700-28TP-EI-24S: 24100Base-FX S3700-52P-EI-24S: 2410/100Base-T+24100Base-FX S3700-52P-EI-48S: 48*100Base-FX
Ports description	SI/EI 28 ports: 21000Base-X, 2GE Combo SI/EI 52 ports: 2100/1000Base-X, 21000Base-X
MAC address table	IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs, voice VLAN, and super VLAN MUX VLAN and GVRP VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping
Reliability	RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection Smart Ethernet Protection (SEP)
Reliability	N/A	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP routing	Static routing, RIPv1, RIPv2, and ECMP
IP routing	N/A	OSPF, IS-IS, and BGP
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	1 K multicast groups IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
Multicast	N/A	IGMP v1/v2/v3, PIM-SM, PIM-DM and PIM-SSM
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist
Surge protection	6KV surge protection capability on service ports (1KV on service ports on PoE devices)
Management and maintenance	iStack MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMPv1/v2/v3 and RMON Web NMS
Operating environment	Operating temperature: 0℃–50℃(long term); Relative humidity: 10%–90% (non-condensing)
Power supply	AC: Rated voltage range: 100V to 240V AC; 50/60 Hz Maximum voltage range: 90V to 264V AC; 50/60 Hz DC: Rated voltage range: –48V to –60V DC Maximum voltage range: –36V to –72V DC Note: PoE-support switches do not use DC power supplies.
Dimensions (W x D x H)	S3700-28TP-EI/SI, S3700-28TP-EI-MC, S3700-28TP-EI-24S, S3700-52P-EI/SI: 442 mm x 220 mm x 43.6 mm S3700-28TP-PWR-EI/SI, S3700-52P-EI-48S, S3700-52P-EI-24S, S3700-52P-PWR-EI/SI: 442 mm x 420 mm x 43.6 mm
Weight	S3700-28TP-SI<2.5Kg S3700-52P-SI<3Kg S3700-28TP-PWR-SI<4Kg (without power supply) S3700-52P-PWR-SI<4.3Kg (without power supply)	S3700-28TP-EI<2.5Kg S3700-28TP-EI-MC<2.5Kg S3700-28TP-EI-24S<2.6Kg S3700-52P-EI<3Kg S3700-52P-EI-24S<4.8Kg S3700-52P-EI-48S<4.8Kg S3700-28TP-PWR-EI<4Kg (without power supply) S3700-52P-PWR-EI< 4.3Kg (without power supply)
Power consumption	S3700-28TP-SI<20W S3700-52P-SI<38W S3700-28TP-PWR-SI<818W (PoE: 740W) S3700-52P-PWR-SI<880W (PoE: 740W)	S3700-28TP-EI<20W S3700-28TP-EI-MC<20W S3700-28TP-EI-24S<52W S3700-52P-EI<38W S3700-52P-EI-24S<65W S3700-52P-EI-48S<90W S3700-28TP-PWR-EI<818W (PoE: 740W) S3700-52P-PWR-EI<880W (PoE: 740W)
