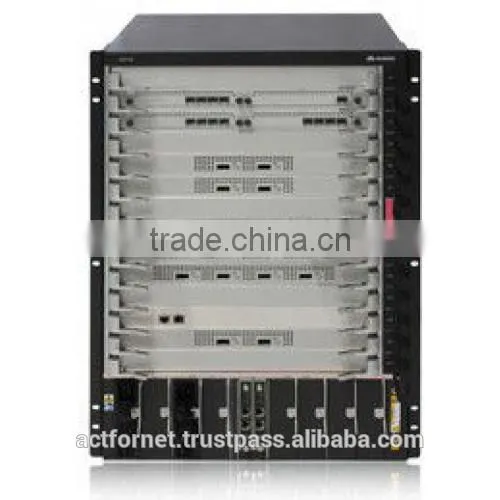

Huawei S9712 Assembly Chassis-sustain FCC

Huawei S9712 Assembly Chassis-sustain FCC thumbnail-1
Huawei S9712 Assembly Chassis-sustain FCC photo-1
US$ 5,999 - 7,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≥ 48
Transmission Rate:
Other, 10G
Contact Supplier Request Quote Chat Now
ActForNet Technologies Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≥ 48
Transmission Rate Other, 10G
Function LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode Full-Duplex
Switch Capacity 18.56 Tbit/s
Brand Name Huawei
Model Number EH1BS9712E00
Place of Origin Guangdong, China

S9712 Assembly Chassis

The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to provide service aggregation
1. Up to 240*10GbE, 48*40GbE
2. Innovative Cluster Switching System(CSS)
3. Hardware BFD/Ethernet OAM
4. Built-in AC, integrated wired and wireless solution
5. Compact-chassis design

Introduction

S9700 Switches provide L2/L3 switching and rich network services such as MPLS VPN, hardware IPv6, cloud desktop, video conferencing, and wireless communications. Non-stop forwarding, hardware OAM/BFD, ring network protection, and in-service software upgrades maximize uptime availability and reduce Total Cost of Ownership (TCO).

Excellent choice for stable 100 GE networking.



Super Virtual Fabric (SVF) technology virtualizes fixed switches into line cards, APs into ports, transforming a physical network of core, aggregation and access switches, and APs, into a “super switch” to simplify network management.


Cluster Switch System (CSS) virtualizes multiple physical switches into one logical device to provide higher reliability, switching efficiency, and flexibility, as well as simplified management.


Upgrades to an SDN-ready agile switch with an X1E card, equipped with Huawei’s exclusive Ethernet Network Processor (ENP) and Packet Conservation Algorithm for Internet (iPCA) that measures network quality in real time by adding marks on service packets.


Supports board upgrade to provide native wireless ACs

Product Specifications



Item S9703 S9706 S9712
Switching capacity 2.88/5.76 Tbit/s 6.72/14.72 Tbit/s 8.64/18.56 Tbit/s
Packet forwarding rate 2160 Mpps 2880/5040 Mpps 3840/6480 Mpps
Service slots 3 6 12
Wireless network management Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic management
Basic WLAN services, QoS, security, and user management
Deployment of ACs on different network layers
User management unified user management
802.1x, MAC address, and Portal authentication
Traffic- and time-based accounting
User authorization based on user groups, domains, and time ranges
VLAN Supports adding access, trunk, and hybrid interfaces to VLANs
Supports the default VLAN
Supports VLAN switching
Supports QinQ and selective QinQ
Supports MAC address-based VLAN assignment
MAC address Supports automatic learning and aging of MAC addresses
Supports static, dynamic, and blackhole MAC address entries
Supports packet filtering based on source MAC addresses
Supports MAC address limiting based on ports and VLANs
STP/ERPS Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
Supports BPDU protection, root protection, and loop protection
Supports BPDU tunnel
ERPS (G.8032)
IP routing Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
Supports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+
Multicast Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
Supports PIM-SM, PIM-DM, PIM-SSM
Supports MSDP, MBGP
Supports prompt leave
Supports multicast traffic control
Supports multicast querier
Supports suppression on multicast packets
Supports multicast CAC
Supports multicast ACL
MPLS Supports basic MPLS functions
Supports MPLS OAM
Supports MPLS TE
Supports MPLS VPN/VLL/VPLS
Reliability Supports LACP and E-Trunk
Supports VRRP and BFD for VRRP
Supports BFD for BGP/IS-IS/OSPF/static route
Supports NSF, and GR for BGP/IS-IS/OSPF/LDP
Supports TE FRR and IP FRR
Supports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)
Supports ITU-Y.1731
Supports DLDP
Supports In-Service Software Upgrade (ISSU)
QoS Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Supports actions of ACL, CAR, re-mark, and schedule
Supports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, and SP+DRR
Supports congestion avoidance mechanisms, such as WRED and tail drop
Supports H-QoS
Supports traffic shaping
Configuration and maintenance Supports console, telnet, and SSH terminals
Supports the network management protocols, such as SNMPv1/v2/v3
Supports file uploading and downloading using FTP and TFTP
Supports BootROM upgrade and remote upgrade
Supports hot patches
Supports user operation logs
Security and management Supports 802.1x authentication and Portal authentication
Supports NAC
Supports RADIUS and HWTACACS authentication for login users
Supports command line authority control based on user levels, preventing unauthorized users from using commands
Supports defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
Supports 1K CPU queues
Supports ping and traceroute functions based on ICMP packets
Supports remote network monitoring
Value-added services Supports firewall
Supports NAT
Supports NetStream
Supports IPSec
Supports load balancing
Supports wireless AC
Supports IPS
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Energy saving Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions (W x D x H) 442 mm × 476 mm × 175 mm 442 mm × 476 mm × 442 mm 442 mm × 476 mm × 664 mm
Chassis weight (empty) < 15 kg < 30 kg < 45 kg
Operating voltage DC: –38.4 V to –72 V AC: 90 V to 290V
Power supply capability of the equipment 2200W 4400W 6600W
