Huawei DH321 V2

Huawei DH321 V2 thumbnail-1
Huawei DH321 V2 photo-1
US$ 1,176 - 1,176 MOQ: 2 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Rack
Max Memory Capacity:
Other, ≥ 64GB
Contact Supplier Request Quote Chat Now
ActForNet Technologies Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Rack
Max Memory Capacity Other, ≥ 64GB
Max Processors 2
Processor Main Frequency 3.3GHz
Processor Type Intel Xeon
Brand Name Huawei
Model Number BC21RCSCC0
Place of Origin Guangdong, China

DH321 V2 (Double EP CPU Half Width EP Server Node, 16*DIMM, 2*HDD,2208RAID, Front PCIEX8*1)

Part Information:
Part Number:03030WJN
Model:BC21RCSCC0
Description: DH321 V2(Double EP CPU Half Width EP Server Node,16*DIMM,2*HDD,2208RAID,Front PCIEX8*1)

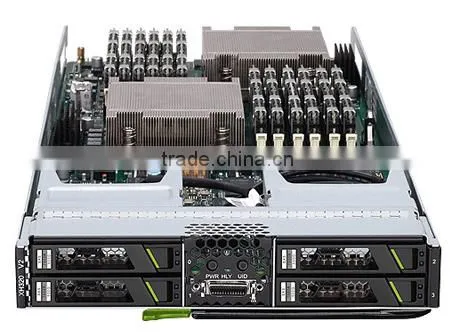

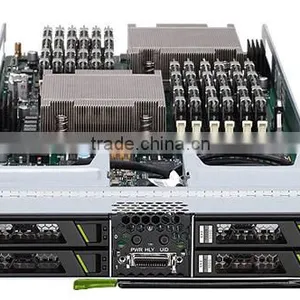

A half-width, 2-socket server node for Huawei’s X6000 high-density server.

Features

High computing density

Rich server node options

  • The X6000 provides four half-width server nodes and one full-width server node. The server nodes support Intel® Xeon® E3-1200 v2 series, Intel® Xeon® E5-2400/E5-2600 series, and Intel® Xeon® E5-2400/E5-2600 v2 series, ensuring optimal performance based on service requirements.
  • The X6000 also offers options for customized server nodes, as needed.

Excellent energy efficiency and control

  • The 80 Plus® Platinum PSUs provide up to 94% power efficiency under a 50% load, which reduces power losses and optimizes power utilization.
  • The X6000 comes with highly efficient fan modules and an optimized cooling architecture that isolates power air ducts from server nodes, increasing cooling efficiency and reducing energy consumption.
  • The X6000 uses various energy-saving technologies, such as fan speed control by location, intelligent fan speed adjustment, and intelligent CPU frequency adjustment, which further reduce power consumption. In combination, these features offer a green, energy-saving solution.



Specifications

Specifications  DH321 V2

Form Factor

Half-width, 2-socket server node

Number of Processors

1 or 2

Processor

Intel® Xeon® E5-2600/E5-2600 v2 series processors

Memory

16 DDR3 DIMMs

Internal Storage

2 x 2.5-inch SAS/SATA HDDs or SSDs

LOM Network Ports

2 GE ports

PCIe Expansion

1 PCIe slot

Management

Built-in iBMC:

  • IPMI, SOL, KVM over IP, and virtual media
  • One 10/100M RJ45 management network port

Operating Systems Supported
  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • Citrix XenServer
  • VMware

Operating Temperature

5ºC to 35ºC (41ºF to 95ºF)



Comparison

Vendor Product Description Huawei Advantages
HUAWEI X6000 2U, 2/4 Nodes: XH320 V2, XH321 V2, XH621 V2, DH321 V2
DELL C6220 II CPUs:4 x E5-2600 v2,DIMMs:16,HDDs:24 x 2.5" or 12 x 3.5" hard drive options XH321 V2 supports More USB ports
DELL C8220 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs: 2x2.5" non hot-plug XH321 V2 supports higher local storage and more USB ports
DELL C8220X CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:2 x 2.5" hot-plug hard drives + 8 x 2.5" or 4 x 3.5" non-hot-plug hard drive options; 2 x 2.5" non-hot-plug hard drives XH321 V2 supports higher local storage and more USB ports
FUJITSU CX250 S2 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:6x 2.5-inch or 3x 3.5-inch in CX400 S2 Both the XH620 V2 and the XH621 V2 can support more DIMM slots
FUJITSU CX270 S2 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:4 x 2.5-inch or 3x 3.5-inch in CX400 S2 Both the XH620 V2 and the XH621 V2 can support more DIMM slots
FUJITSU CX272 S1 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:6x 2.5-inch or 6x 3.5-inch local in CX420 S1 Both the XH620 V2 and the XH621 V2 can support more DIMM slots
HP SL210T GEN8 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:6 x 2.5"HDDs or 3 x 3.5" HDDs Both the XH620 V2 and the XH621 V2 can support more DIMM slots
HP SL230S GEN8 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:4 x SFF SAS/SATA/SSD and/or 2 x LFF SAS/SATA and/or SFF Both the XH620 V2 and the XH621 V2 can support more DIMM slots
HP SL250S GEN8 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:8 x SFF SAS/SATA Both the XH620 V2 and the XH621 V2 can support more DIMM slots
HP SL270S GEN8 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:8 x SFF SAS/SATA/SSD Both the XH620 V2 and the XH621 V2 can support more DIMM slots
IBM DX360 M4 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:1 x 3.5‘’, 2 x 2.5‘’ SAS/SATA or 4 x 1.8‘’ SSDs Both the XH620 V2 and the XH621 V2 can support more DIMM slots, hard disks, and PCIe slots than the DX360 M4.
IBM NEXTSCALE CPUs:2 x E5-2600 v2,DIMMs:8,HDDs:1 x 3.5‘’, 2 x 2.5‘’ SAS/SATA or 4 x 1.8‘’ SSDs Both the XH620 V2 and the XH621 V2 can support more DIMM slots, hard disks, and PCIe slots than the DX360 M4.
IBM NEXTSCALE NX360 M4 CPUs:2 x E5-2600 v2,DIMMs:8,HDDs:1 x 3.5", 2 x 2.5" SAS/SATA or 4 x 1.8" SSDs Both XH620 V2 and XH621 V2 can support more DIMM slots
INSPUR SA5248 CPUs:2 x E5-2400,DIMMs:12,HDDs:6 x 2.5" HDDs More server nodes
Server node maintenance from the front
Independent air channels for PSUs
More cost-effective platform
More PSU options
INSPUR SA5248L CPUs:2 x E5-2600,DIMMs:8,HDDs:6 x 2.5" HDDs More server nodes
Server node maintenance from the front
Independent air channels for PSUs
More cost-effective platform
More PSU options
LENOVO SD210X4 CPUs:1 x X3440,DIMMs:4,HDDs:1 x 3.5" SATA (Non-Hot Plug) More server nodes;Energy efficiency
LENOVO SD330 CPUs:2 x E5-2400,DIMMs:12,HDDs:4 x 2.5" SAS More server nodes;Energy efficiency
SUGON I620-T12 CPUs:2 x E5-2600 v2,DIMMs:16,HDDs:6 x 2.5" HDDs Server node maintenance from the front
Independent air channels for PSUs
More cost-effective platform
More PSU options
SUGON I620R-T CPUs:2 x E5-2600 v2,DIMMs:8,HDDs:6 x 2.5"HDDs Server node maintenance from the front
Independent air channels for PSUs
More cost-effective platform
More PSU options
SUPERCLOUD R6220-G9 CPUs:2 x E5-2600,DIMMs:8,HDDs:6 x 3.5"/2.5" HDDs High performance;More server nodes
SUPERCLOUD R6240-G9 CPUs:2 x E5-2600,DIMMs:8,HDDs:6 x 2.5"HDDs or 3 x 3.5" HDDs More server nodes;
Energy efficiency;
Easy to deploy and maintain
