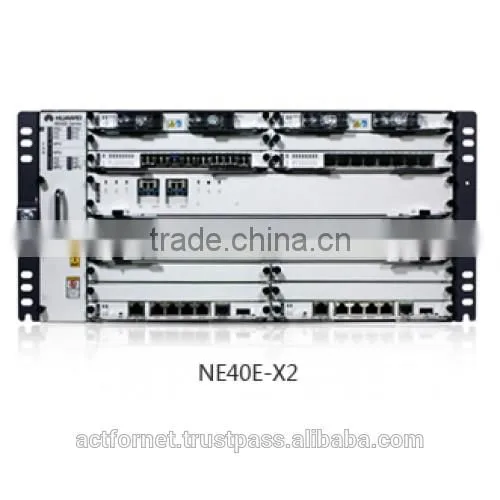

NE40E-X2 Typical Configuration (Basic Configuration+Single NPUI+16*GE+16*FE(Electric))

NE40E-X2 Typical Configuration (Basic Configuration+Single NPUI+16*GE+16*FE(Electric)) thumbnail-1
NE40E-X2 Typical Configuration (Basic Configuration+Single NPUI+16*GE+16*FE(Electric)) photo-1
US$ 32,000 - 36,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
ActForNet Technologies Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function Firewall, QoS, VPN, Other, Firewall, QoS, VPN, WiFi
LAN Ports Other, modular
WAN Ports Other, modular
Brand Name HUAWEI
Model Number NE40E-X2
Place of Origin Guangdong, China

NE40E-X2 Typical Configuration (Basic Configuration+Single NPUI+16*GE+16*FE(Electric))

The NE40E-X1/X2 Universal Service Router is used to provide Ethernet services access in metro areas. The NE40E-X1/X2 is the smallest member of the NE40E family.
The NE40E-X1/X2 focuses on DSLAM, MSAN, enterprise and BTS aggregation, and is the most cost-effective small UPE in the industry. The NE40E-X1/X2 supports 20/40G capacity, and a rich set of interface types. At only 220mm deep, the NE40E-X1/X2 is extremely compact and can be installed in the same rack with access equipment. Additional features include carrier-class reliability, powerful L3 functions, advanced QoS features, and industry leading 1588v2 clock synchronization features.

Characteristics

Extremely Large Capacity Line Card

The NE40E can support maximum 480G Line Card, which fulfills with the increased network requirements of customers. The powerful 480G line card can support both 100GE and 10GE port types, which can provide customer a flexible configuration. Excelling by the developed chipset technology and fine design technique, NE40E must provide sustainable high bandwidth capacity in the future.

Energy Saving Design

The NE40E uses Huawei-developed Solar chips, which are reliable and secure. It can dynamically allocate and manage multi-core NP resources and automatically disable redundant or unused ports, buses, and chips. The NE40E also supports dynamic frequency adjustment and intelligent fan speed adjustment, which significantly reduces power consumption, with less than 1 W for each gigabit, lowest in the industry.

Future-Oriented IPv6-Compatible Solutions

The NE40E supports a variety of IPv6 features including IPv6 leased line, dual stack, tunneling, and translation. The NE40E supports Next Hop Separation to optimize the IPv6 convergence time and , supports larger IPv6 FIB and CGN card of 160G throughput to improve the scalability. All of them help to provide comprehensive solutions based on the high performance for transition from IPv6 to IPv4. And owing to the variety of technologies and different situations of provider networks, each provider will certainly select a conservative, reposeful, or aggressive transition technology that is the most suitable for its own network.

All-Round Reliability Solution

The NE40E provides reliability protection at different levels, including the equipment level, network level, and service level. The NE40E can provide a multi-level reliability solution that completely meets the reliability requirements of different services. The NE40E lays the foundation for enterprise services with a system availability of 99.999%.

The following describes the reliability protection levels that the NE40E provides:

  • Equipment-level reliability
    The NE40E provides redundancy backup for key components. These key components support hot swapping and hot backup. The NE40E also uses technologies, such as non-stop routing (NSR), non-stop forwarding (NSF), and in-service software upgrade (ISSU), to ensure uninterrupted service forwarding. The NE40E supports packet buffering of 200 ms, ensuring no packet loss in the case of burst traffic. This guarantees high-quality service experience of users.
  • Network-level reliability
    The NE40E uses the following technologies to provide network-level reliability: IP fast reroute (FRR), Label Distribution Protocol (LDP) FRR, VPN FRR, TE FRR, hot standby, fast convergence of Interior Gateway Protocols (IGP), BGP, and multicast routes, Virtual Router Redundancy Protocol (VRRP), Rapid Ring Protection Protocol (RRPP), trunk load balancing and backup, hardware-based Bidirectional Forwarding Detection (BFD) of 3.3 ms, MPLS OAM, Ethernet OAM, and routing protocol/port/VLAN damping. The NE40E provides an end-to-end protection with no service interruption.
  • Service-level reliability
    The NE40E uses the following technologies to provide service-level reliability for L2VPNs and L3VPNs: VPN FRR, E-VRRP, VLL FRR, Ethernet OAM, Y.1731, PW redundancy, E-Trunk, and E-Automatic Protection Switching (APS) These technologies ensure stable and reliable service operation with no service interruption.

Enhanced Metro Ethernet Features

Based on the mature Versatile Routing Platform (VRP), the NE40E excels in reliability, expansibility, and maintainability. It supports various features to satisfied the multi services carried requirement including Hierarchical Virtual Private LAN Service (HVPLS), Virtual Leased Line (VLL), Layer 2 VPN (L2VPN), Layer 3 VPN (L3VPN), multicast VPN, 802.1Q-in-802.1Q (QinQ), Virtual Local Area Network (VLAN) mapping, Dynamic Host Configuration Protocol (DHCP) relay/snooping, IPSec,NAT and GRE. NE40E supports Protocol Independent Multicast-Source Specific Multicast (PIM-SSM), Internet Group Membership Protocol Version 3 (IGMPv3), and MAC+IP+VLAN user binding. On the high-reliability MANs based on the NE40E, ISP can provide Internet Protocol Television (IPTV) services, family multi-play services, IP leased line services, enterprise interconnection services, and enterprise VPN services.

In addition, the NE40E supports comprehensive Ethernet clock synchronization, which well satisfies the requirements for IP network used in electricity and transportation enterprise.

Enhanced User Management Functions

The NE40E provides Multi Service Edge (MSE) features to manage and control DHCP/IP over Ethernet (IPoE)/leased line access users. The MSE mainly provides dynamic user access, user management, and user-based authentication, accounting, and QoS scheduling. In addition, the MSE implements Bandwidth on Demand (BoD) for different services of enterprise users and for DHCP individual users and changes the unified charging mode to the charging mode based on value-added services, which implements usercentered refined service operation.

Efficient OAM features

NE40E support Ethernet OAM fault management including: Ethernet in the First Mile OAM (EFM OAM), conforming to IEEE 802.3ah and Connectivity Fault Management OAM (CFM OAM), conforming to IEEE 802.1ag.

Conforming to ITU-T Y.1731, the NE40E supports performance management to measure the delay, jitter, and packet loss ratio when the messages are transmitted. In this manner, the NE40E can detect the end-to-end performance of traffic in a specified time period and on a specified network segment.

Cooperating with performance management tools such as U2000, NE40E can provide SDH like network OAM, service oriented, intelligent warning, and refined positioning. With supporting efficient and precise performance measurement and test technologies such as IP FPM, TWAMP, RFC2544, G.8032, NE40E can help to simplify the OAM and save the OPEX to a great extend. Besides, the ISP can monitor the network status in real time through the NMS. The ISP then check whether the forwarding capacity of the network complies with the Service Level Agreement (SLA) signed with users and locate faults. The ISP does not need to carry out detection on the user side, which greatly decreases maintenance costs.


Specifications

Attribute NE40E-X1 NE40E-X2
Backplane Capacity 285 Gbps 450 Gbps
Port Capacity 20 Gbps 40 Gbps
Forwarding Performance 30 Mpps 60 Mpps
Number of Slots 1 for NPU, 2 for MPUs, 4 for FICs 2 for NPU, 2 for MPUs, 8 for FICs
Dimension (W×D×H) 442mm × 220mm × 132mm (3 U) 442mm × 220mm × 222mm (5 U)
Maximum power consumption 480 W 850 W
Weight in full configuration 14 kg 22 kg
Interface type Channelized STM-1 (to E1)
10GE-WAN/LAN
GE/FE
E1 (75/ 120ohm)
IPv4 Supports the static routing protocol and IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP-4.
IPv6 Supports various technologies for transition from IPv4 to IPv6: manual tunnel configurations, automatic tunnel configurations, IPv6-to-IPv4 (6-to-4) tunneling, Generic Routing Encapsulation (GRE) tunneling, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunneling.
Supports IPv4 over IPv6 tunneling and IPv6 Provider Edge Router (6PE).
Supports the IPv6 static routing protocol.
Supports IPv6 dynamic routing protocols such as RIP Next Generation (RIPng), OSPFv3, IS-ISv6, and BGP4+.
Supports IPv6 neighbor discovery and path Maximum Transmission Unit (PMTU) discovery.
Supports Transmission Control Protocol Version 6 (TCP6), ping IPv6, traceroute IPv6, socket IPv6, static IPv6 Domain Name System (DNS), specifying the IPv6 DNS server, Trivial File Transfer Protocol (TFTP) IPv6 client, and IPv6 policy-based routing.
Supports Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB.
MPLS Supports LDP over TE, VPLS, H-VPLS, policy-based routing in VPN.
Supports MPLS L2VPNs in either Martini or Kompella mode.
Supports VLL/VPLS access L3VPNs.
Supports QinQ, MPLS/BGP L3VPN, and inter-AS VPN Option A/B/C.
Supports Asynchronous Transfer Mode (ATM) E1, Inverse Multiplexing over ATM (IMA), and Time-Division Multiplexing (TDM) PWE3.
Supports MPLS-TP.
Layer 2 feature Supports IEEE802.1q, IEEE802.1p, IEEE 802.3ad, and IEEE 802.1ab.
Supports the Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), RRPP, DHCP+, VLAN switching, and user binding.
Reliability Supports BGP GR, IS-IS GR, and OSPF GR.
Supports LDP GR, Resource-Reservation Protocol (RSVP) GR, and Non-Stop Forwarding (NSF).
Supports VLL/VPLS/L3VPN GR/NSF.
Supports multicast NSF.
Supports BGP/IS-IS/OSPF/LDP/RSVP-TE/PIM/ISSU Non-Stop Routing (NSR).
Supports In-Service Software Upgrade (ISSU).
Supports fast convergence of Interior Gateway Protocols (IGPs), BGP, and multicast routing.
Supports IP/LDP/VPN/TE/VLL FRR.
Supports IP Auto FRR.
Supports BFD for the static routing protocol and protocols such as IS-IS, RSVP, LDP, TE, Label Switched Path (LSP), PW, OSPF, BGP, VRRP, PIM, and RRPP.
Supports RRPP.
Supports MPLS OAM and Ethernet OAM, Y.1731.
Supports backup of service routers, PW redundancy, and PWE3 end-to-end protection.
Supports E-Trunk, E-APS, E-STP.
QoS Supports Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS.
Supports the last mile QoS.
Multicast Supports IGMPv1, IGMPv2, IGMPv3, IGMP snooping, multicast VPN, and IPv6 multicast.
Supports static multicast routes.
Supports multicast routing protocols: PIM-DM, PIM-SM, PIM-SSM, Multicast source Discovery Protocol (MSDP), and Multi protocol BGP (MBGP).
Supports the deployment of both multicast and TE.
Supports multicast CAC.
Security Supports ACL filtering, URPF, GTSM, and DHCP Snooping.
Supports anti-ARP attack and anti-DOS attack.
Supports MAC address limitation and bonding between MAC and IP.
Supports SSH and SSH v2.
Environmental requirements Long-term ambient temperature: -5℃ to 50℃
Short-term ambient temperature: –20℃ to +60℃
Long-term relative humidity: 5% to 85%, non-condensing
Short-term relative humidity: 5% to 95%, non-condensing
Working altitude: lower than 3000 meters
