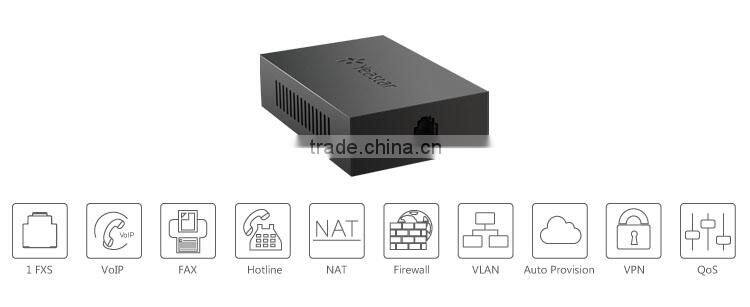

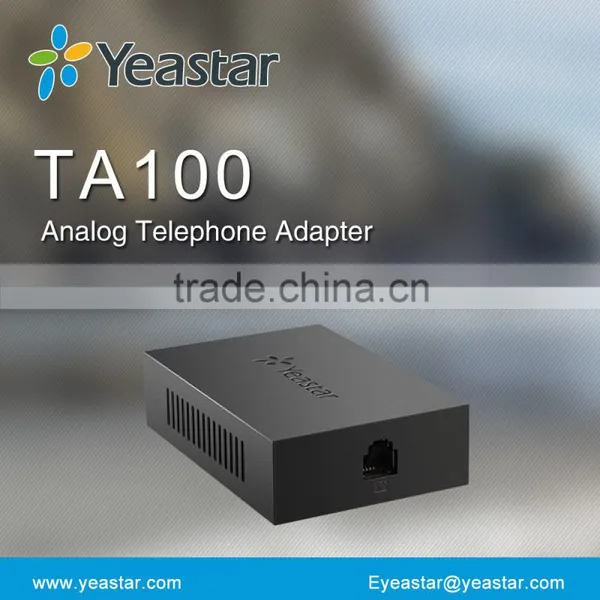

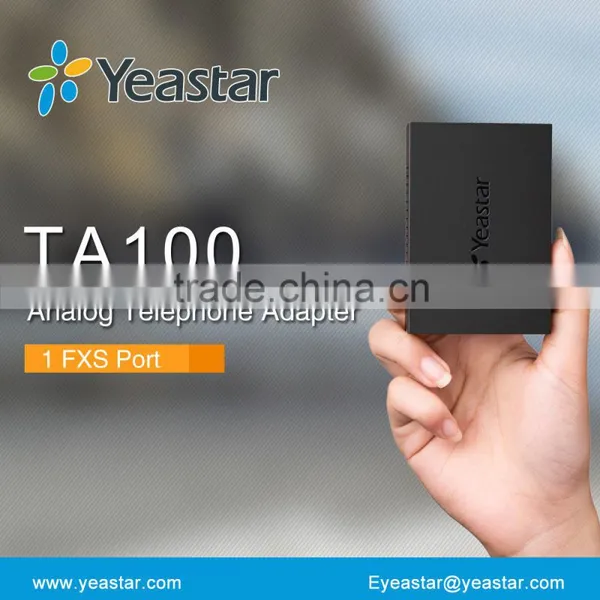

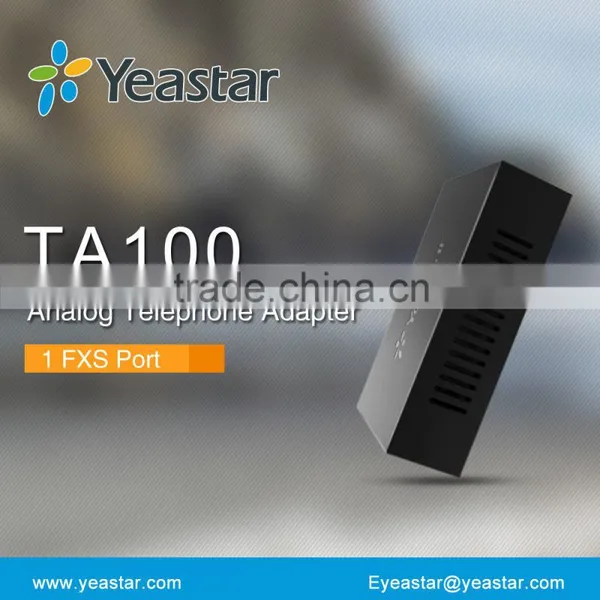

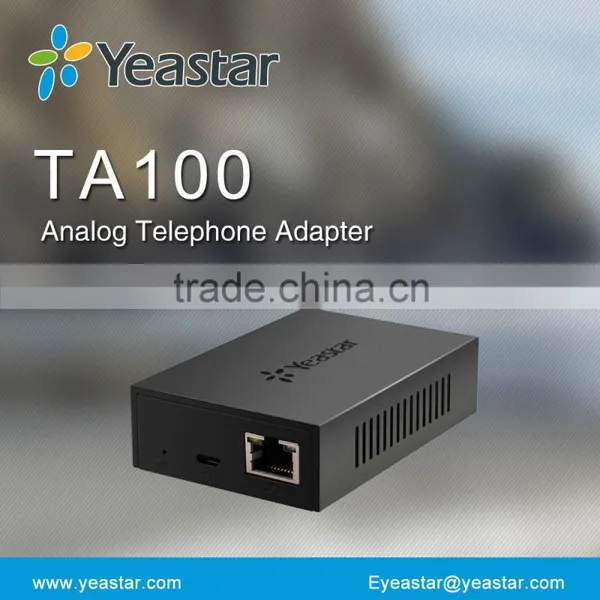

Yeastar TA100 is an Analog Telephone Adapter that provides 1 analog interface for residential users and small business to convert existing analog equipment to IP-based networks cost effectively.
|
|
Rich Calling Features
· TA100 allows users to connect 1 analog phone or fax machine to enable VoIP services. · Features like call waiting, call forwarding, call transfer, call conference, Direct IP Dialing, Do Not Disturb, and flexible dial plan are essential telephony features for home business and small business.
|
|
Miniature and USB Powered · Micro USB port equipped, TA100 also can be powered by and directly connected to the USB port of PC and IP-PBX. |
|
|
Cost-effective Analog Telephone Adapter · Connect analog phones and fax machines to VoIP network · Protect investment in existing analog telephones · Migrate to IP voice with the easy-to-install ATA |
|

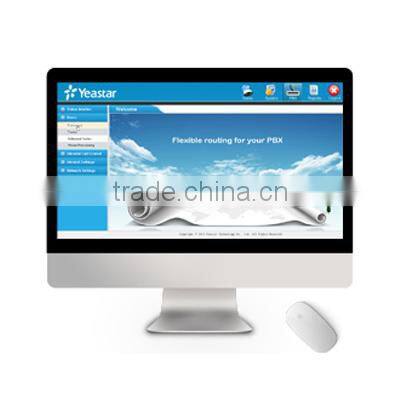

Simple Management · It is manageable from any Web browser with intuitive Web GUI. · The flexible configuration also allows basic configuration on telephone keypad with voice prompt. |
|
| Ports | 1FXS Port |
| Telephony Interfaces | RJ11 |
| Network Interfaces | 1 10/100Base-T Ethernet |
| Micro USB Port | 1 |
| Protocol | SIP (RFC3261) |
| Transport | UDP, TCP, TLS, SRTP |
| Codec | G.711 (alaw/ulaw), G.729A/B |
| DTMF Mode | RFC2833, SIP Info, In-band |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer |
| Fax | T.30 Pass-through |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging |
| Network | DHCP, OpenVPN, PPPoE, Static Route, VLAN |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SS |
| Management Protocol | TR-069* |
| Signaling | FXS Loop Start, FXS Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal |
| Power | DC 5V 1A |
| Humidity | 10-90% non-condensing |
| Dimensions (L × W × H) (mm) | 85 x 58 x 24 |
| Storage Range | -20°C to 65°C, -4°F to 149°F |
| Operation Range | 0°C to 40°C, 32°F to 104°F |
| Mounting | Desktop |
| Compatibility | Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft |
| Features | 3-way Conference,API |
Applications

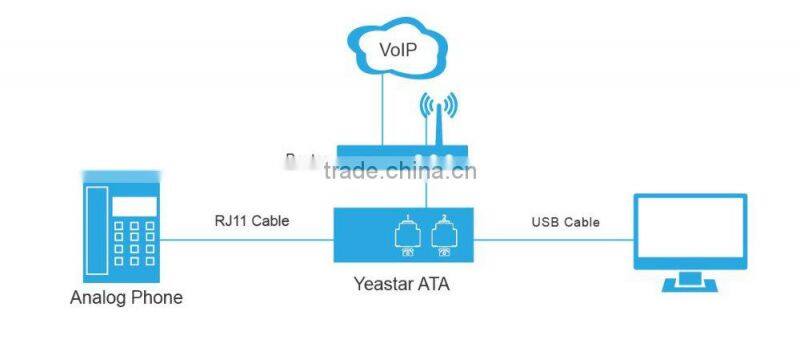

· How does it work?
· Ideal Solution for Small Business and Residential Users
· Multi-language Web GUI and voice prompts
1. Perfect interoperability with major IP PBX brands
2. Compatible ITSP
1. Shipping
· within 2-3days after the payment
· support any delivery methods as you require, such as:
2. Superior customer Service:
· 1 year Warranty
· Free firmware upgrade for life
· 24 hours Technical support through phone calls, emails, skype, and remote assistance
· Various training, including sales and technical training like online Webinar
· Customizable products with OEM/ODM service
Company & Factory
· Yeastar specializes in the developing and manufacturing of IP-PBX and VoIP gateways, and is committed to the distribution of new generation technology products in the field of enterprise communications.
· Our factory applies SMT craft with strict quality control is consistent with ISO 9001 Quality Accreditation.
Yeastar attendends professional exhibitions together with our distributors:
CeBIT, ITEXPO EAST, GITEX, Convergence India, Elastix World, BroadSoft Connections, Hong Kong Electronics Fair...ect.
