Specifications
Hybrid dvr 2014 New Product HVR1.DVR/NVR/ HVR mode
2.BNC,VGA,HDMI
3.Support 3G,WIFI
4.2years warranty for free
2014 New Product HVR High definition Hybrid dvr
Introduction: 2014 new product hvr hybrid dvr
What is HVR?
HVR Embedded linux operating system software architecture, and uses a high-performance DSP processor as the hardware platform. Is a BNC analog and digital networks simultaneously standard RJ45 interface owned, and also supports analog front-end video capture front-end HD encoding and network access, decode HD network storage DVR video surveillance equipment.
HVR integrates video and voice processing, video behavior analysis, video playback, search, split screen, video preview backup, PTZ control, alarm control, remote network monitoring and management functions. Full integration of both analog and digital security monitoring system advantages.
HVR combined with the security industry. Networked, intelligent, high-definition. Direction and trends, the industry that will replace the near future become a core part of the DVR surveillance system!
Features: 2014 new product hvr hybrid dvr
| Video Input | DVR Mode | 4CH*960H |
| HVR Mode | 2CH*D1 +(1CH*1080P +1CH*720P) | |
| NVR Mode | 8CH*960H/4CH*720P/2CH*1080P/1CH*720P +7CH*D1/1CH*1080P +1CH*720P +2CH*D1 | |
| Video Output | 1ch HDMI(1080P),1ch VGA(1080P),1ch BNC(D1) | |
| Recording/Playback | DVR mode:4CH 960H real time recording / 4CH 960H realtime playback | |
| Video Split | 1/4 Video(DVR mode) | |
| Ports | Audio | 4ch RCA Input/1ch RCA Output |
| Alarm | 2CH Input/1CH Output | |
| PTZ | 1ch RS485 | |
| HDD | 2pcs SATA HDD,each max 3TB(2*3TB) | |
| USB | 2pcs USB2.0(Support 3G,WIFI module) | |
| Size(mm)/Weight(kg) | 325*230*52mm/2.35 KG (5pcs/carton) | |
Specification: 2014 new product hvr hybrid dvr
Model |
HVR-9004C |
|
System |
Main processor |
Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531 |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Display |
Operation interface |
4 bit real color GUI interface support mouse operation |
Display screen |
(Take all analog input as an example, others are depended on the selected channel mode) |
|
1/4/8/9/16screen | ||
Video |
Video standard |
PAL(625 lines,50fps);NTSC(525lines,60fps) |
Image encode |
H.264(High Profile) |
|
Monitor quality |
Monitor:D1;VGA:1080P ;HDMI:1080P |
|
Playback quality |
Max support 1080P under HVR and NVR mode;Max support 960H under DVR mode |
|
Encode capability |
4CH 960H real time(DVR mode) |
|
Decode capability |
4CH 960H real time(DVR mode) |
|
Multi-mode video input |
DVR mode :4*960H/4 *D1 HVR mode: 2CH*D1 +(1CH*1080P +1CH*720P) NVR mode: 8CH*960H/4CH*720P/2CH*1080P/1CH*720P +7CH*D1/1CH*1080P +1CH*720P +2CH*D1 |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
|
Audio |
Audio compression |
G.711A |
|
Record and playback
|
Record mode |
Manual,alarm,motion detection,timing |
Local playback |
Max support 4CH 960H real time playback synchronously(DVR mode) |
|
Video search |
Time,date,event,channel search |
|
Storage and back up |
Space occupation |
Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
Video storage |
Local HDD ,Network |
|
Back up mode |
Network backup,USB portable HDD,USB DVD-RW,SATA |
|

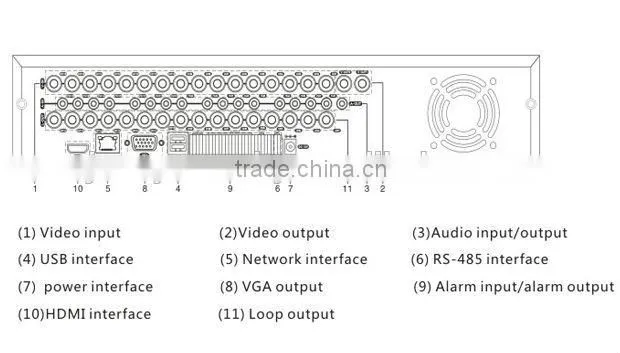

Interface |
Video input |
16CH BNC |
Video output |
2CH BNC,1CH VGA,1CH HDMI |
|
Audio input |
4CH RCA |
|
Audio output |
1CH RCA |
|
Alarm input |
2CH |
|
Alarm output |
1CH |
|
Network port |
RJ45 1000M self-adaptive Ethernet port |
|
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
|
USB port |
2*USB2.0 |
|
HDD port |
2 SATA HDD,each max 3TB(2*3TB) |
|
Wireless port |
3G,WIFI(extension via USB port) |
HVR 9004C
