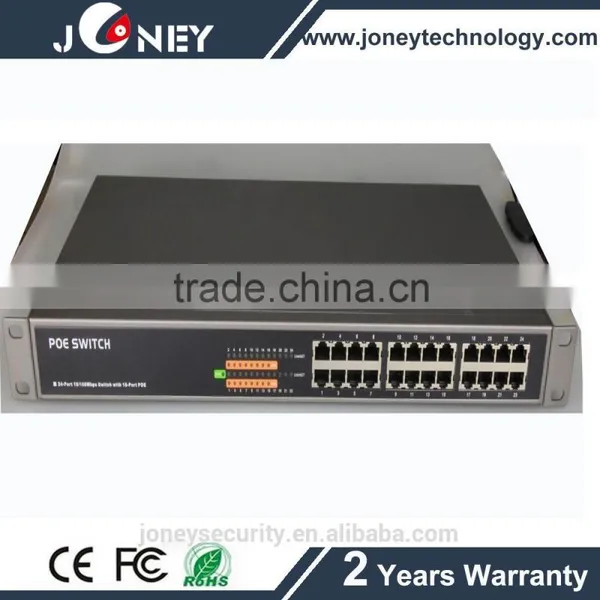

16 Channel 24 Port POE Switch

Name: 16 Channel 24 Port POE Switch
Brand: Joney
SKU: 128355295
Availability: InStock

US$ 1 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney

Model Number:

SPOE16T

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney

Model Number SPOE16T

Product Description

Features:

l Complies with IEEE 802.3 IEEE 802.3u IEEE802.3ab IEEE 802.3af/atstandards

l 24 POEports,each output max 30w,compliant IEEE802.3af/at

l 24 10/100Mbps+2 10/100/1000Mbps Auto-Negotiation ports supporting Auto-MDI/MDIX

l Using storage-forward switch mode

l Support for MAC address self-learning

l Support port bandwidth control, broadcast storm control, port aggregation

l Support IGMP(V1,V2), snooping (Multicast Application)

l Support Port based VLAN, 802.1Q VLAN, and many-to-one settings

l Support for VLAN across functions

l Support for port number priority QoS of port-based, 802.1p, IP TOS/DS, and TCP/UDP

l Support for MAC address binding, TCP-UDP port filtering statistics function

l Support port mirroring and port traffic statistics function

l Support pure English WEB management interface

l Dynamic LED indicator to display the state of equipment and provide a simple troubleshooting

l Support Auto-MDI/MDIX function

Specifications

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3ab 1000Base-TX Gigabit Ethernet IEEE 802.3x flow control IEEE 802.3af/at
protocol	CSMA/CD
Transmission Rate	Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port Gigabit Ethernet 1000Mbps (half duplex),2000Mbps (full duplex); 1000BASE-TX :1488000pps/port
Topology	Star
Network Medium	10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) 1000Base-TX:Cat 5e or 6 UTP(≤100m) SFP fiber module:20km
Number of Ports	24+2 combo ports
POE Ports	24
UPLINK	2 gigabit sfp/rj45
Transmits Method	Store-and-Forward
Over Voltage/Current/Short Protection	The output can be shorted permanently without damage
Temperature	Operating Temperature -15℃~60℃ (5F~140F) Storage Temperature -40℃~70℃ (-40F~158F)
Humidity	Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing
Switch capacity	8.8G
LED Indications	1* power LED(Power: Green) 52data LEDs(Link/Act:Green) 24POE LEDs(POE:Yellow)
POE power	400W
Switch Weight	6kg
Dimension(W x H x D)	44035044mm
Case Material	Steel case
