Help Center24 Channel CIF DVR HDMI DVR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney Technology
Model Number:
DVR-8224L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Network Video Recorder 16 Channel RS485 DVR P2P DVRNegotiableMOQ: 1 Piece -
16channel H 264 Standalone Dvr HDD*4,Up to 12TBNegotiableMOQ: 1 Piece
-
D1/CIF HDMI 8 Channel H.264 DVR HDD*2,Up to 6TBUS$ 58 - 62MOQ: 1 Piece
-
HDMI 1080P Output 960H H.264 8 CH DVR HDD*2,Up to 6TBUS$ 80 - 90MOQ: 1 Piece
-
Affordable D1 Full HD 8ch Digital Video Recorder DvrUS$ 40 - 47MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Joney Technology
Model Number
DVR-8224L
Specifications
24 Channel CIF DVR HDMI DVR--cif dvr
--hdmi dvr
--2 years warranty for free
Product Description

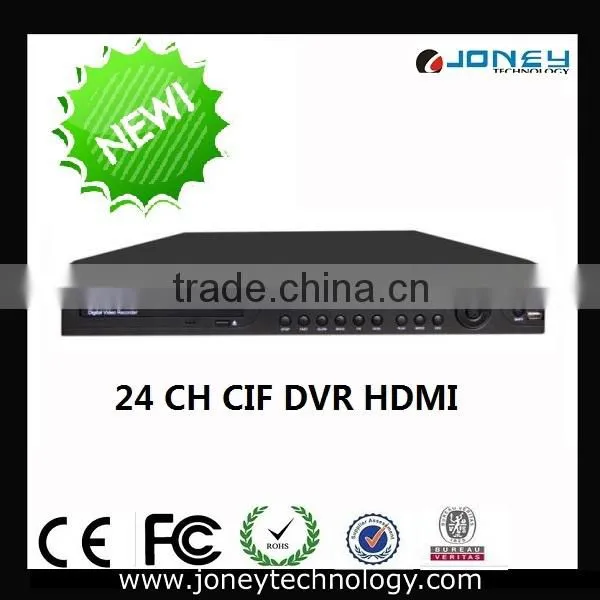

24 Channel CIF DVR HDMI DVR
Specification: CIF DVR HDMI DVR
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 24 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Alarm 8CH Input,1CH Output | ||||
| Audio | ||||
| Input | 8channel, RCA | |||
| Output | 1 channel, RCA | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 VGA, 1 TV, BNC(1.0Vp-p, 75) 1*HDMI(1080P) | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/24 | |||
| Privacy Masking | 24 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | 960H D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |||
| Extra Stream | CIF(1~25/30fps) | |||
| Bit Rate | 48~4096Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection& Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Relay Output | 1 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/24 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device / Network | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M) Ethernet connector,3G,WIFI,P2P | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 20 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | HDD Max 3TB,SATA Interface HDD*2,Up to 6TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS485 | PTZ control | |||
| General | ||||
| Power Supply | DC12V/6A (Adapter Included) | |||
| Power Consumption | 10W(without HDD) | |||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | 69X50X47CM | |||
| Weight | 5PCS/CARTON, 69X50X47CM , 23.2KG(1.5U) | |||
Detailed Images
CIF dvr: CIF DVR HDMI DVR DVR CIF
