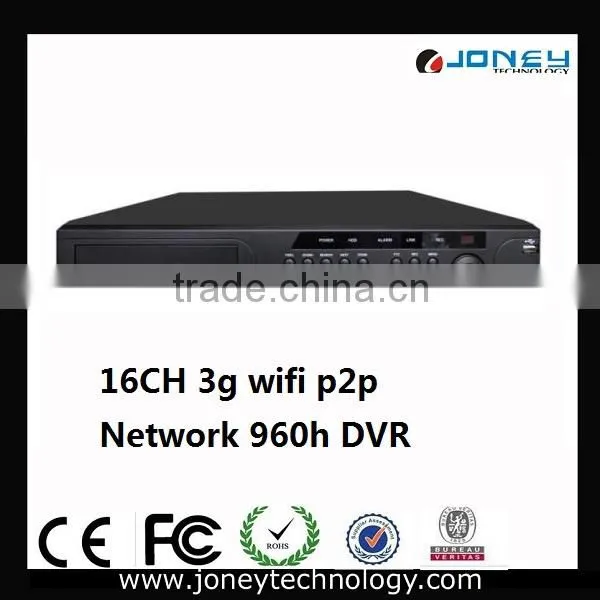

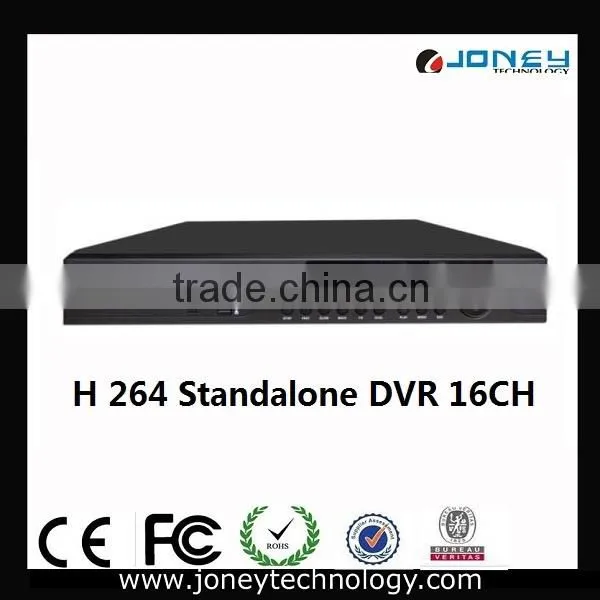

16channel H 264 Standalone Dvr HDD*4,Up to 12TB

16channel H 264 Standalone Dvr HDD*4,Up to 12TB thumbnail-1
16channel H 264 Standalone Dvr HDD*4,Up to 12TB photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney Technology
Model Number:
DVR-8216HS
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Joney Technology
Model Number DVR-8216HS

Specifications

16channel H 264 standalone dvr
--960h dvr
--HDD*4,Up to 12TB
--2 years warranty for free





Product Description

H 264 standalone dvr              16channel dvr h 264



Specification: H 264 standalone dvr 16channel dvr h 264

System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 16 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Alarm                         16CH Input,4CH Output
Audio
Input 16 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input/output channel 1
Display
Interface 1 VGA, 1 TV, BNC(1.0Vp-p, 75)  1*HDMI(1080P)
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/16
Privacy Masking 16 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264 / G.711
Resolution 960H D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
  Extra Stream CIF(1~25/30fps)
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Relay Output 1 channel
Playback & Backup
Sync Playback 1/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Network
Ethernet RJ-45 port (10/100M)  Ethernet connector,3G,WIFI,P2P
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD HDD Max 3TB,SATA Interface HDD*4,Up to 12TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
RS485 PTZ control
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H)  69X50X47CM , 23.2KG(1.5U)
Weight 5pcs/carton , 23.2KG(1.5U)



Detailed Images



  960h dvr:   H 264 standalone dvr 16channel dvr H 264

 16channel H 264 standalone dvr HDD*4,Up to 12TB



Advantages





1. Professional Technical Team:

    A. We provide professional solution and reply for every inquiry in 24 hours.

    B. Best quality and service, best after-sale

    C. 2 year warranty time, life long technology support.

    D. We can offer professional remotely technical support for problems.



2. OEM,ODM service: Customized requirement is available, we can design and produce machines with your own logo.



3. Good quality: We have strict quality control system .Good reputation in the market.



4. Special offers: We have special offers for long-term cooperation clients



  16channel H 264 standalone dvr HDD*4,Up to 12TB

16channel H 264 standalone dvr HDD*4,Up to 12TB
