Help CenterHigh Quality 16CH Realtime Standalone Fine DVR With 6TB and Alarm
Related Products
-
Hot Mini 1U 960H HD 4CH DVR StandaloneNegotiableMOQ: 1 Piece -
8CH 720P Realtime HD CVI DVR 8CH CCTV With HDD up to 3TBNegotiableMOQ: 1 Piece
-
Hot 8CH Full HD CCTV Video Player With HDD 4TBNegotiableMOQ: 1 Piece
-
H.264 960H Live Recording 4CH USB DVRNegotiableMOQ: 1 Set
-
Hot Mini 1U 960H HD 4CH DVR BoardNegotiableMOQ: 1 Piece
Specifications
High quality 16ch realtime standalone fine dvr with 6tb can alarmD1 realtime
16CH input
Mini 1U
2*HDD up to 6TB
High quality 16CH realtime standalone Fine DVR with 6TB and alarm
Features of fine dvr
1)16CH Video input & 1CH Audio DVR. P2P function
2)Support D1 resolution, playback CIF real-time
3)Support 16CH simultaneous playback
4)HDMI & VGA support
5)Digital zoom function on both live view and playback mode
6)HDDx2, max 6TB
7)Firmware updatable
8)Multi languages support

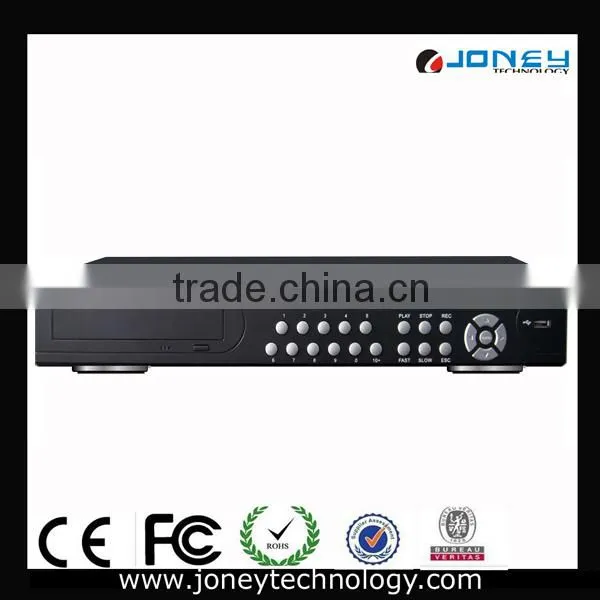

Pictures of DVR
DVR information
Model No. |
DVR-6316H |
Video Compression |
H.264 |
OS |
Embedded LINUX |
System Resources |
Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously |
Interface |
User-friendly graphical user interface |
Input Devices |
Front panel, USB mouse, remote controller |
Video Input |
16-CH Composite Video 1.0Vp-p/75Ω, NTSC/PAL |
Monitor Output |
1-CH Composite Video Output 1.0Vp-p/75Ω, NTSC/PAL |
HDMI Output |
1-CH HDMI, Adjustable resolution: 1920×1080, 1440×900, 1360×768, 1280×720, 1280×1024, 1024×768 |
VGA Output |
1-CH VGA, Adjustable resolution: 1920×1080, 1440×900, 1360×768, 1280×720, 1280×1024, 1024×768 |
Video Standard |
PAL(625line, 50f/s), NTSC(525line, 60f/s) |
Record Speed |
PAL 1fps to 25fps per channel and NTSC 1fps to 30fps per channel |
Video Partition |
1/4/8/9 windows |
Recording Mode |
Manual recording, always recording, motion detection recording, schedule recording |
Resolution |
D1:PAL 704*576(200fps) / D1:NTSC 704*480(240fps) |
Playback Resolution |
16ch real-time simultaneous playback(PAL/NTSC): CIF (352×288 200fps / 352×240 240fps) |
Audio Compression |
ADPCM, 16Kbps |
Audio Input |
16-CH 200-2000mv5kΩ, RCA |
Audio Output |
1-CH 200-3000mv1kΩ, RCA |
Network |
RJ45 10M/100M/1000M self-adaptable Ethernet port, support TCP, FTP, PPPOE, 3G, Web browser, CMS, NetViewer |
Mobile OS |
iPhone, Android, Blackberry, Windows mobile, Symbian |
Email for alarm |
Support SMTP server, support SSL |
DDNS |
Build in free privacy DDNS, DYNDNS, 3322, perfect, myq-see and no-ip |
Hard Disk |
Support 2 SATA, max6 TB HDD |
USB Interface |
2 USB 2.0 ports |
Operating Temperature |
+5°~ +50 |
Storage Temperature |
-20°~ +70° |
Humidity |
30 ~95% |
