WIFI 960H Realtime 16CH 4 HDD DVR with Alarm Output

Specifications

Wifi 960h realtime 16ch dvr with alarm output
1CH BNC Output ,1CH VGA Output,1CH HDMI 1080P
8CH RCA Input,1CH RCA Output

WIFI 960H Realtime 16CH 4 HDD DVR with Alarm Output



Features of DVR with Alarm output

Standard 1U size, smart and convenient to use;

Simplified front panel, easy operation, easy installation;

Realtime for 2CH D1+14CH CIF video input;

Support VGA&HDMI Video output;

Network, 3G, WIFI, P2P support, it is possible to share video in the internet;

Multi language support, allow your native languge use;

CE, FCC, RoHS certified.

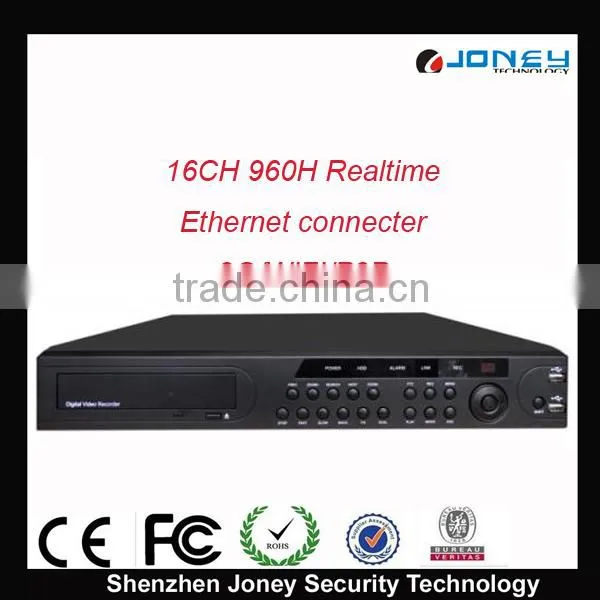

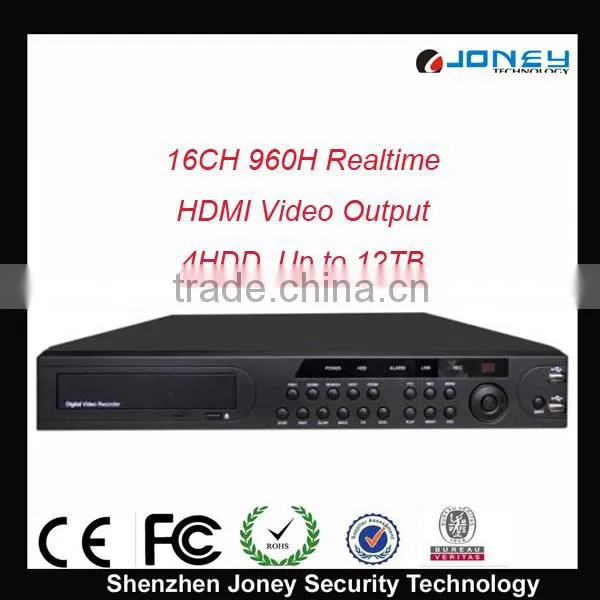

View of products

Main Specifications

Video input	16 CH  < BNC input >
Performance	960H realtime
Video output	1CH BNC Output ,1CH  VGA Output,1*HDMI(1080P)
Resolution	960H
System Resource	Sixfold operation: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
Control Mode	Front panel, USB mouse, IR remote control, Network
Audio	16CH RCA Input,1CH RCA Output
Alarm	8CH Input,1CH Output
Play back	16CH at the same time
PTZ	1*RS485, RS232.Support PELCO-D,PELCO-P Procotol
USB	2 * USB2.0
Mobile phone	Support Window Mobile, Symbian, Android, iPhone and Blackberry etc
HDD Capacity	HDD Max 3TB,SATA Interface HDD*4,Up to 12TB
Network Interface	1 RJ-45 10/100Mbps Ethernet connector,3G,WIFI,P2P
Backup	USB DISK,Network,USB DVD-RW
Languages	Multilingual support
User Extend	Design boot screen LOGO by youself
Power supply	DC12V, 6A (Adapter Included)
Package	5PCS/CARTON, 69X50X47CM , 23.2KG(1.5U)
