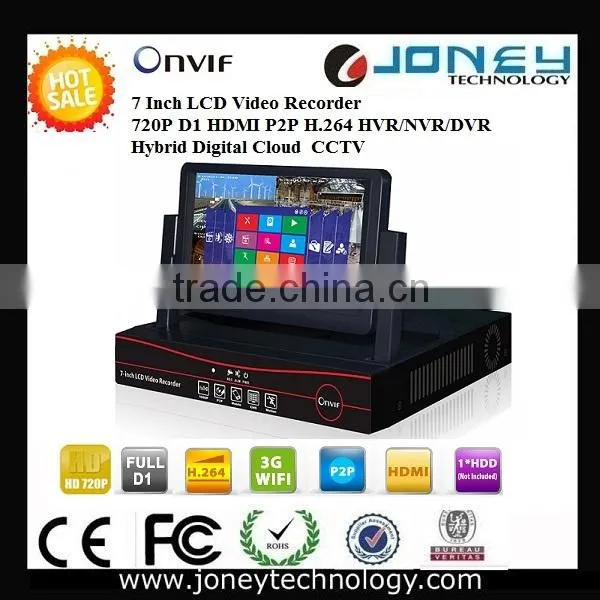

7 INCH TFT monitor 9CH Hybrid DVR Hybrid dvr nvr hvr 3 in 1

Specifications

1.8ch D1 +1ch 720p ip cam 9 ch HVR
2.H.264 VGA HDMI
3.7 inch TFT monitor HVR
4.4CH Audio&Alarm input
5. 1SATA 3TB HDD

>7 INCH TFT monitor

>Recording resolution and channel : 8*D1+1*720P

> H.264

> Display Image Resolution  720P 30FPS D1

> Playback channel: 4ch

> Audio Input: 4ch

> Alarm Input :4ch

>Support Network:P2P 3G WIFI Cloud

> Operating system Embedded LINUX OS

> PTZ control,with VGA,HDMI.,2*USB port.

> Support 1pcs SATA HDD(Max 3TB)

>  DC +12V /3A

> Operation temperature  0℃-+55℃

> 252*213*42mm(0.8U hight)

> 2.5-2.8KGKGS(not include HDD)

Specification: lcd tft dvr combo lcd dvr combo CCTV Hybrid DVR CCTV Hybrid DVR  CCTV Hybrid DVR



Model	HVR-8109S
System
Main processor	High performance embedded microprocessor
Operating system	Embedded LINUX OS
Video spec.
Video compression format	H.264
Display Image Resolution	720P 30FPS
Playback Image Resolution	720P 30FPS
Motion Detection	can setup 192(16×12)pcs motion detection area  each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking	Support
Audio spec.
Audio compression format	adpcm, G711
Two-way audio	N/A
Recording Mode
Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage	HDD,Network
Frame rate	30 fps NTSC;25fps PAL
Recording Playback	Max support 4ch D1  synchronously playback
Backup Mode	Support HDD,USB Flash Disk store & backup
Video
Network Video Input	8CH BNC+1CH 720P IPC
Video output	1ch CVBS(BNC) and 1ch HDMI
Audio
Audio Input	4ch BNC
Audio Output	1ch
Alarm
Alarm Input	4ch Alarm input
Alarm Output	1ch Alarm Output
Other
Network	1x100Mbps,RJ45 port;
RS485	Standard 485 port,support half-duplex,  green terminal port"
USB	2 USB 2.0 ports
HDD	support 1 SATA 3TB HDD
Power	DC +12V /3A
Power consumption	16W-18W(not include HDD)
Operation temperature	0℃-+55℃
Operation humidity	10%-90%
Demension	252*213*42mm(0.8U hight)
Weight	2.5-2.8KGKGS(not include HDD)
