Help Center6CH 720P 960H HDMI H 264 P2P CCTV Hybrid DVR 7 Inch TFT LCD DVR Combo
Related Products
-
720P 960H HDMI 6CH H.264 Hybrid DVR/NVR/HVR With 7 INCH TFT MonitorNegotiableMOQ: 1 Piece -
Multi-functions 7 Inch TFT Monitor 9CH Hybrid NVR DVR PlayerNegotiableMOQ: 1 Set
-
Powerful 10 Inch TFT Monitor 6CH 960H 720P Hybrid DVR NVR RecorderNegotiableMOQ: 1 Set
-
All In One 7 Inch TFT Monitor 6CH 960H DVR 720P Hybrid CCTV NVRNegotiableMOQ: 1 Set
-
2HDD 6TB 32CH CIF Wifi Wireless DVR RecorderNegotiableMOQ: 1 Set
Specifications
1.4ch analog cameras+2 ch 720p ip cam2.H.264 VGA HDMI
3.7 inch TFT monitor HVR
4.4CH Audio&Alarm input
5. 1SATA 3TB HDD
Network DVR NVR HVVR

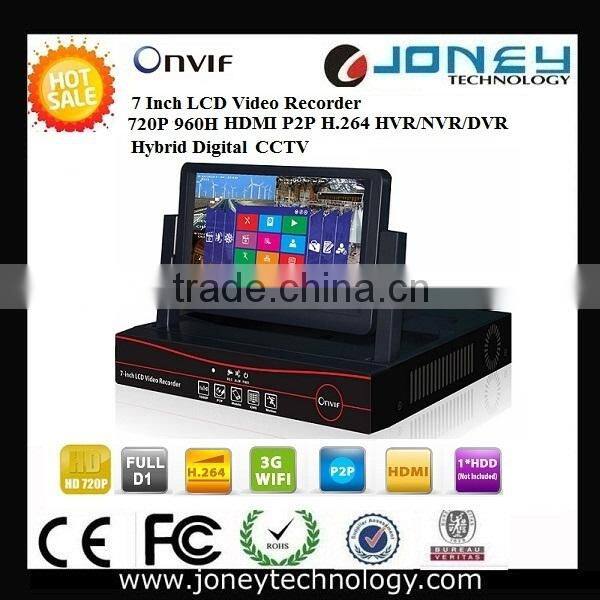

7 Inch LCD Video Recorder720P 960H HDMI 6CH H.264
HVR-8006S Hybrid DVR/NVR/HVR
Features: lcd tft dvr combo lcd dvr combo CCTV Hybrid DVR CCTV Hybrid DVR CCTV Hybrid DVR
>7 INCH TFT monitor
>Recording resolution and channel : 4*960H+2*720P
> H.264
> Display Image Resolution 720P 30FPS D1
> Playback channel: 4ch
> Audio Input: 4ch
> Alarm Input :4ch
>Support Network:P2P 3G WIFI Cloud
> Operating system Embedded LINUX OS
> PTZ control,with VGA,HDMI.,2*USB port.
> Support 1pcs SATA HDD(Max 3TB)
> DC +12V /3A
> Operation temperature 0℃-+55℃
> 252*213*42mm(0.8U hight)
> 2.5-2.8KGKGS(not include HDD)
Specification: lcd tft dvr combo lcd dvr combo CCTV Hybrid DVR CCTV Hybrid DVR CCTV Hybrid DVR
| Model | HVR-8006S |
| System | |
| Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS |
| Video spec. | |
| Video compression format | H.264 |
| Display Image Resolution | 720P 30FPS |
| Playback Image Resolution | 720P 30FPS |
| Motion Detection |
can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
| Privacy Masking | Support |
| Audio spec. | |
| Audio compression format | adpcm, G711 |
| Two-way audio | N/A |
| Recording Mode | |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
| Recording storage | HDD,Network |
| Frame rate | 30 fps NTSC;25fps PAL |
| Recording Playback |
Max support 4ch D1 synchronously playback |
| Backup Mode | Support HDD,USB Flash Disk store & backup |
| Video | |
| Network Video Input | 4CH BNC+2CH 720P IPC |
| Video output | 1ch CVBS(BNC) and 1ch HDMI |
| Audio | |
| Audio Input | 4ch BNC |
| Audio Output | 1ch |
| Alarm | |
| Alarm Input | 4ch Alarm input |
| Alarm Output | 1ch Alarm Output |
| Other | |
| Network | 1x100Mbps,RJ45 port; |
| RS485 |
Standard 485 port,support half-duplex, green terminal port" |
| USB | 2 USB 2.0 ports |
| HDD | support 1 SATA 3TB HDD |
| Power | DC +12V /3A |
| Power consumption | 16W-18W(not include HDD) |
| Operation temperature | 0℃-+55℃ |
| Operation humidity | 10%-90% |
| Demension | 252*213*42mm(0.8U hight) |
| Weight | 2.5-2.8KGKGS(not include HDD) |
HVR-8006S Hybrid DVR/NVR/HVR

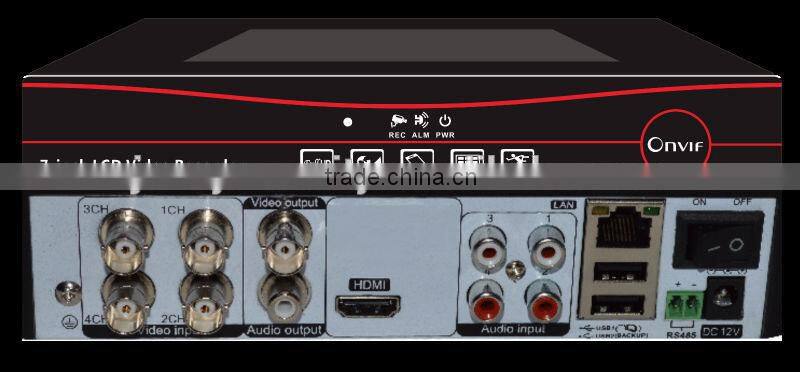

Hybrid DVR Connection
HVR Main menu
HVR Play back
HVR Network setup
Add IPC to HVR
HVR CMS Interface
E-map
HVR P2P Mobile Phone viewer
Choose Joney, Choose Professional! High quality more competitive price !!! Contact:Vidya Skype:joneytech02
