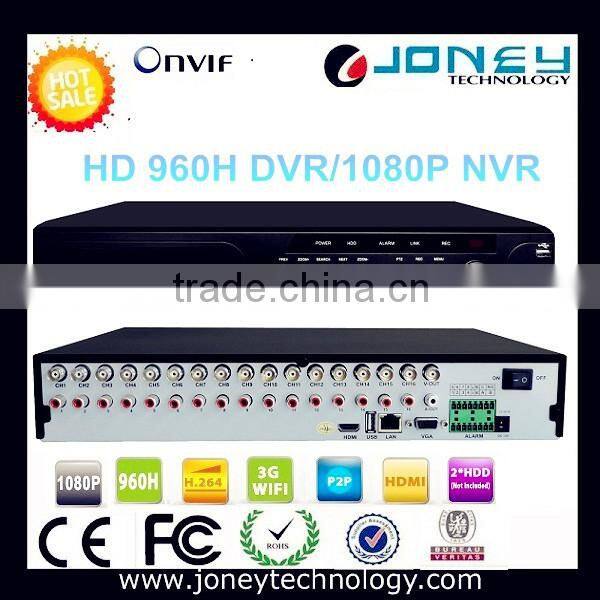

2014 Newest HVR 16CH 960H DVR 4CH 1080P NVR H.264 Hybrid dvr HVR-8320

Specifications

1.16ch 960H+ 4ch 1080p ip cam 20ch HVR
2.H.264 VGA HDMI
3.PTZ control,2*USB port.
4.16CH Audio& 8ch Alarm input
5.1.5U

> 16CH 960H+4CH 1080P

>Recording resolution and channel :  16CH 960H+4CH 1080P

> H.264

> Display Image Resolution  1080P 30FPS

> Audio Input: 16ch

> Alarm Input :4ch

>Support Network:P2P 3G WIFI Cloud

> Operating system Embedded LINUX OS

> PTZ control,with VGA,HDMI.,2*USB port.

> Support 2pcs SATA HDD(Max 6TB)

>  DC +12V /3A

> Operation temperature  0℃-+55℃

> 1.5U 365mm * 426mm * 65 mm(1.5U hight)

>  3.5-4.05KG(not include HDD)

Specification: Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR  HVR

Model	HVR-8320
Support embedded Linux OS Support BNC and IPC Sync Input Support VGA ,HDMI,CVBS Sync video output VGA,HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 4ch 1080P simultaneous playback
System
Main processor	High performance embedded microprocessor
Operating system	Embedded LINUX OS
Video spec.
Video compression format	H.264
Display Image Resolution	D1@30fps;720P@30fps;960P@30fps; 1080P@30fps
Playback Image Resolution	D1@30fps;720P@30fps;960P@30fps; 1080P@30fps
Motion Detection	can setup 192(16×12)pcs motion detection area  each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking	Support
Audio spec.
Audio compression format	adpcm, G711
Two-way audio	N/A
Recording Mode
Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage	HDD,Network
Frame rate	30 fps NTSC;25fps PAL
Recording Playback	Max support 4ch 1080P synchronously playback
Backup Mode	Support HDD,USB Flash Disk store & backup
Video
Network Video Input	16CH BNC, 4CH 1080P IPC
Video output	1ch CVBS(BNC), 1ch VGA and 1ch HDMI
Audio
Audio Input	16ch BNC
Audio Output	1ch
Alarm
Alarm Input	4ch Alarm input
Alarm Output	1ch Alarm Output
Other
Network	1x100Mbps,RJ45 port;
RS485	Standard 485 port,support half-duplex, green terminal port
USB	2 USB 2.0 ports
HDD	support 2 SATA HDD
Power	DC +12V /6A
Power consumption	16W-18W(not include HDD)
Operation temperature	0℃-+55℃
Operation humidity	10%-90%
Demension	365mm * 426mm * 65 mm(1.5U hight)
Weight	3.5---4.05KG(not include HDD)
