P2P 3G WiFi H.264 DVR Full HD 1080P NVR Hybrid DVR Security System Manufacturer
Specifications
1.16ch D1+ 9ch 1080p ip cam 25ch HVR2.H.264 VGA HDMI
3.PTZ control,2*USB port.8 SATA HDD
4.16CH Audio& Alarm input
5.2U
Network DVR NVR HVR
HVR-8325D H.264 HVR Hybrid DVR/NVR/HVR
Features:Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR
> 16CH D1+9CH 1080P
>Recording resolution and channel : 16CH D1+9CH 1080P
> H.264
> Display Image Resolution 1080P 30FPS
> Audio Input: 16ch
> Alarm Input :16ch
>Support Network:P2P 3G WIFI Cloud
> Operating system Embedded LINUX OS
> PTZ control,with VGA,HDMI.,2*USB port.
> Support 8pcs SATA HDD
> DC +12V /3A
> Operation temperature 0℃-+55℃
> 2U, 510mm * 490mm * 180mm
> 8.7KG(without HDD)
Specification: Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR
| Model | HVR-8325D |
| Support embedded Linux OS Support BNC and IPC Sync Input Support VGA ,HDMI,CVBS Sync video output VGA,HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 9ch 1080P simultaneous playback | |
| System | |
| Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS |
| Video spec. | |
| Video compression format | H.264 |
| Display Image Resolution | D1@30fps;720P@30fps;960P@30fps; 1080P@30fps |
| Playback Image Resolution | D1@30fps;720P@30fps;960P@30fps; 1080P@30fps |

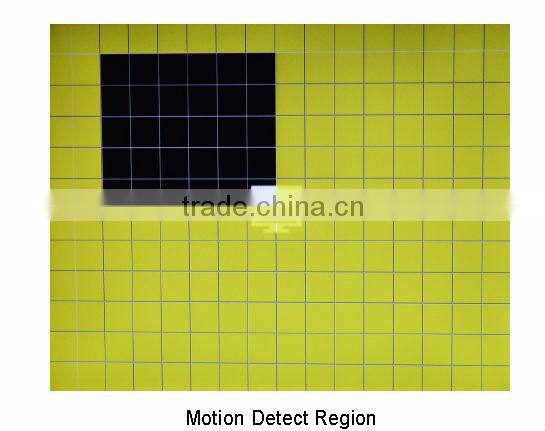

| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
| Privacy Masking | Support |
| Audio spec. | |
| Audio compression format | adpcm, G711 |
| Two-way audio | N/A |
| Recording Mode | |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
| Recording storage | HDD,Network |
| Frame rate | 30 fps NTSC;25fps PAL |
| Recording Playback | Max support 9ch 1080P synchronously playback |
| Backup Mode | Support HDD,USB Flash Disk store & backup |
| Video | |
| Network Video Input | 16CH BNC, 9CH 1080P IPC |
| Video output | 1ch CVBS(BNC), 1ch VGA and 1ch HDMI |
| Audio | |
| Audio Input | 16ch BNC |
| Audio Output | 1ch |
| Alarm | |
| Alarm Input | 16ch Alarm input |
| Alarm Output | 1ch Alarm Output |
| Other | |
| Network | 1x100Mbps,RJ45 port; |
| RS485 | Standard 485 port,support half-duplex, green terminal port |
| USB | 2 USB 2.0 ports |
| HDD | support 8 SATA each Port support Max 3TB HDD |
| Power | DC +12V /6A |
| Power consumption | 16W-18W(not include HDD) |
| Operation temperature | 0℃-+55℃ |
| Operation humidity | 10%-90% |
| Demension | 2U, 510mm * 490mm * 180mm |
| Weight | 8.7KG(without HDD) |

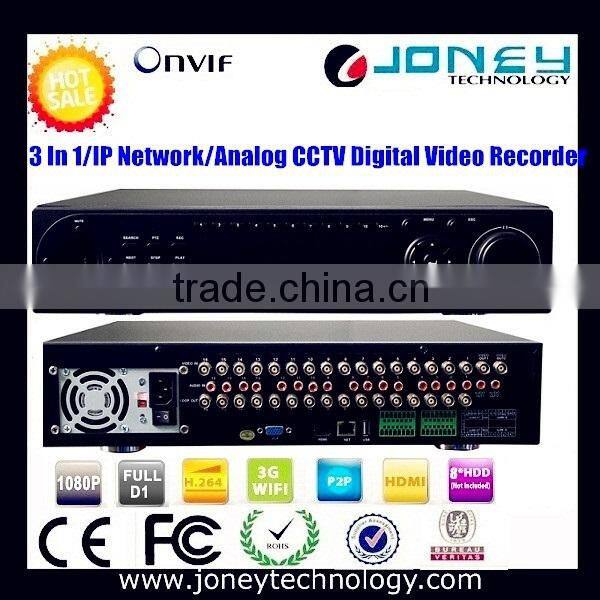

HVR-8325D Hybrid DVR/NVR/HVR

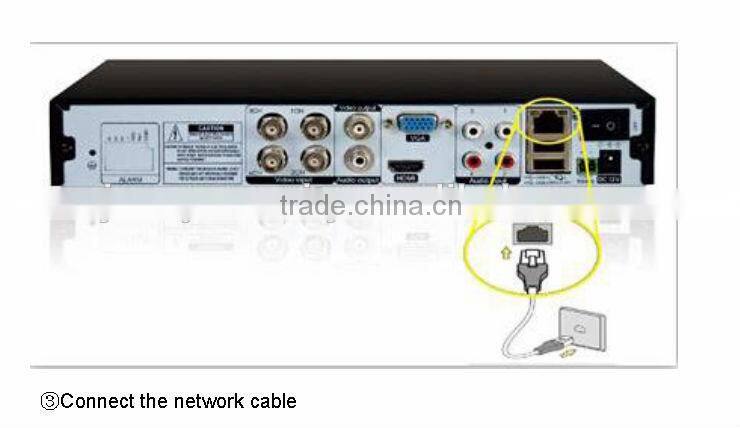

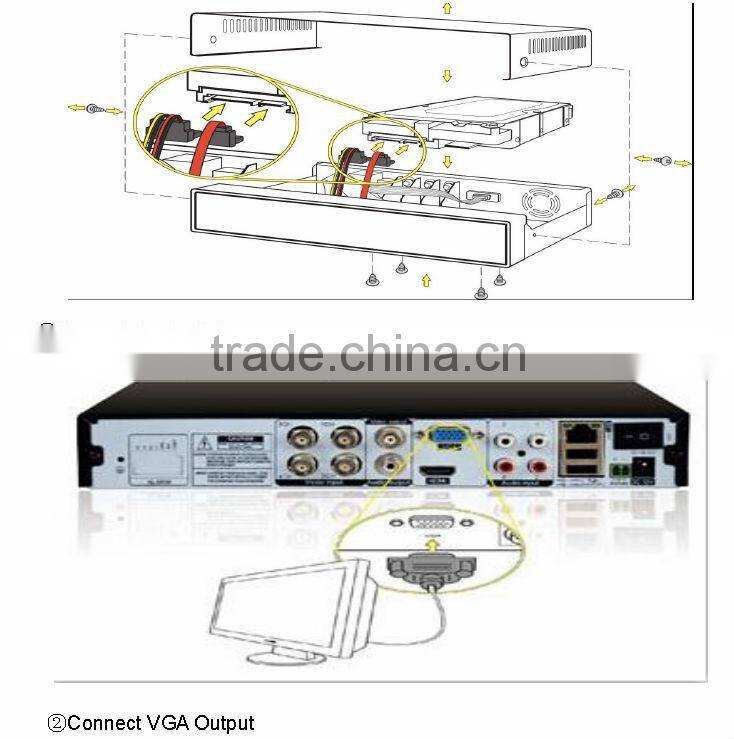

Hybrid DVR Connection

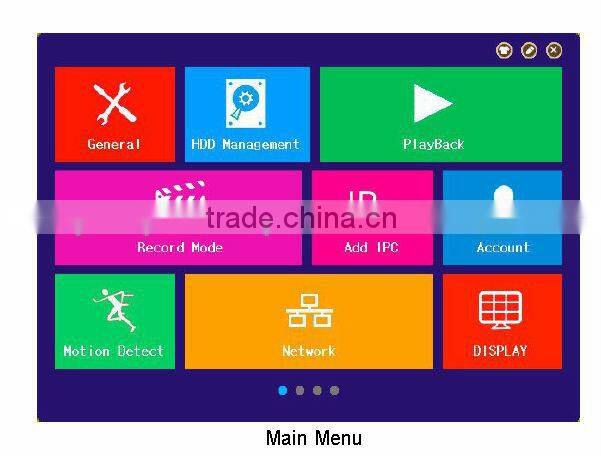

HVR Main menu

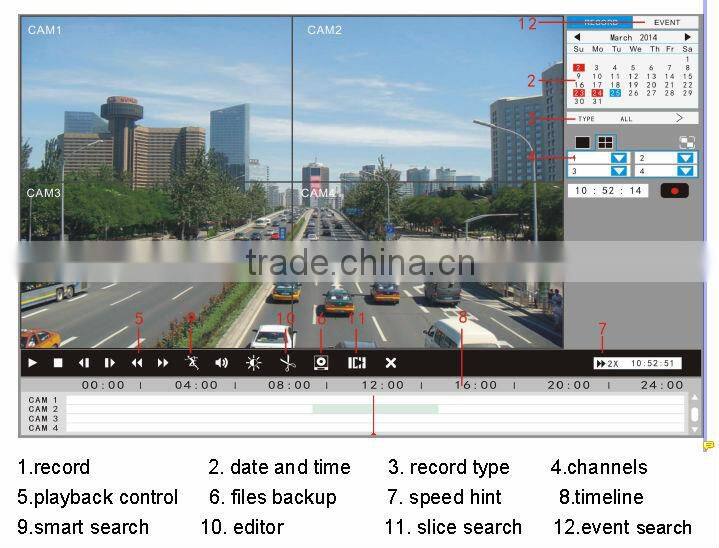

HVR Play back

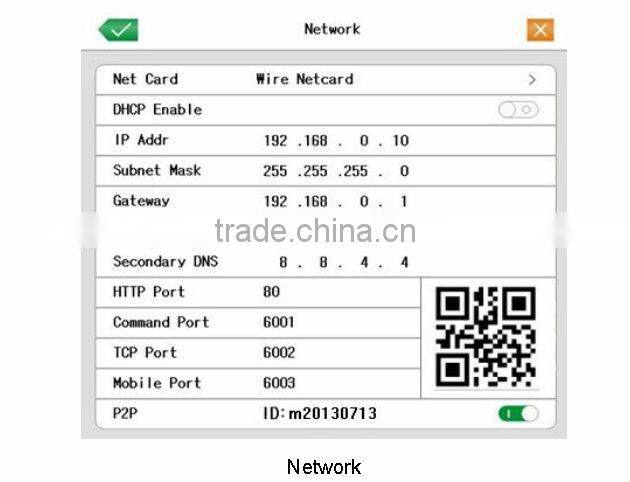

HVR Network setup

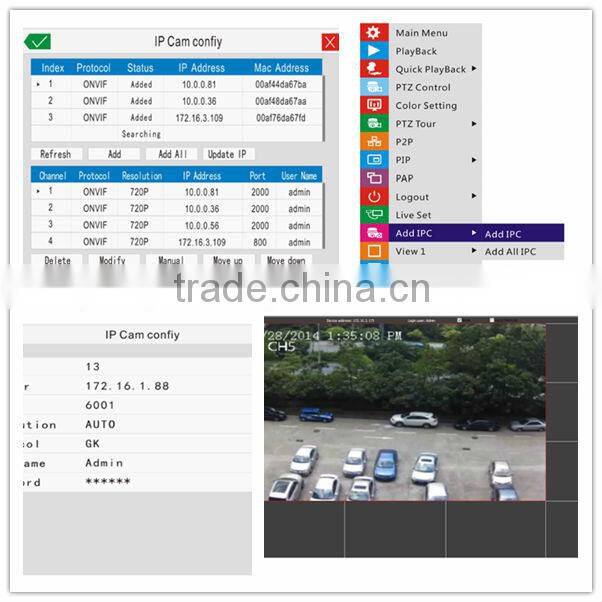

Add IPC to HVR

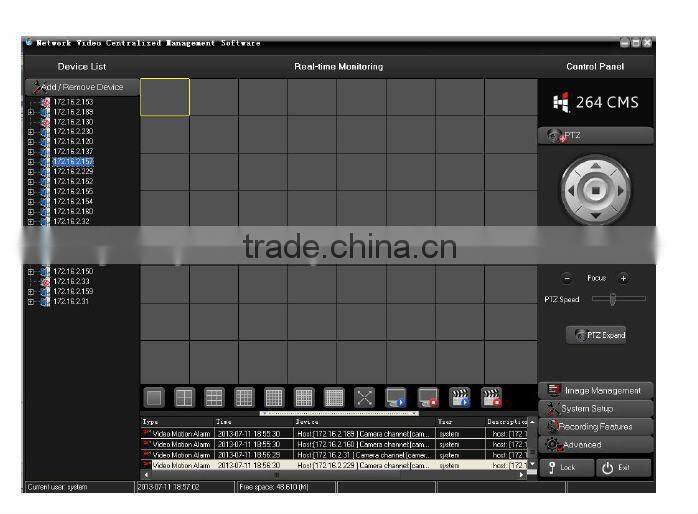

HVR CMS Interface

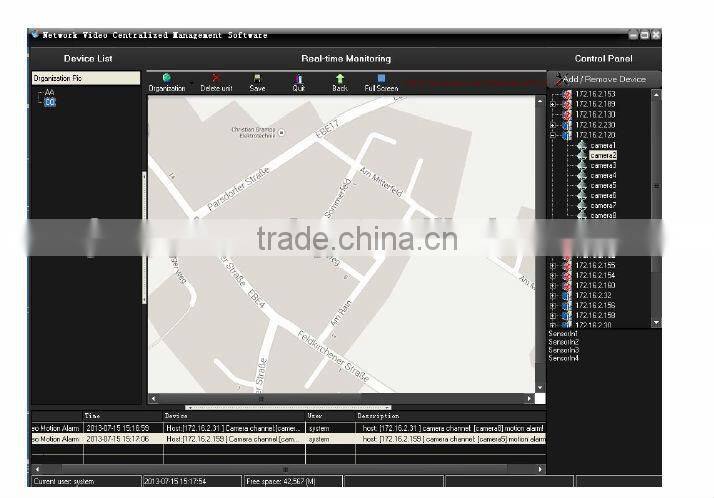

E-map

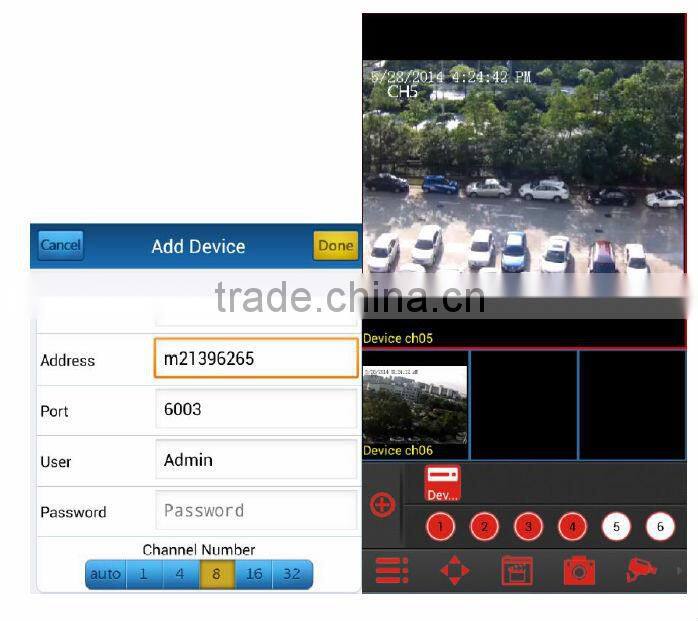

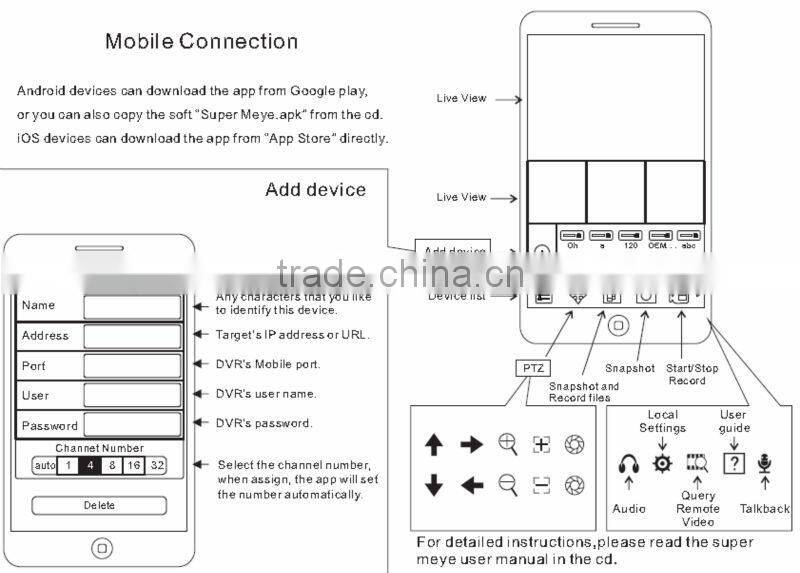

HVR P2P Mobile Phone viewer
Choose Joney, Choose Professional! High quality more competitive price !!! Contact:Vidya Skype:joneytech02
Welcome to visit our website for detailed information
www.joneysecurity.en.china.cn
