Home > Security & Protection > Access Control System > Access Controller > Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System

Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System

Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-1
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-2
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-3
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-4
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-5
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System thumbnail-6
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-1
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-2
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-3
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-4
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-5
Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access Control System photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney access control
Model Number:
JYC-08-WG26
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Joney access control
Model Number JYC-08-WG26



Product Description

                                                                Door access control system

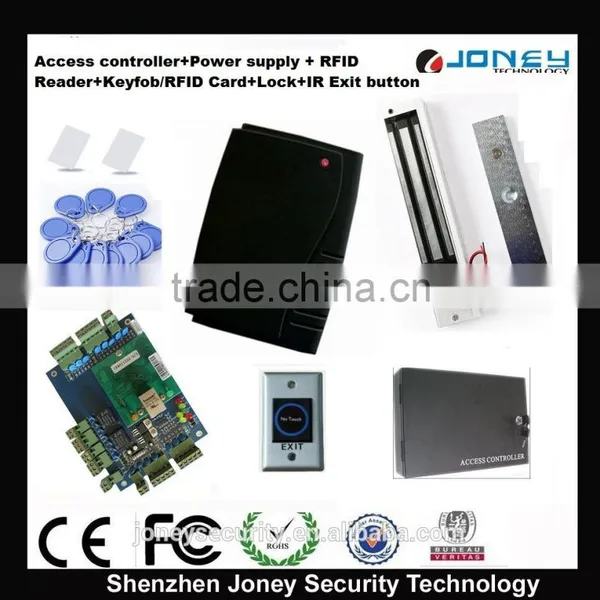

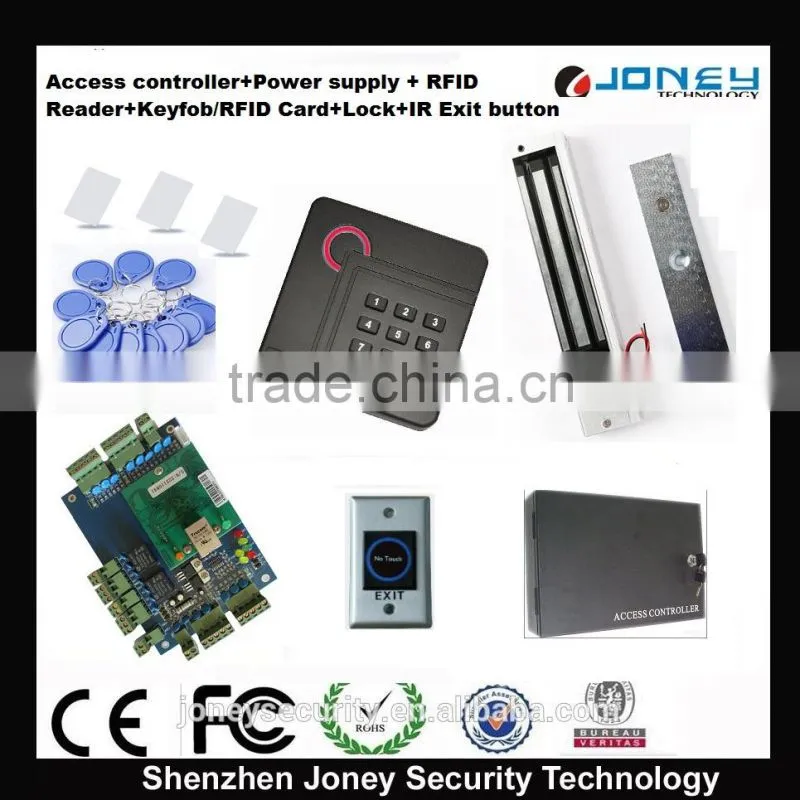

                 Access control device + lock + exit button + keyfob + power supply

Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access control system

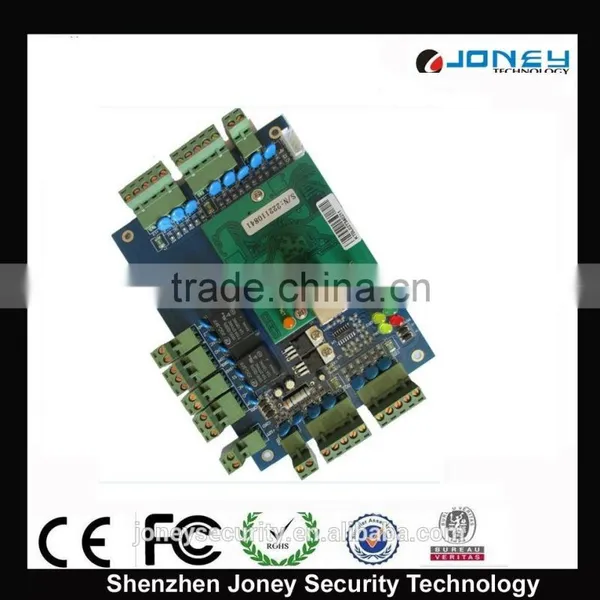

Door Access control system- -ACCESS CONTROLLER

*Support mobile phone remote control (NEW)

*TCP/IP / RS485/232 communiction/
*one door/two doors/four doors
*connect to two readers/four readers,
*20 000pcs cards management authority,

Door access control system--Iron Box & Power

Door access control system --RFID Reader

Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access control system

Model

JYC-08-WG26

Size

82x115x 22mm

Color

Black

Voltage

DC9~16V

Current

≤100mA

Ambient Temperature

-25°C~75°C

Reading Range

5~10CM

Output Format

Wiegand 26/34/RS485/RS232

Card Type

EM-ID/13.56MHZ-IC

Comunication Distance

WG≤100M,RS485≤1200M

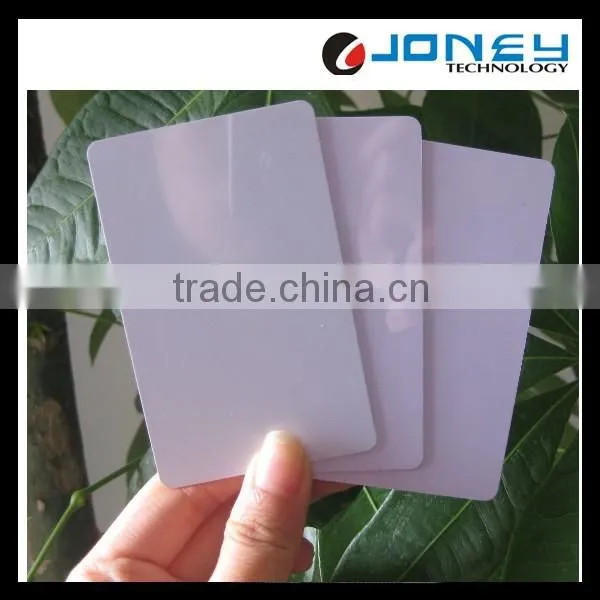

  Door access control system --RFID Card/RFID Keyfob tags

Discription of RFID Card
125KHz/ 13.56MHz contactless PVC Card
Physical
Chip
TK4100
TK28
JY 1 S50
TKS50
Width
54mm
54mm
54mm
54mm
Length
85.6mm
85.6mm
85.6mm
85.6mm
Reading distance
10cm
10cm
5-8M
5-8M
Weight
5.8g
5.8g
5.8g
5.8g
Logo
Offset or screen LOGO
Printing
Offset printing, silkscreen printing, personalization printing with signature panel, magnetic stripe— 350 Oe, 650 Oe,
Material
PVC/PET
Working temperature
-10-60 degree centigrade(PVC), -20-80degree centigrade(PET)
Frequency
125KHz/ 13.56MHz

    Door access control system--IR EXIT Button NO touch !

No touch / Touch free Exit Sensor (Diffused Detection)

Specifications:

· Contact Rating: 3A/AC120V,DC30V

· Input Volt.: DC 12V

· Simple and clear for operation.

· Operation temperature range -20.C 55.C

· Life: 100,000 Times

· Durable stainless steel plate

· Dimension: 115x70x29(mm)

· Weight: 85g



Door access control system--Magnetic Lock with LED(600Lbs)

Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access control system

Specification:
Product Electro magnetic Locks with LED
Voltage DC12V and DC24V adjustable
Main Features With LED and Feedback
Current Draw 12V/500mA 24V/250mA
Holding Force 280kg (600lbs)
Lock Size 250Lx47Wx25H(mm)
Armature plate 180Lx38Wx11H(mm)
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20°C
Operating Temp -10~+55°C(14-131F)

Door access control system---Free access control software



Access Controller+Power Supply+Exit Button+ Lock+Card RFID Access control system

  Door access control system---Mobile phone control APP New!



/app





*Shipping



Based on customer's demands to choose the most economical shipping terms.



We have strong cooperation with DHL,FedEX,UPS,EMS,TNT.



Our Services

*Delivery Time

3-7 working days,7-15 working days for bulk quantity.

*Warranty

2 years warranty & life long technical support.All products have been passed through strict quality control.

*Payment

We accept Paypal,Western Union or T/T before production.



Company Information

Shenzhen Joney Security Technology Co.,Ltd provide various specification

and items of CCTV cameras,PTZ cameras, IP cameras, Standalone DVR,

DVR card, related cctv accessories, Fingerprint device, access control system, Alarm products.
