Hot Password RFID Card Fingerprint Door Access Control System

Hot Password RFID Card Fingerprint Door Access Control System photo-1
Hot Password RFID Card Fingerprint Door Access Control System photo-2
Hot Password RFID Card Fingerprint Door Access Control System photo-3

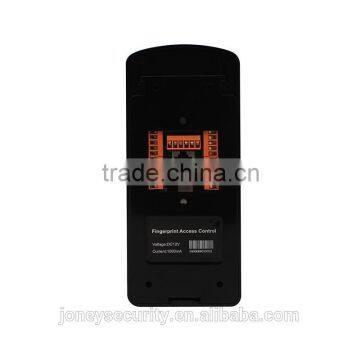

Hot Password RFID Card Fingerprint Door Access Control System photo-4
Hot Password RFID Card Fingerprint Door Access Control System photo-5

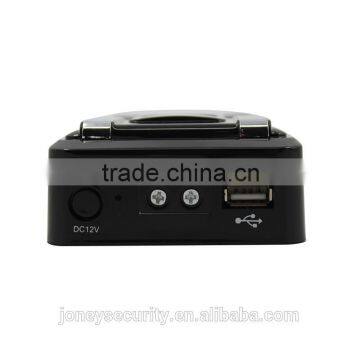

Hot Password RFID Card Fingerprint Door Access Control System photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney
Model Number:
JYF-F151
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Joney
Model Number JYF-F151

Door access control system



Fingerprint Access Control System for Home/ Office/apartment

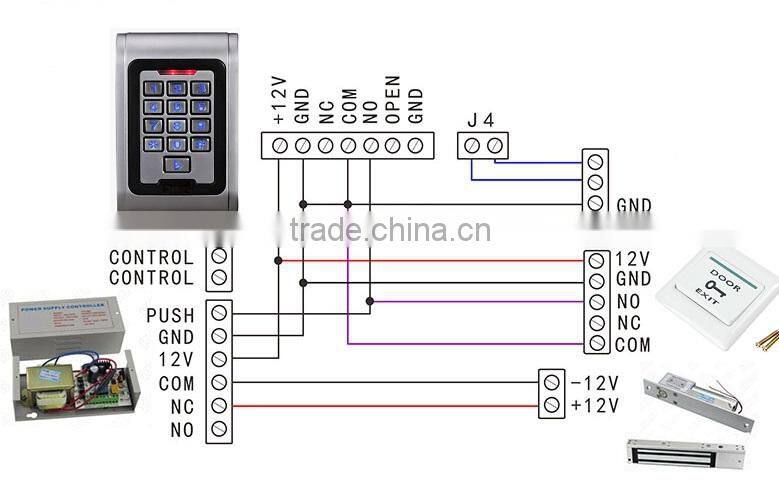

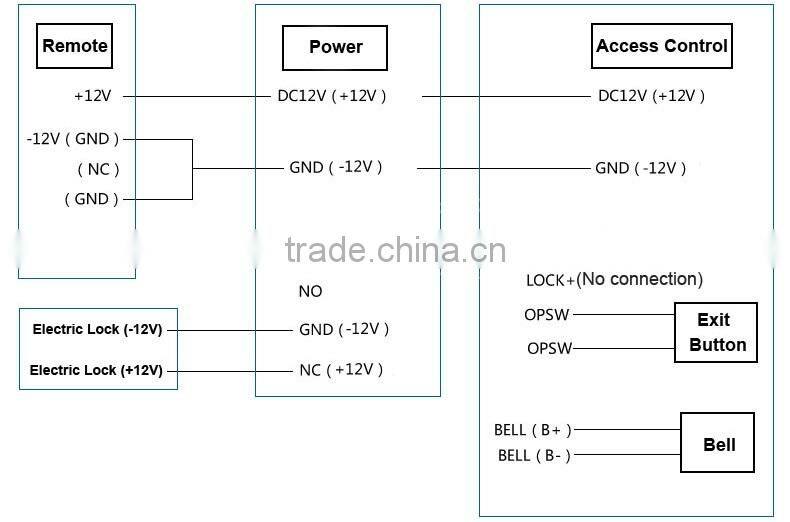

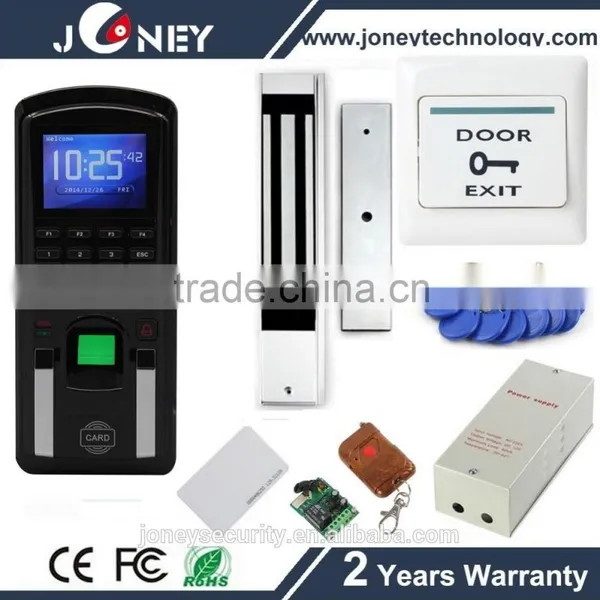

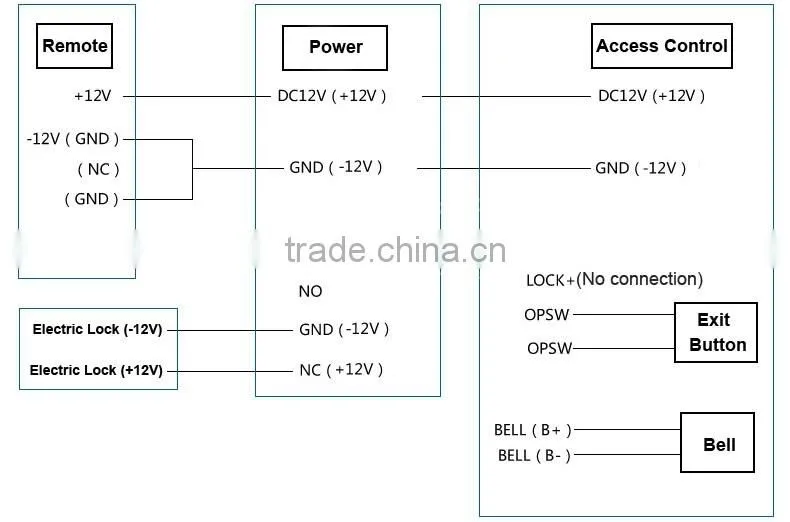

acces controller+Power Supply + Magnetic Lock + ID cards/ID Keyfobs + Exit button

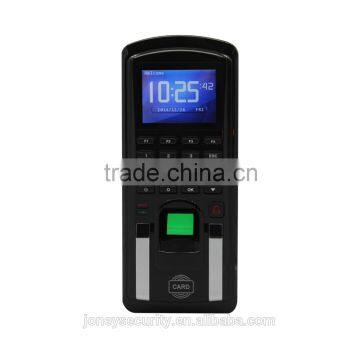

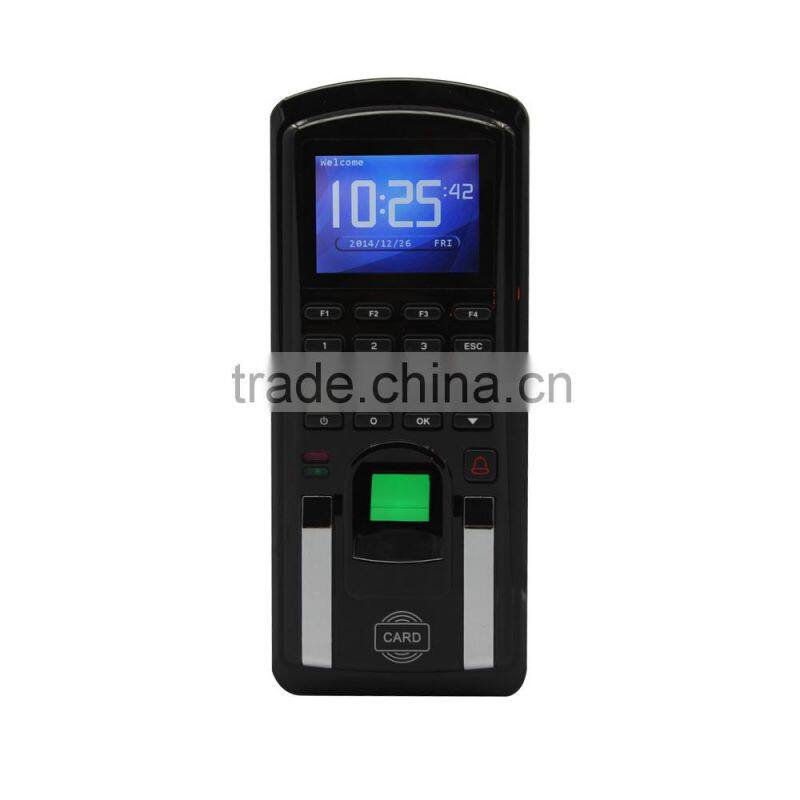

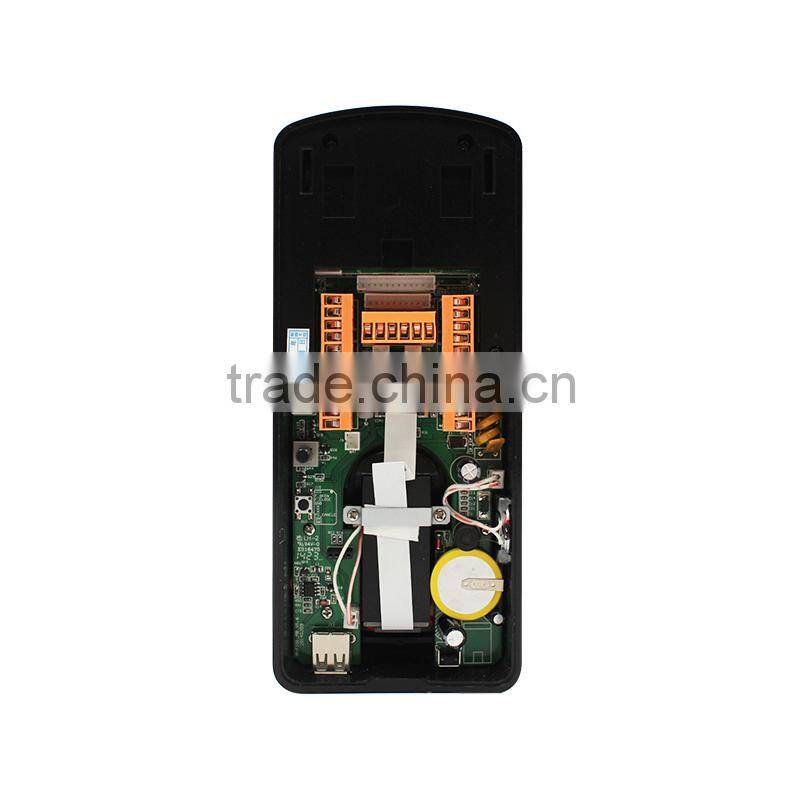

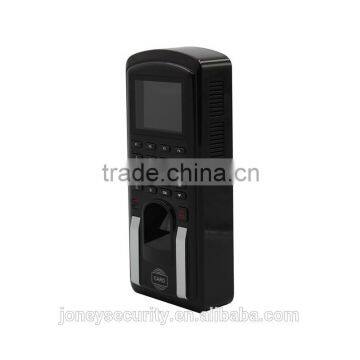

Hot Password RFID Card Fingerprint Door Access control systemFingerprint access controller

 Hot Password RFID Card Fingerprint Door Access control systemHot Password RFID Card Fingerprint Door Access control system



LCD Screen:2.4 inch TFT (320*240) Color Screen
User Capacity:1000 Fingerprint/Card
Communication:TCP/IP, RS485, USB-Host
Records Capacity:100,000

Authentication Method:Fingerprint/ RFID Card (125Khz, EM4100)/password



Access Control Interface:Wiegand26/34, Door Lock, Siren,Release Button, Doorbell, Door Sensor
Language:English ( Spanish/Arabic could be customized )



Power:DC 12V/2A

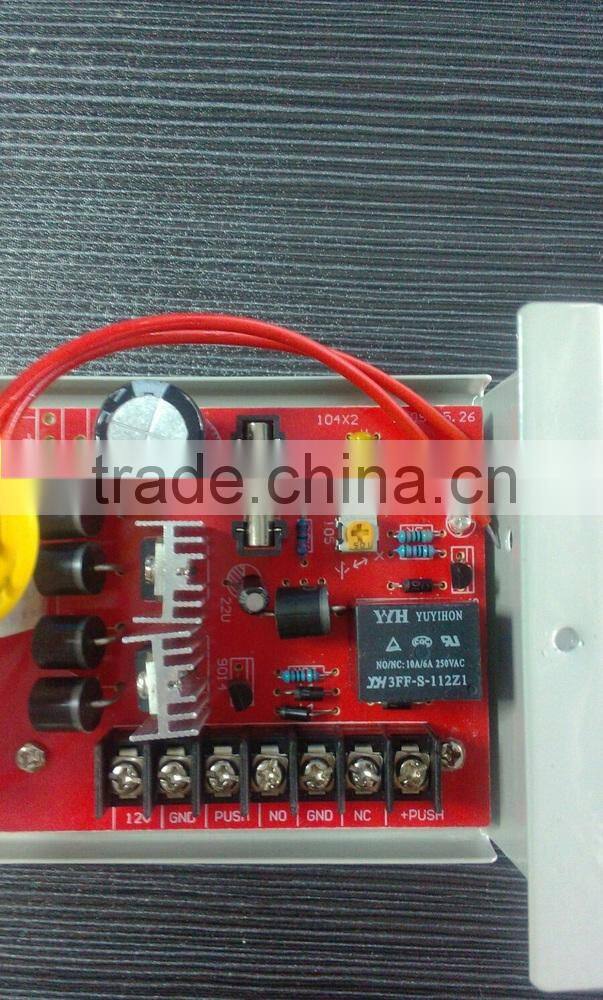

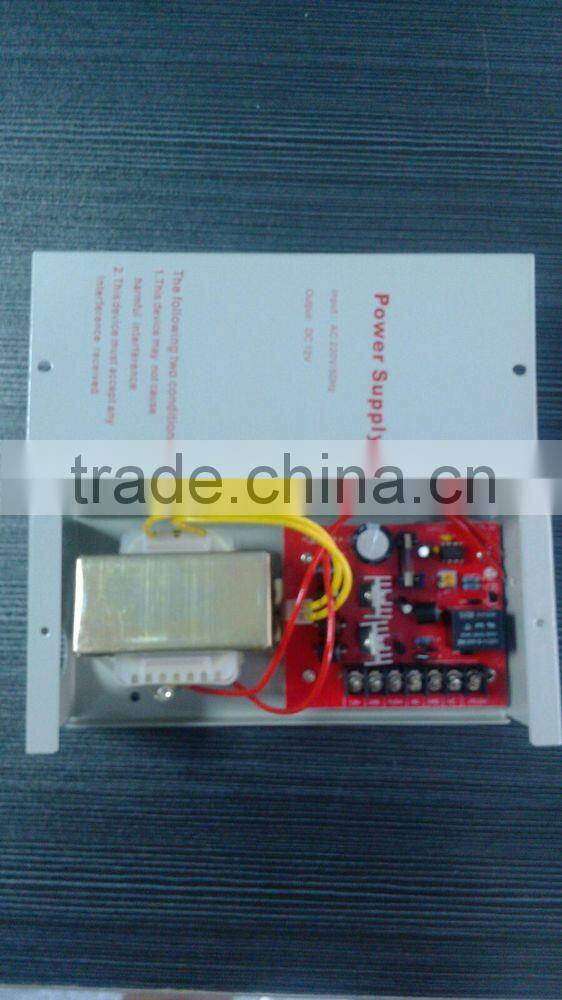

Power Supply FOR Access Control

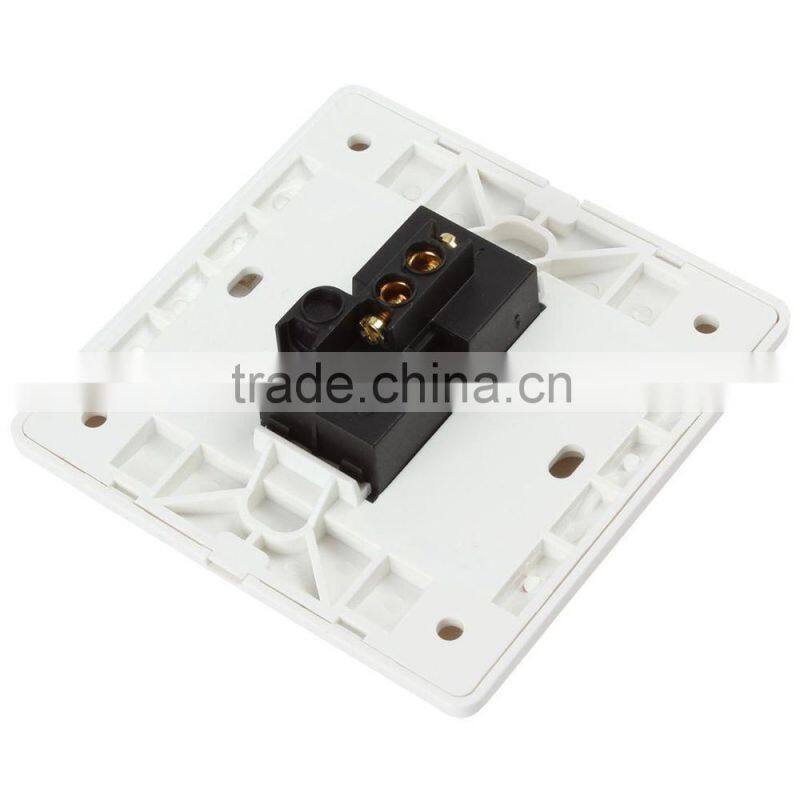

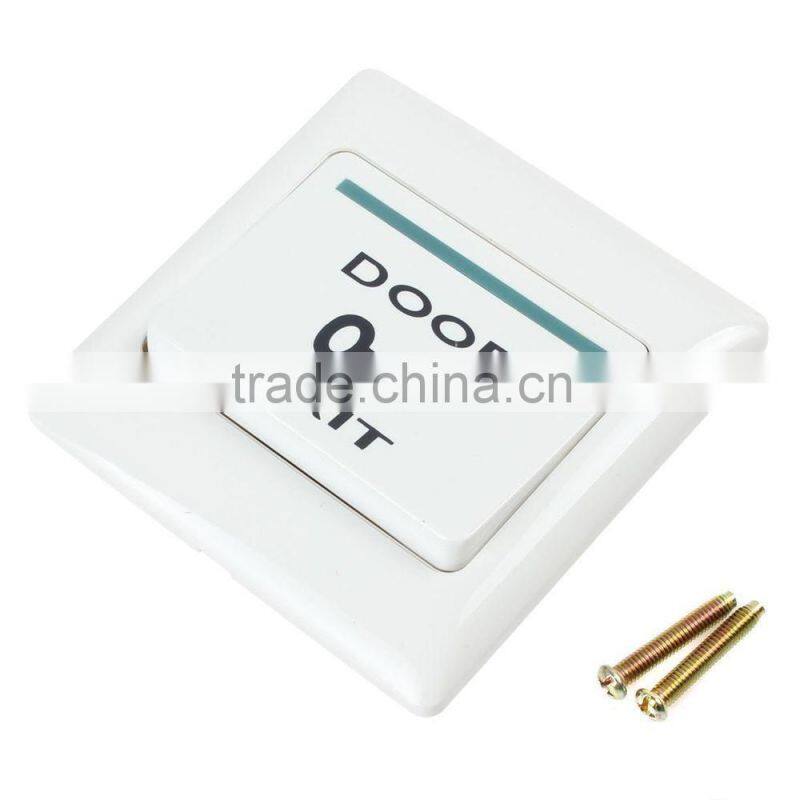

Access control system- Exit button
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.
  • Working voltage: DC12V
  • Working current: 3A
  • Face plate Size: 86mm x 86mm

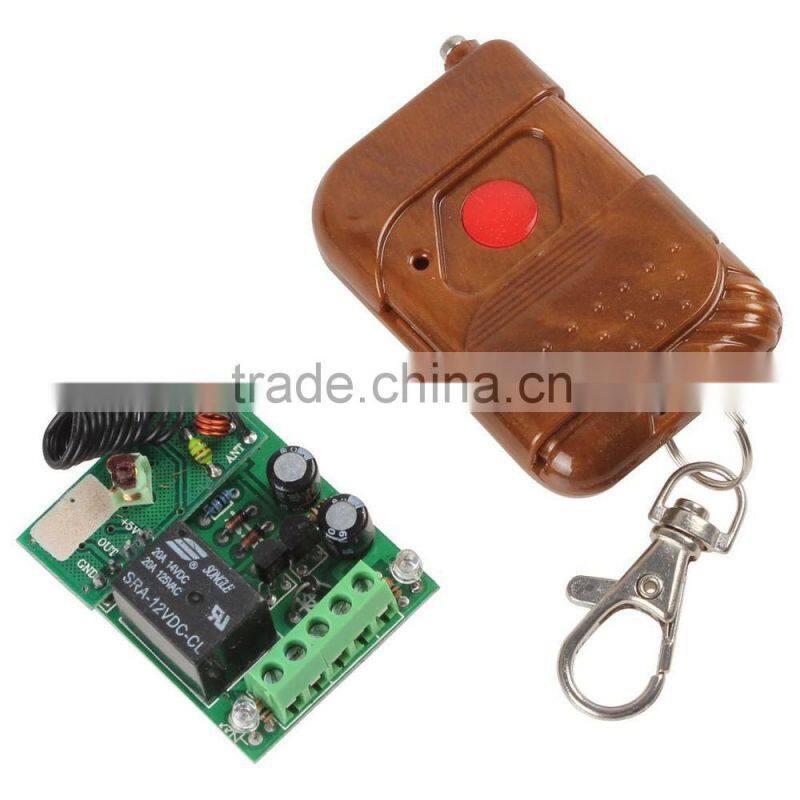

Access control--Remote Control:

With the remote control, you don't have to annoyance about to open the door, as long as in your access control system fitted with remote control, you can press the remote to open the door remotely, the distance reach up to 50 meters, very convenient.

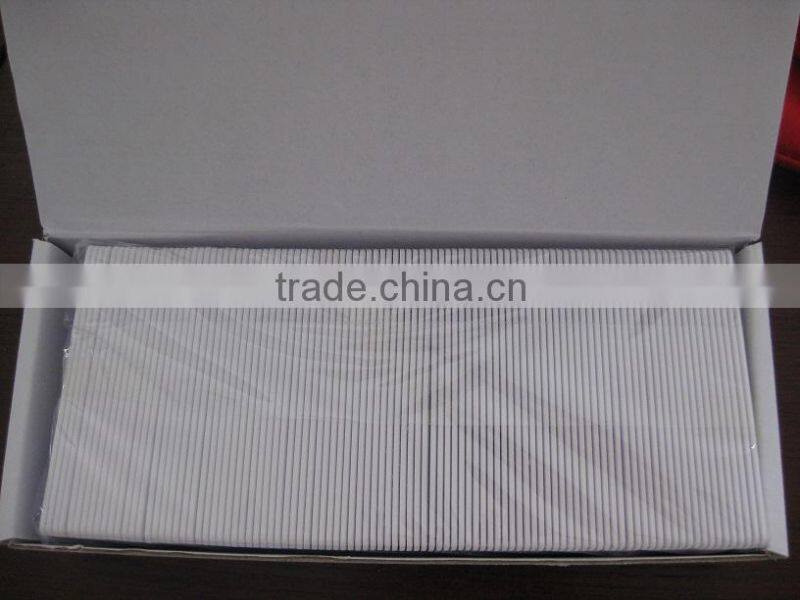

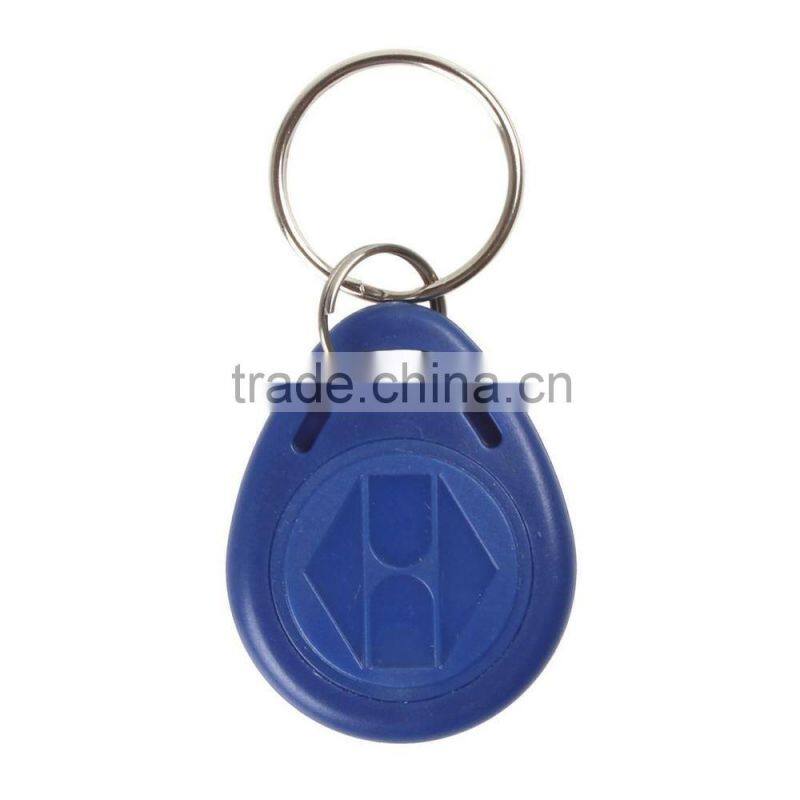

Access control-125Khz RFID Card/Key fob

  • Waterproof
  • Operation Frequency: 125KHz
  • Thinckess: 0.8mm
  • Detecting distance: 3-10cm
  • Compatible with all RFID ID card reader to gain access
  • Perfect for attendance system, access control system, identification, low frequency tag card, etc.

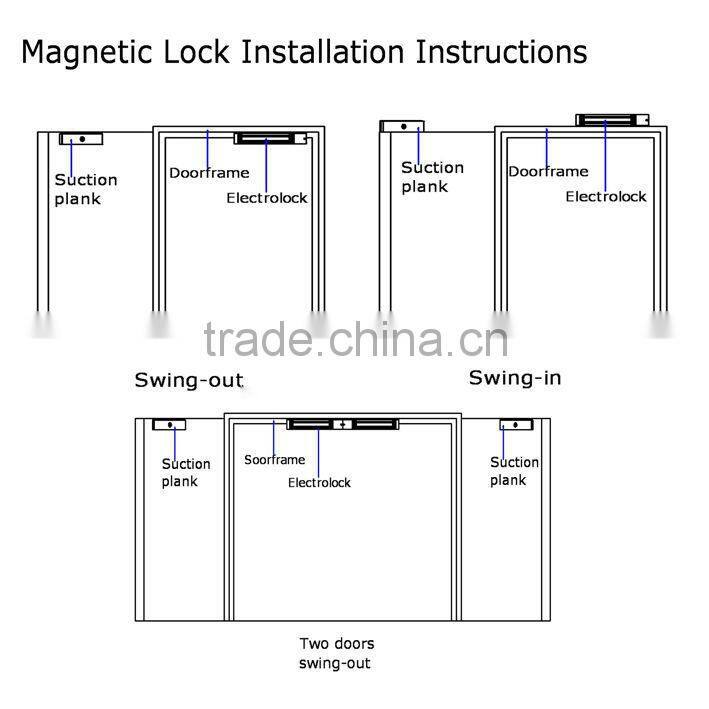

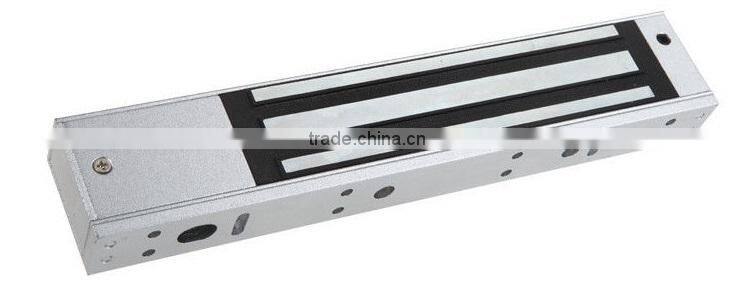

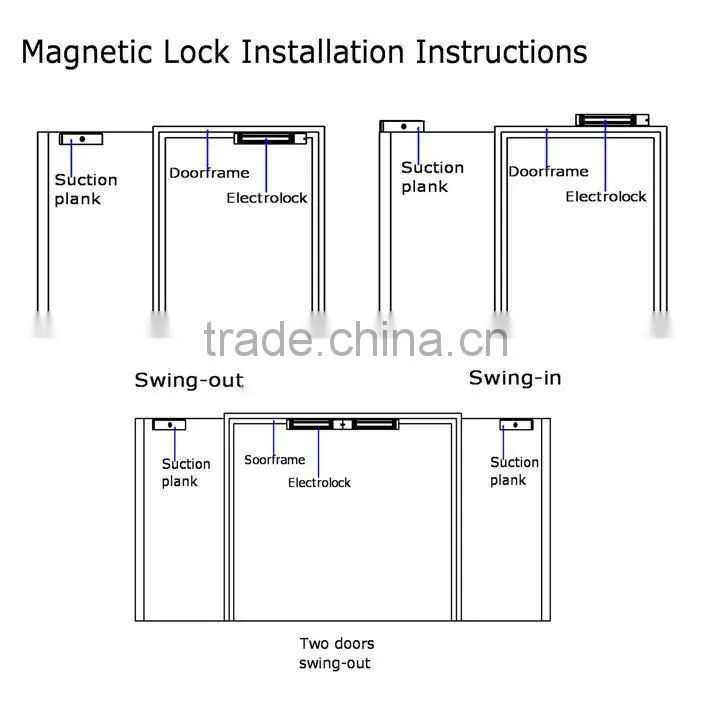

Access control- Electric Magnetic Lock



Lock Site:170L×40W×21H(mm)

Holding Force:180kg(300Lbs)
Current Draw:380mA at 12VDC, 190mA at 24VDC
Suitable for:Wooden Door,Glass Door, Metal Door, Fire Proof Door
Feature:Fail safe
Package includes (1 Set):
1 x 180kg Magnetic Door Lock
1 x Armature plate
Screws & Installation Kit x 1

User manual

 ACCESS CONTROL SYSTEM
