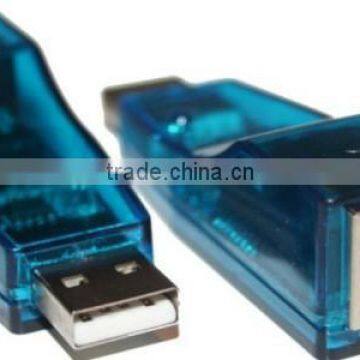

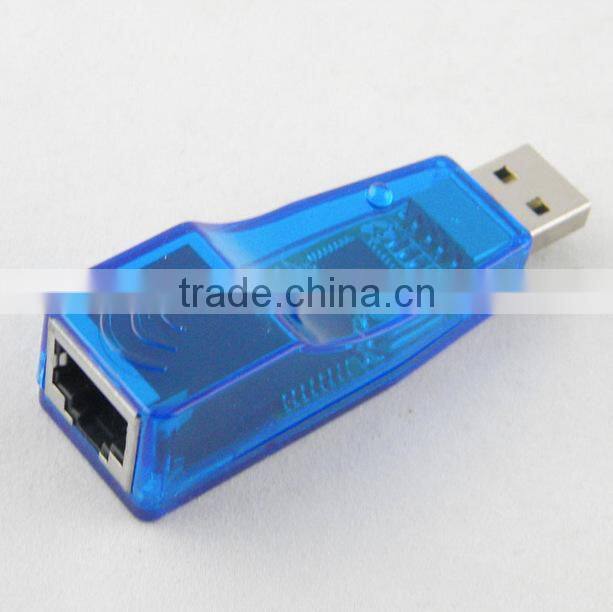

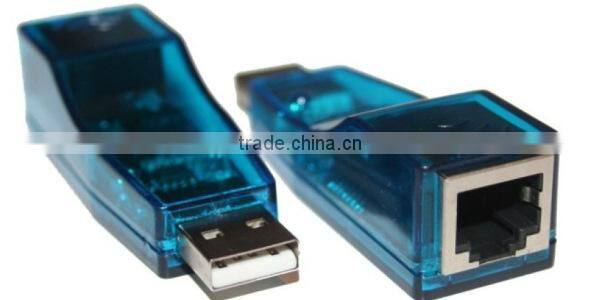

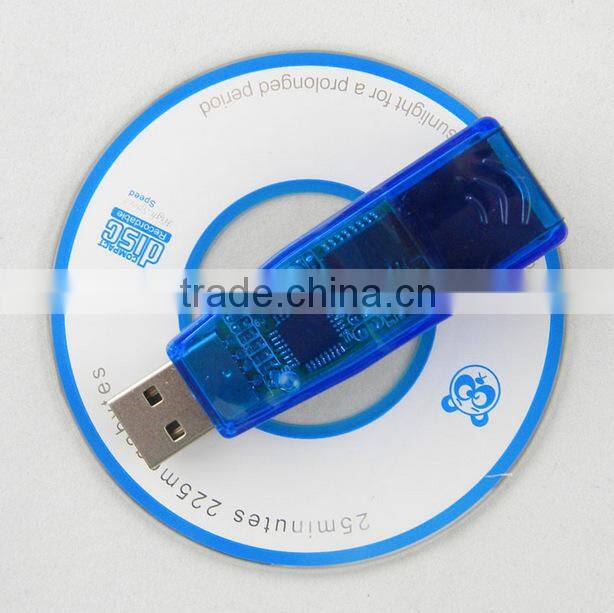

Help CenterUltra USB2.0 to 10/100 Ethernet LAN Adapter
Related Products
-
Ultra USB 1.1to 10/100 Ethernet LAN AdapterUS$ 1.35 - 1.49MOQ: 100 Pieces -
Mini USB Microphone for PC Laptop Desktop Studio MicrophoneUS$ 2 - 3.5MOQ: 10 Pieces
-
2015 New Metal Material LED USB Light Book Lamps 10 LEDs Flexible 6 Colors Reading Bulb for Notebook Laptop PC ComputerUS$ 0.9 - 1.2MOQ: 100 Pieces
-
Usb Flexible Led Work Ligh Mini LED Light USB Flash LED Light For Power Bank ComputerUS$ 0.9 - 1.2MOQ: 100 Pieces
-
Fashion Mini Flexible 10 LEDs USB Light Computer Reading Lamp for Notebook Laptop Computer Desktop PC Keyboard WholesaleUS$ 1.6 - 1.8MOQ: 100 Pieces
1.Classical design, easy to use. |
2.Compliant with Tablet computers, adjust to MAC OS system. No driver required with apple Tablet computer. |
3.Broadband network with USB interface data transmission, apply to the desktop and laptop computers. |
4.Support hot swaps. |
5.Various of color shell, neutral English clamshell packaging carton. |
6.This device complies with USB Specifications 1.0 and 1.1, and uses a USB type A connector to connecter to the USB host device drows power from the USB host bus, therefore no external power supply is required. |
7.Support full-duplex data flow control (IEEE802.3X). |
8.Support Protocol: IEEE 802.3u standard. |
9.Support Performance USBV1.1 standard, Support full-duplex and half-duplex transmission speed for 10 and 100 Mbps operation. |
10.Interface: USB,RJ45. |
11.Integrated Fast Ethernet MAC, Physical Chip and transceiver in one chip. |
12.Supports 10 Mb/s and 100Mb/s N-Way Auto-negotiation operation. |
13.Support all USB standard command. |
14.Supports Suspend/Resume detection logic. |
15.18K bytes SRAM built in. (2K bytes for Tx buffer, and 16K bytes for Rx buffer). |
16.Support System: Windows/2000/2003/XP/Vista/7/Linux/WinCE(5.0 6.0)/ANDROID(2.1 2.2 2.3 4.0)/MAC |
1.Chip |
AX88772A |
2.Connection Speed |
10M/100Mbps |
3.Operating voltage |
4.2-5.5V |
4.Power |
1W |
5.Operating Frequency |
48MHz/125MHz |
6.Operating temperature |
-25 °C ~ +70 °C |
7.Storage temperature |
-40 ~ 85 °C |
8.Relative Humidity |
10% ~ 80% (non-condensing) |
9.Operating Current |
180MA/5V |
