Smart Car Parking System 15m Long Range Rfid Reader Access Card Reader
- Shenzhen
- Credit Card
You May Like
-
5-15cm Low Consumption WG26 Rfid Reader Card Reader
-
High Quality Low Cost WG26 Reader With EM/ID Rfid Card
-
New Plastic Standalone Rfid Reader With WG26/WG34 Optional
-
125khz Rfid EM/ID Card Reader With WG26/WG34 Optional
-
Low Power Consumption Keypad Proximity Reader With WG26/34 Optional
-
Keypad Smart Card Reader With WG26 Interface by EM/ID Card
Product Details
| Place of Origin | Guangdong, China | Brand Name | Joney | |
| Model Number | JYA-LR0703 |
Product Description
Specifications
1. Smart car parking system 15m long range rfid reader access card reader2.RS232/WG26/RS485/ RJ45 optional
3.2 yrs warranty
Smart car parking system Long Range RFID Reader access card reader
Introduction: Long Range RFID Reader access card reader smart car parking system

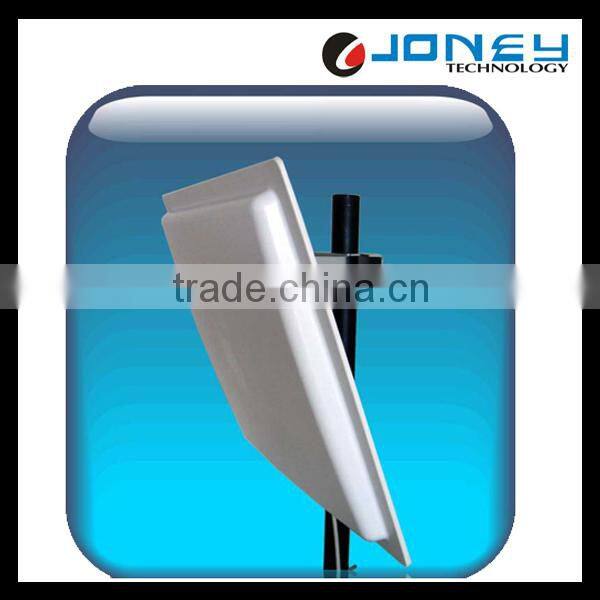

JYA-LR0703 is a long distance UHF RFID card reader. Its sensity range can reach 15 meters.
With 860mhz-960mhz frequency, it can allow fast recognition and reaction.
Features: Long Range RFID Reader access card reader smart car parking system
> RS232/WG26/RS485/ RJ45( optional)
> 860Mhz~960MHz,
> Read range can up to 15meters
> Size: 450×450×120mm
Specification: Long Range RFID Reader access card reader smart car parking system
Performance Index | |
Frequency range | 860-960MHZ |
FM mode | FHSS or fixed frequency, set by the software |
RF output | 30dBm adjustable;50Ω load |
Communication interface | RS232,RS485,RJ45,WG26 optioanl |
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface | 12 pin + 4 pin |
Power dissipation | average<5W |
Application software | Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance | up to 15 meters |
Air interface | EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension | 450*450*120mm(excluding mounting bracket and external wiring) |
Power supply | 12V DC |
Weight | 7.0Kg |
Installation | Embrace rod mounting |
Diameter of support rod | 40-50mm |
Humidity | 5%-95%, non-condensing |
Protection grade | IEC IP65 |
Operation temperature | -20 ºC to +60 ºC |
