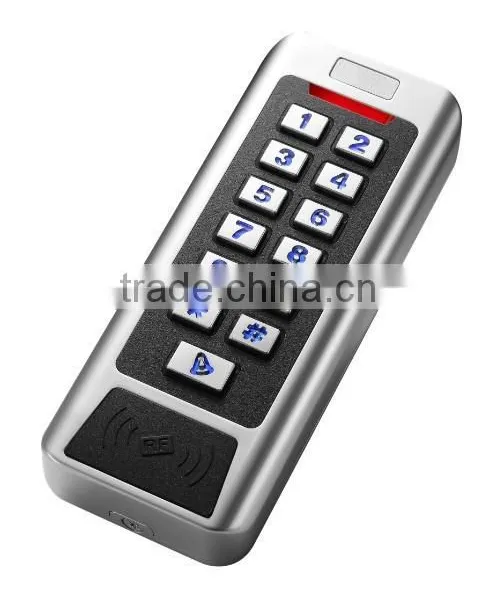

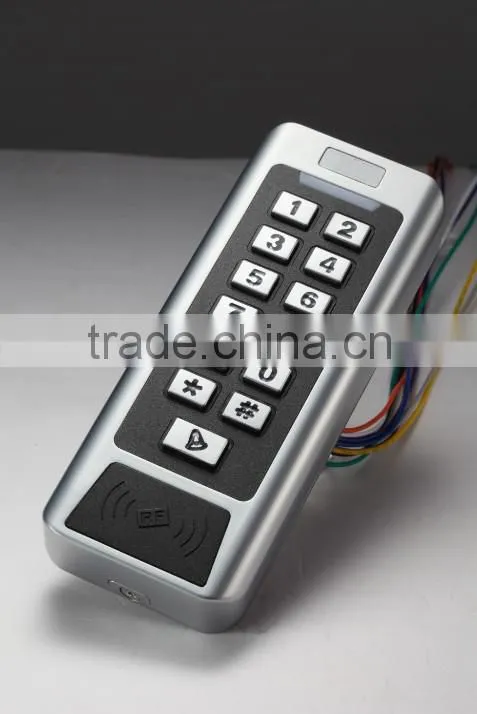

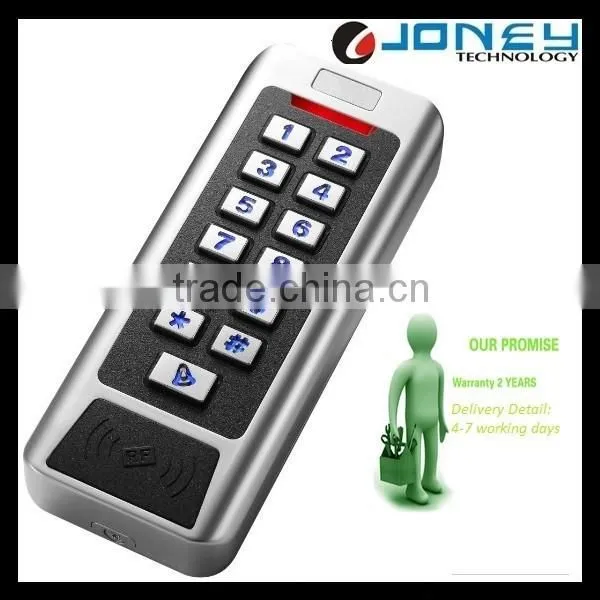

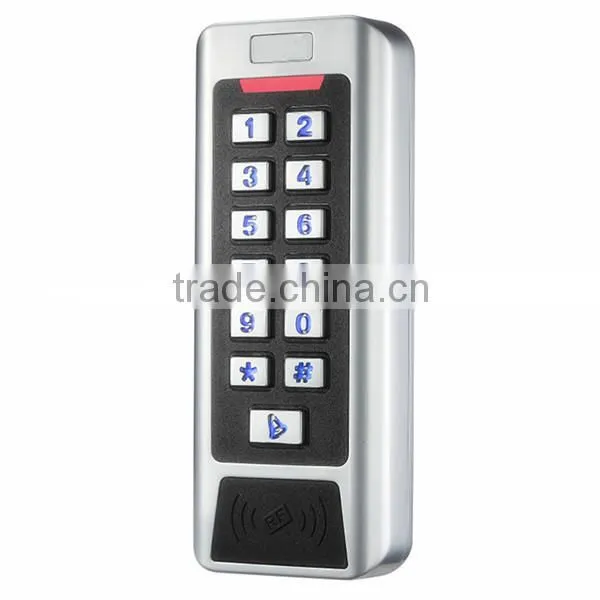

Waterproof Two doors standalone access control keypad wiegand proximity rfid reader JYA-CC2EM
1. Waterproof two door access control
2. Pure Zinc alloy case; waterproof IP 68
3. 2 relays, supports up to 2000 users in total for 2 doors
4. With external reader for two doors, Wiegand in/out
5. Anti- passback for two door
6. multi way of backlighting optional
CC Series is a standalone for two doors, support card, pin, card+pin access way. It is with 2 relays to control 2 doors and supports up to 2000 users in total, each user can possess one card and one pin.
It can directly drive Lock, Alarm, Ring Bell, and also can connect with Exit Button and Door Contact.
There are 7 working mode with this device. 1. Wiegand Reader, 2. Standalone for single door, 3. Standalone for two doors, 4. With external reader for two doors 5. Two units interlocked for two doors, 6. Anti-passback for single door, 7. Anti-passback for two door.
Besides, it also supports 1 Master code, 2 Manager card, 2 Anti-duress Card users and 2 Anti-duress PIN users, providing users with easy operations and safety reliability.
Features:
1. Pure Zinc alloy case; Waterproof conform to IP 68
2. Built-in 125KHz OR 13.56MHz card reader (CC1)
Built-in 125KHz and 13.56MHz card reader (CC2)
3. Perfect digital backlit key, the back light can be set to Normal ON, Normal OFF or Human-Approach ON
4. With anti-tamper Alarm, door contact Alarm, Anti-duress Alarm function
5. Add and delete card user quickly With Manager cards
6. Can register and delete user via keypad
7. Master can open the door when entering the setting status
8. Multi working modes: Reader, one door, two door, interlock, anti-passback and so on, suitable for many occasions
Specification:
| Operating Voltage | DC 12V±10% |
| User Capacity | 2000 |
| model type | Access control standalone for two doors |
| Active Current | <60mA |
| Idle Current | 25±5 mA |
| Lock Output Load | Max 3A |
| Alarm Output Load | Max 20A |
| Operating Temperature | -45~60 degree |
| Operating Humidity | 10%- 90% RH |
| Waterproof | Conforms to IP68 |
| Adjustable Door Relay time | 0 -99 seconds |
| Adjustable Alarm Time | 0- 3 minutes |
| Wiegand Interface | Wiegand 26-37 bit |
| Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
