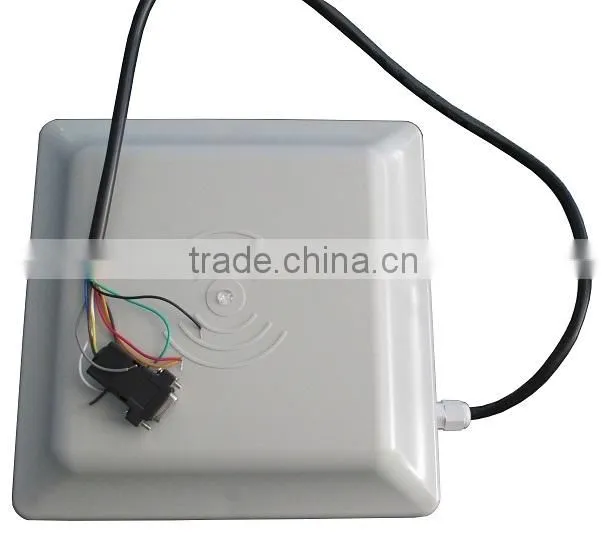

6 meters Middle range UHF card reader with TCP/IP/RS232/RS485/Wiegand 26/Wiegand 34
JYF-LR0702
>UHF card reader
> RS485,RS232,Wiegand26,Wiegand34,RJ45(TCP/IP optional ),CANBUS
> 860Mhz~960MHz,
> Read range can up to 1 to 6 meters
> Size: 227×227×60mm
1 to 6 meters Parking Lot uhf rfid reader
JYA-LR0702 is a UHF card reader. With 860mhz-960mhz frequency, it can allow fast recognition and reaction. Its reading distance can reach 6 meters, allow users pass through conveniently.
Performance Index | |
Frequency range |
860-960MHZ |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable ; 50Ωload |
Communication interface |
RS485,RS232,Wiegand26,Wiegand34,RJ45(TCP/IP optional ),CANBUS |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
12 pin + 4 pin |
Power dissipation |
average<5W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
1-6 meters |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Power supply |
12V DC |
Installation |
Embrace rod mounting |
Diameter of support rod |
40-50mm |
Humidity |
5%-95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20°C to +60°C |
