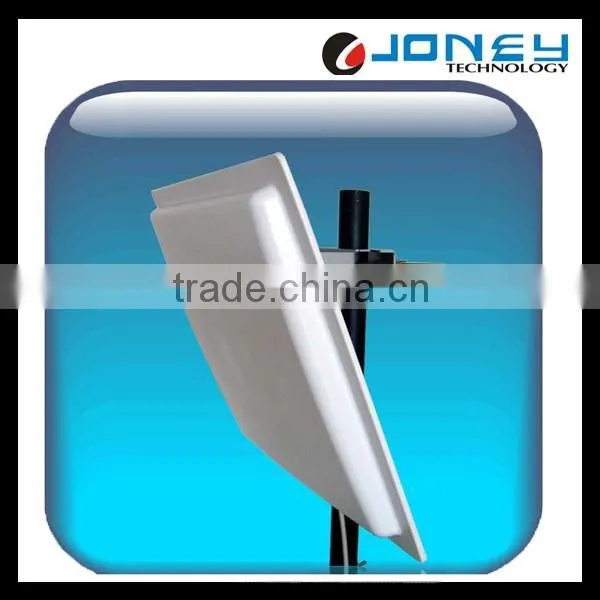

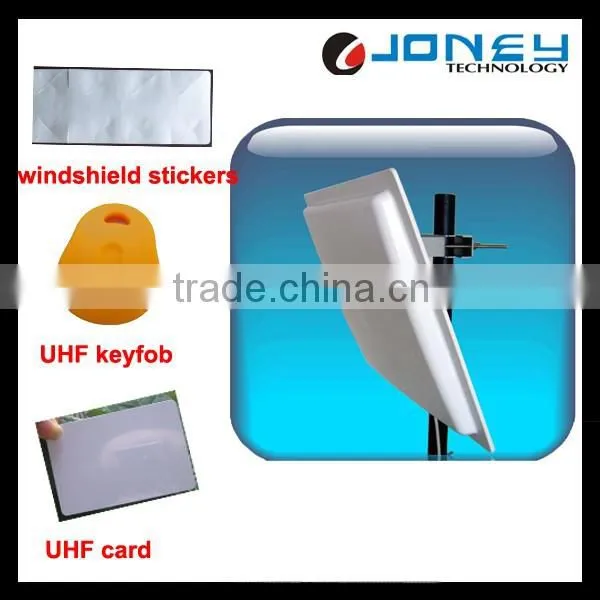

Smart car parking system long distance UHF reader 15m long range rfid reader
Long range RFID Reader Introduction:
JYA-LR0703 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Long range RFID Reader Features:
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 860~960MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 12dbi antenna optional with effect distance up to 8m-15m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
Long range RFID Reader Specification:
Performance Index | |
Frequency range |
860-960MHZ |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable;50Ω load |
Communication interface |
RS232,RS485,RJ45,WG26 optioanl |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
12 pin + 4 pin |
Power dissipation |
average<5W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
up to 15 meters |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
450*450*120mm(excluding mounting bracket and external wiring) |
Power supply |
12V DC |
Weight |
7.0Kg |
Installation |
Embrace rod mounting |
Diameter of support rod |
40-50mm |
Humidity |
5%-95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20 ºC to +60 ºC |
