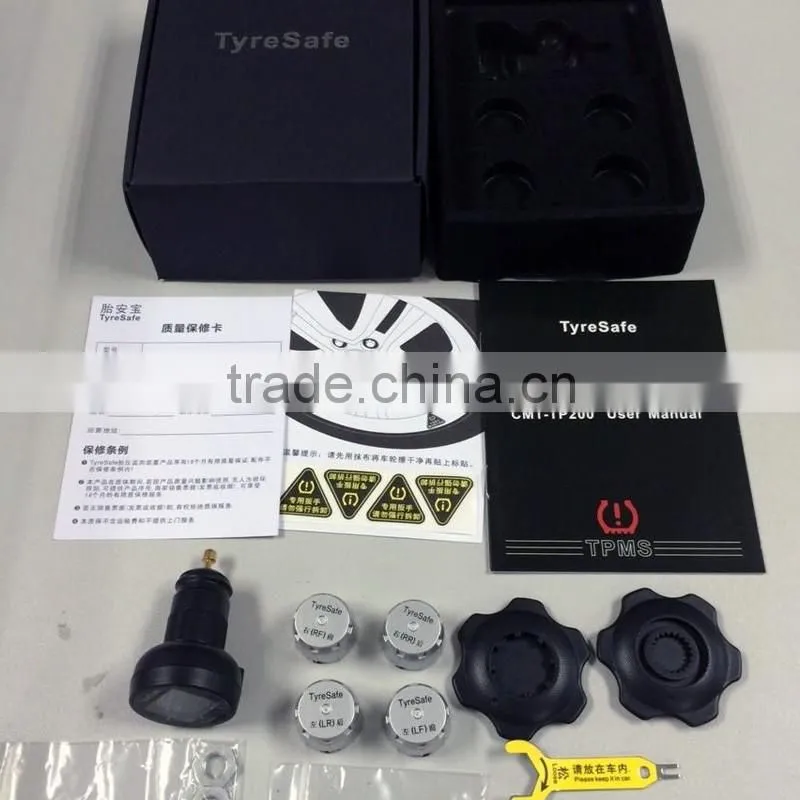

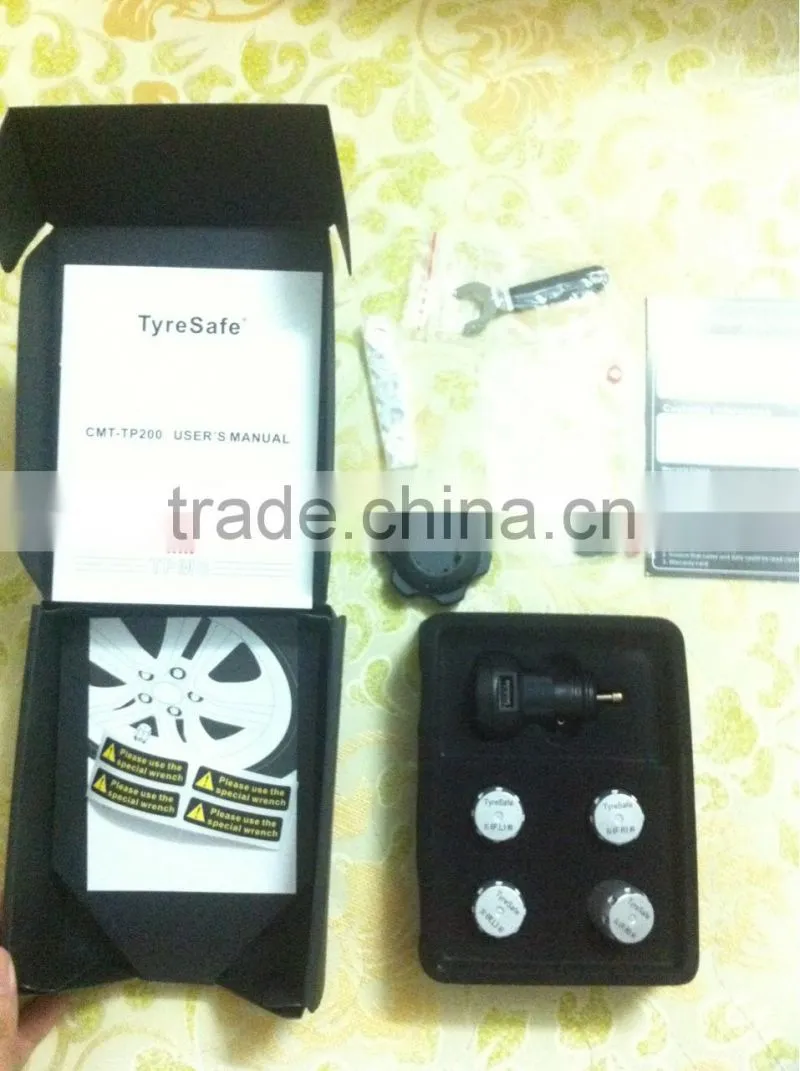

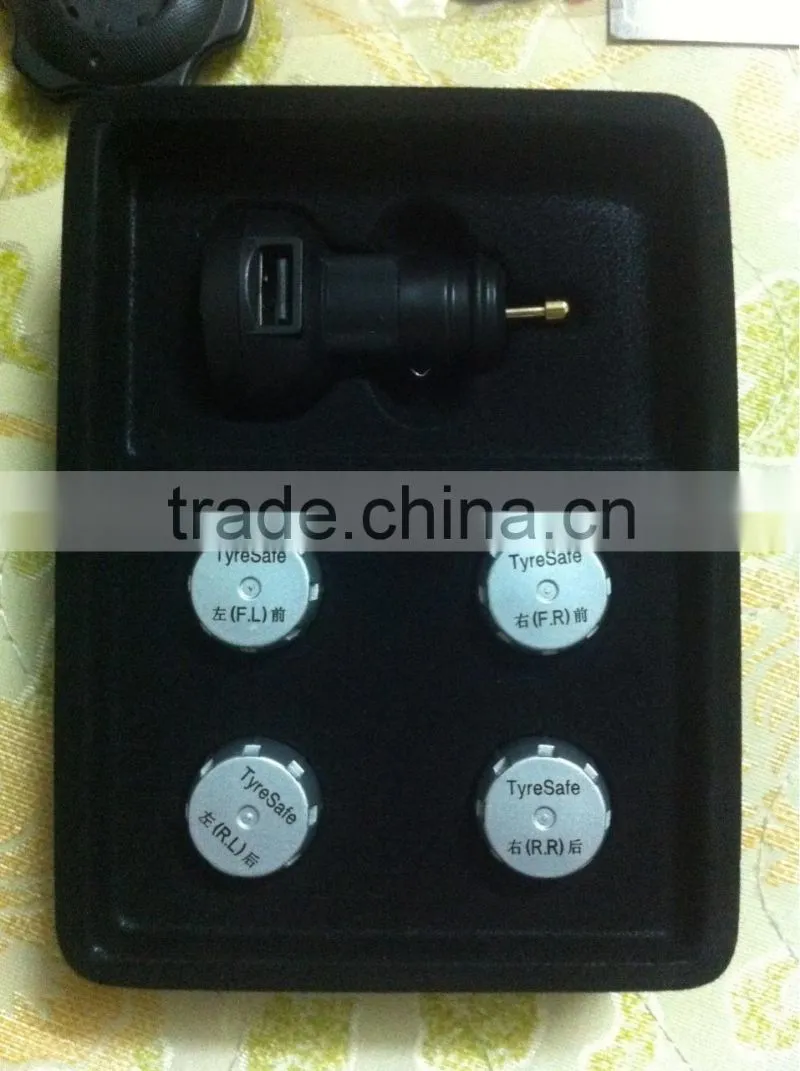

1. TPMS Model TP200 components:

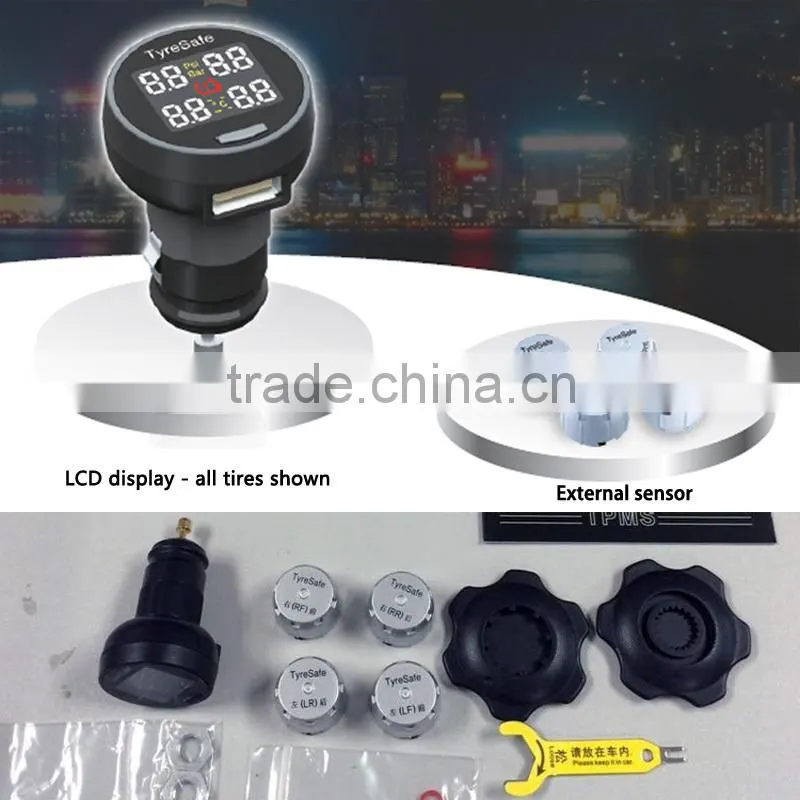

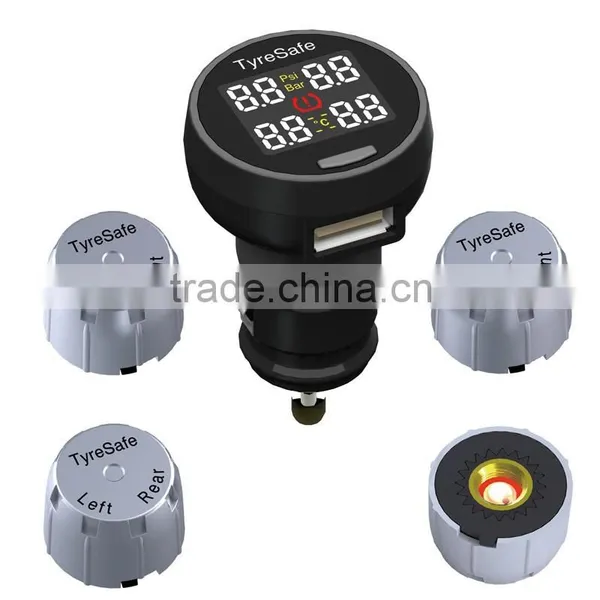

1 Display with cigarette charger 4 external mounted sensors
2. Product Features
(1) Real time monitoring tire pressure and temperature.
(2) Display show pressure of all 4 tires on screen.
(3) Display show temperature of all 4 tires on screen by pressing button.
(4) Display show which tire is abnormal.
(5) Powerful function include low pressure, high pressure, leakage, high temperature alarm.
(6) Alarm with beep sound and display screen red light flashing.
(7) Sensor battery changeable.
(8) Display powered by vehicle battery.

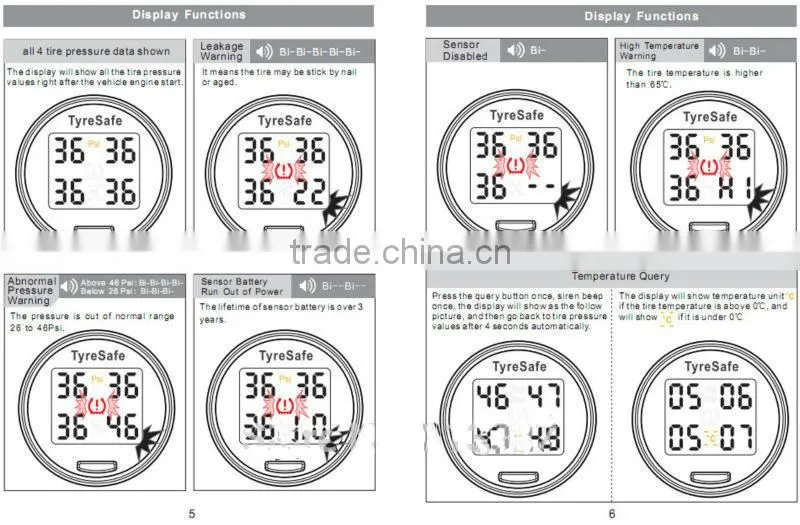

Alarm Function
(1) Leakage alarm: The pressure decrease over 0.3Bar in 5 minutes
(2) Low pressure alarm: The pressure is lower than 1.8Bar
(3) High Pressure Alarm: The pressure is higher than 3.2Bar
(4) High temperature alarm: The temperature of tire is over 65°C
(5) Low power of sensor alarm: The power of any sensor is less than 2.2v
(6) No signal alarm: Missing some sensors’ message after it start to work
Operating Functions
(1) Set up sensor: learn new sensor ID code when replace sensor
(2) Pressure unit can be switched between Bar and Psi
(3) High and low pressure alarm value can be adusted by users
Display
Input Voltage: 12±3V
Static Current: < 20 mA
Operative Temperature: -40°C~+85°C
LCD: -30°C∼+80oC
Operative Humidity: 5∼98%
Sensor
Pressure Range: 0Kpa ~ 350Kpa / 0Bar ~ 3.5Bar
Battery Life: >3 to 5 years
Static Current: < 0.7μA
Operating Current: < 12mA
Operative Temperature: -40oC ~ +125oC
Pressure Error: ±10kpa / ±0.1Bar
Temperature Reading Accuracy: ±2oC
Operative Humidity: 5∼98%
