High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge

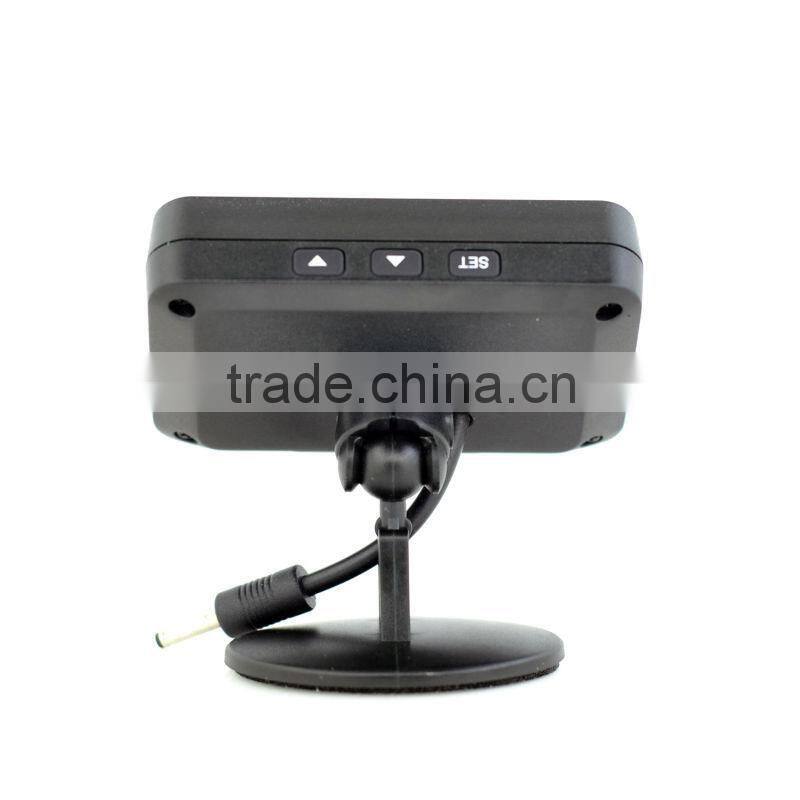

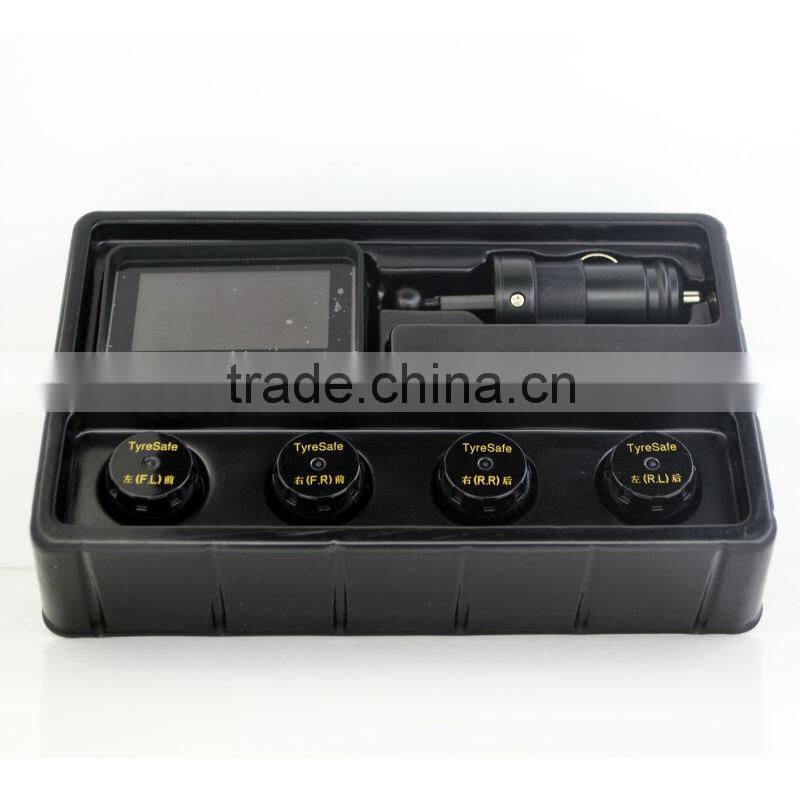

High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge photo-1
High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge photo-2
High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge photo-3
US$ 52 - 60 MOQ: 5 Sets
Key Specifications
Get Latest Price
Max Pressure:
> 200Psi
Type:
Digital
Certification:
Other, NO
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Digital
Certification Other, NO
Voltage 12V
Place of Origin Guangdong, China
Model Number TP-300
Warranty 1 Years

High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge

(1) Real time monitoring tire pressure and temperature.

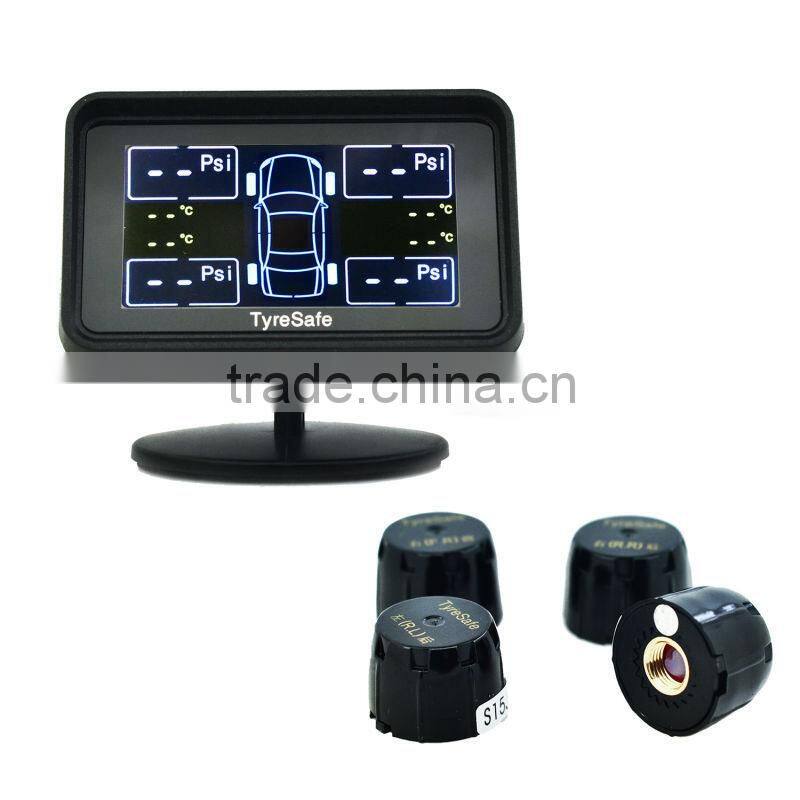

(2) Display show pressure of 4 tires on screen all tires shown.

(3) Display show which tire is abnormal.

(4) Powerful function include low pressure, high pressure, leakage, high temperature alam.

(5) Alarm with beep sound and display screen red light flashing.

(6) Sensor battery changeable.

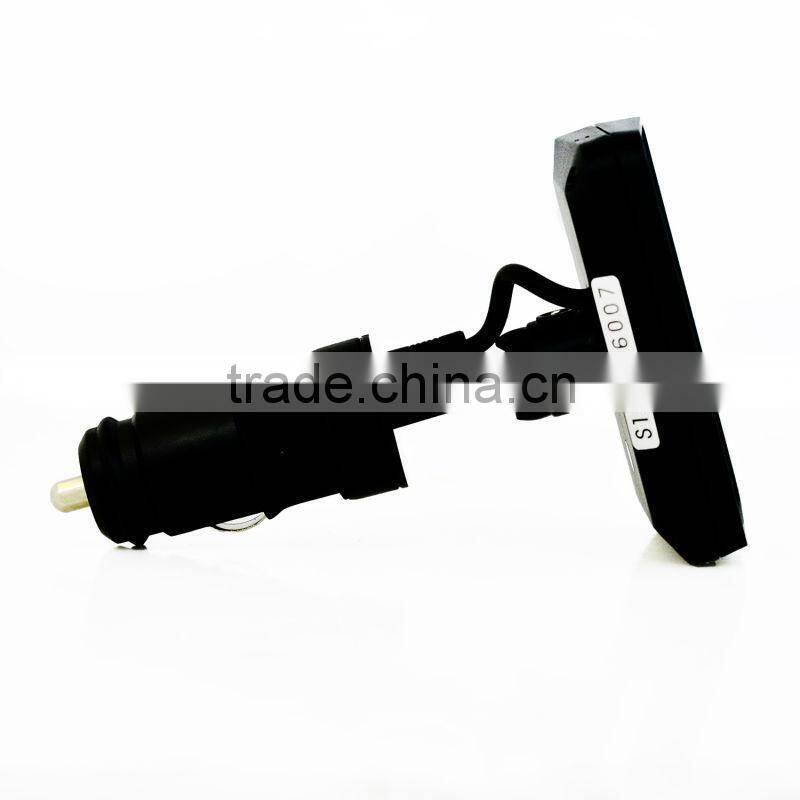

(7) Display powered by vehicle battery.

(8) Support PSI and Bar pressure unit.

(9)  2.1inch Screen

(10)  Product size: 2.3 x 2.4 x 1.5 in

Alarm Function:

(1) Leakage alarm: The pressure decrease over 0.3Bar in 7 minutes

(2) Low pressure alarm:  The pressure is lower than 1.7Bar

(3) High Pressure Alarm: The pressure is higher than 3.3Bar

(4) High temperature alarm: The temperature of tire is over 65°C

(5) Low power of sensor alarm:  The power of any sensor is less than 2.2v

(6) No signal alarm: Missing some sensors’ message after it start to work

Operating Functions

(1) Set up sensor: learn new sensor ID code when replace sensor

High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge

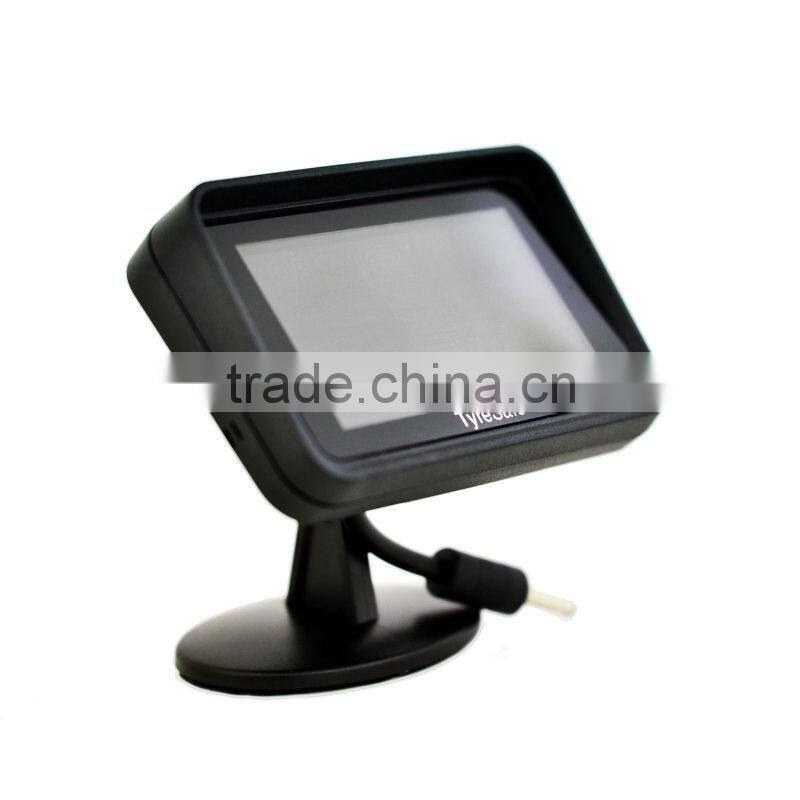

1. Display

Input Voltage: 12±3V

Static Current: < 30 mA

Operating Temperature: -40 ~ +85 degrees Celcius

Operating Humidity: 5∼98%

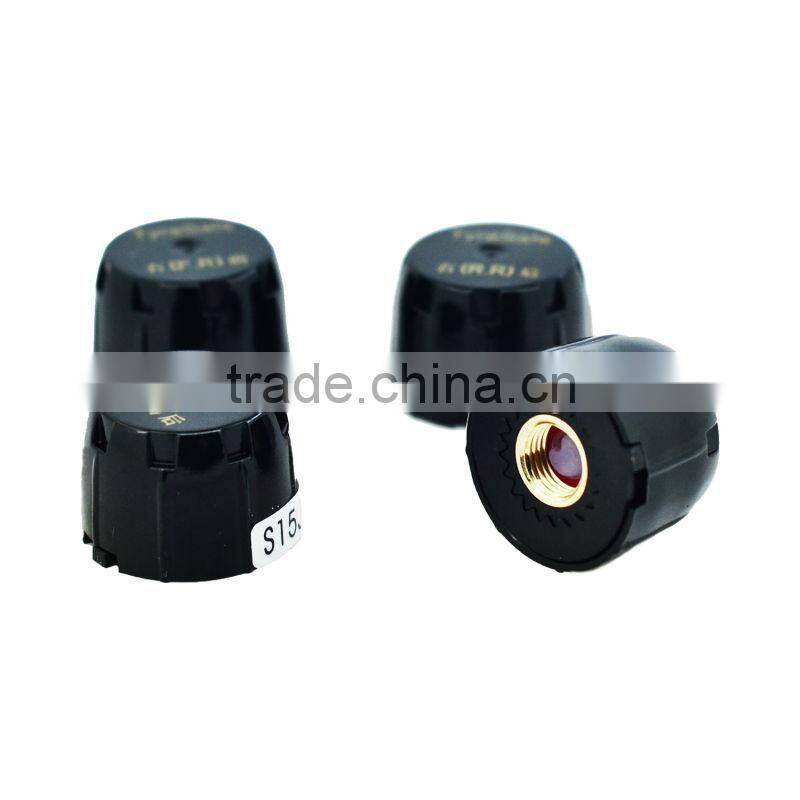

2. Sensor

Sensor Weight: <10g

Pressure Range: 0Psi-51Psi / 0Bar-3.5Bar

Battery Model: GR1632H

Battery Lifetime: >3 years

Static Current: < 0.7μA

Operating Current: < 12mA

Operating Temperature: -40 ~  +125 degrees Celcius

Pressure Error: ±1Psi / ±0.1Bar

Temperature Reading Accuracy: ±2 degrees Celcius

Operating Humidity: 5∼98%

High-precision Tire Pressure Monitoring System TPMS Wireless Tire Pressure Gauge
