Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > With Decoder Board High Speed Dome Metal Housing Low Price Ptz Camera

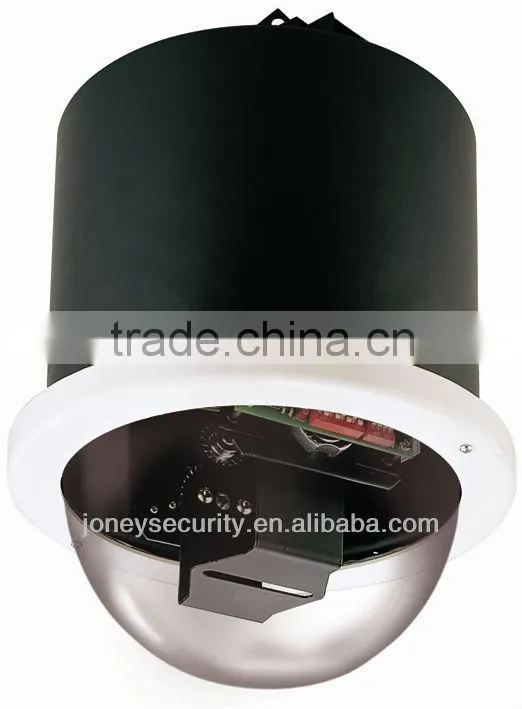

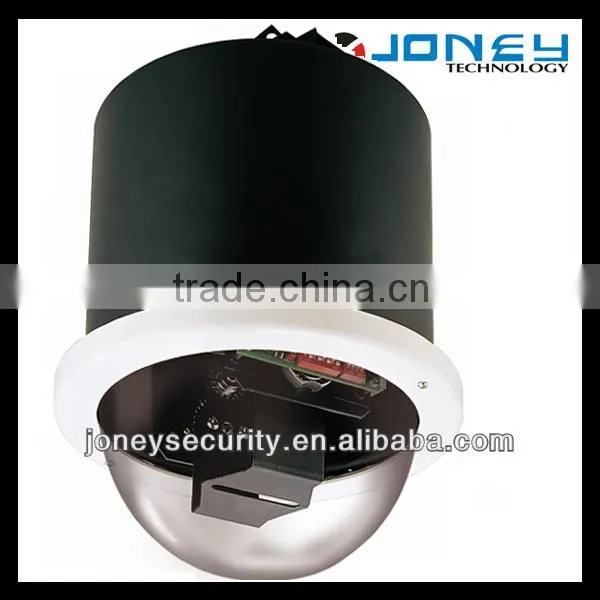

With Decoder Board High Speed Dome Metal Housing Low Price Ptz Camera

Name: With Decoder Board High Speed Dome Metal Housing Low Price Ptz Camera
Brand: Joney
SKU: 128348665
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney

Model Number:

PTZ-807H

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney

Model Number PTZ-807H

Type Analog Camera

Style Dome Camera

Sensor CMOS

Technology Pan / Tilt / Zoom

Special Features Vandal-proof

Specifications

Low Price PTZ Camera
--with decoder board
--metal housing and core
--light tea cver
--multi-protocal

With Decoder Board High Speed Dome Metal housing low price ptz camera

PTZ Dome Camera Specification
Model	PTZ-807H
Protection Grade	Weather Proof Metal Housing,
Pan Rotation Range	0° - 360° endless
Speed	Pan speed 15°/s
Speed	Tilt speed 15°/s
Tilt Range	90°
Communication	RS485
Baud Rate(RS485)	1200/2400/4800/9600bps
Protocol	Pelco-D, Pelco-P,
Scan between 2 points	Yes
Scan Precision	0.1° ± 0.03°
Power Supply	DC 15V, 2.4A
Power Consumption	24W
Temperature Operation	(-) 40 TO +60°
Environmental humidity	0~95%(No Condensation)
Camera Specification
Image Sensor	1/4" /1/3 "SONY Super Had CCD
Resolution	480TVL OR 700TVL
Lens	f=3.25-88mm High Durability 27X Zoom Lens
Angle of View	48 degrees (w) Horizontal 3 degrees (t)
Sync System	Internal/Line Lock NTSC 60 Hz , PAL 50HzC
Minimum illumination	0.5Lux/0.1Lux with B/W mode, 0 Lux IR On
IR Cut Filter	On/ Off
Video Focus	Auto/Manual (Near-Far)
White Balance	Auto/OFF
BLC	Auto/OFF
Electric shutter	1/50 -- 1/12000s
S/N Ratio	>50dB
Video Output	Composite 1.0+/-0.2Vp-p BNC
