Features:( plug and play power over ethernet ip security system )
Up to 8/16/32 channel with 1080p real time live view
H.264/MJPEG dual codec decoding

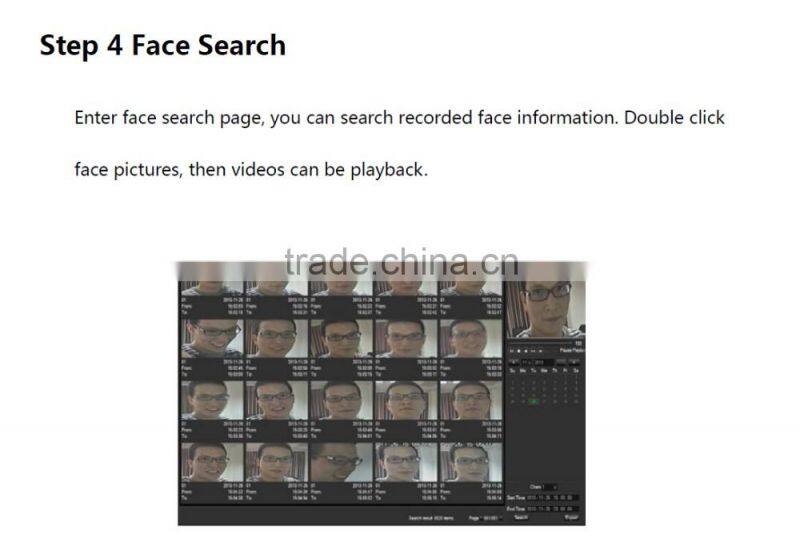

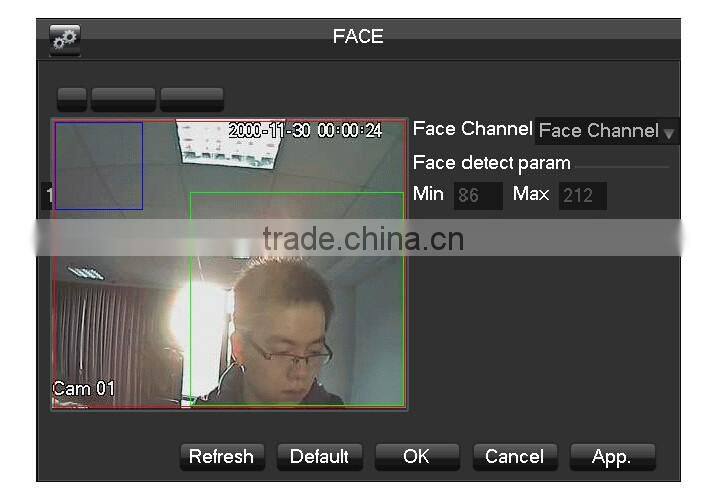

1CH Face detection function
Up to 5Mp resolution
Max 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
HDMI / VGA simultaneous video output
16 channel synchronous real time playback, GRID interface
Support Multi-brand network cameras: Dahua, Hikvision, Arecont Vision, , Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB2.0
Multiple network monitoring: Web viewer, IMS200 & VSSMobile & IMSeye
Support p2p and cloud backup
ONVIF Version 2.4 conformance

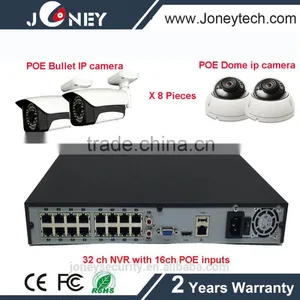

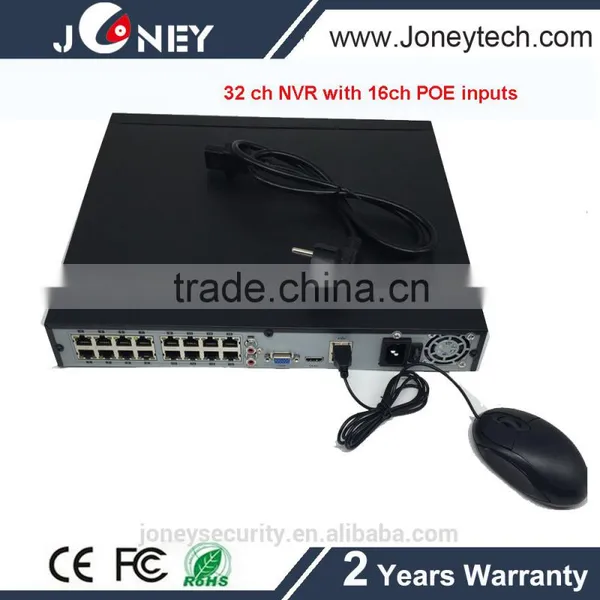

with 16ch POE inputs

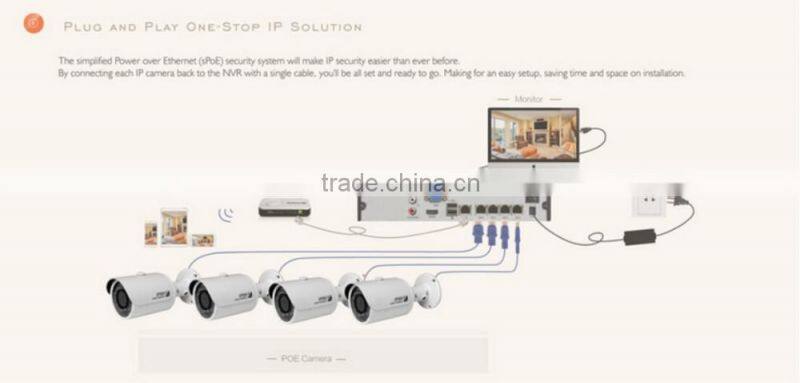

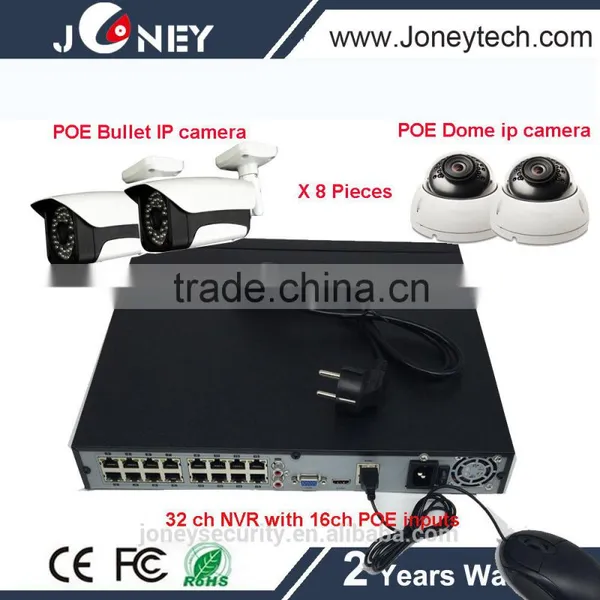

Plug and Play One Step IP security system

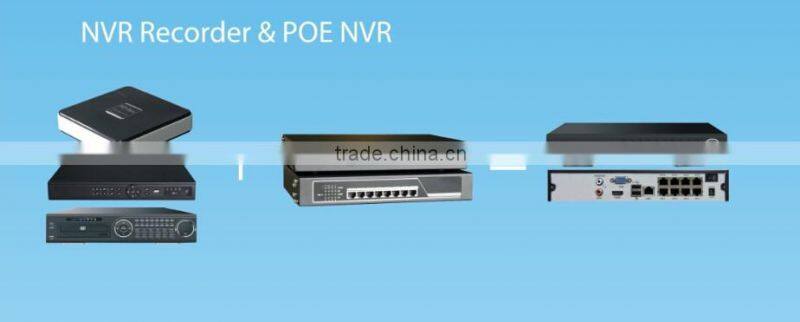

NVR + POE Switch = POE NVR
Model |
NVR-2008 |
NVR-2008-POE |
NVR-2016-POE |
NVR-2032-POE |
|||||
System | |||||||||
Chips |
Hi3520A |
Hi3520A |
Hi3521 |
Hi3531 |
|||||
Operation System |
Embedded LINUX |
||||||||
Pentaplex function |
Live monitoring, recording, playback, backup & remote access |
||||||||
Control Mode |
Front panel, USB mouse, IR remote control, Network |
||||||||
Video | |||||||||
IP Camera Input |
8ch.D1@30fps 8ch.720P@30fps 4ch.1080P@30fps |
8ch.D1@30fps 8ch.720P@30fps 4ch.1080P@30fps |
16ch.D1@30fps 16ch.720P@30fps 8ch.1080P@30fps |
32ch.D1@30fps 22ch.720P@30fps 16ch.1080P@30fp |
|||||
Support Protocol |
ONVIF Core Spec 2.4 |
||||||||
Standard |
PAL (625line, 50f/s) NTSC (525line, 60f/s) |
||||||||
Output |
1 CVBS, BNC (1.0Vp-p,75 ohms) 1 HDMI, 1.3a,support 1920×1080 Resolution 1 VGA, 1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution |
||||||||
Audio | |||||||||
Input |
1 ch. BNC |
||||||||
Output |
1 BNC (3.3Vp-p,4.7k ohms) |
||||||||
Bidirectional Talk |
1 ch. Standalone |
||||||||
Display | |||||||||
Resolution |
5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
||||||||
Frame |
1~30fps |
||||||||
Tour Display |
Support |
||||||||
Working status display |
LCD, blue backlight(working temperature, recording status, error code etc.) |
||||||||
Privacy Masking |
Four zones for privacy masking for each channel |
||||||||
Recording | |||||||||
Video Compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
||||||||
Audio Compression |
G.711A |
||||||||
Image Encoding |
Adjustable encoding quality, variable code stream/fixed code stream |
||||||||
Dual Stream |
Support |
||||||||
Recording Mode |
Manual, auto, motion detection, stop |
||||||||
Time bar |
Support |
||||||||
Video Detection & Alarm | |||||||||
Trigger Events |
Recording, PTZ, Tour, Email |
||||||||
Motion Detection |
396 (22×18) detection zone, variable sensitivity levels |
||||||||
Capture |
JPEG capture |
||||||||
Alarm Input |
4ch. |
4ch. |
8ch. |
16ch. |
|||||
Alarm Output |
1ch.NO,NC |
1ch.NO,NC |
3ch.NO,NC |
3ch.NO,NC |
|||||
Playback & Backup | |||||||||
Max Playback |
1/2/4 ch. |
1/2/4 ch. |
1/2/4/8 ch. |
1/2/4/9/16 ch. |
|||||
Backup Mode |
USB, HDD, Network Backup |
||||||||
Network | |||||||||
Ethernet |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100/1000M) |
|||||
Network protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP,FTP, UPnP |
||||||||
Remote Operation |
Monitoring, PTZ control, playback, system setting, file download, log information |
||||||||
Smart Phone |
iPhone, iPad, Android, Blackberry, Windows Mobile |
||||||||
General Parameters | |||||||||
Hard Disk |
2 SATA ports |
||||||||
HDD Management |
Hard disk hibernation technology, HDD faulty alarm & raid |
||||||||
USB Interface |
2 USB 2.0 ports |
||||||||
RS485 |
Standard 485, half duplex, PTZ control |
||||||||
POE function |
4CH POE |
8CH POE |
8CH POE |
16CH POE |
|||||
Environment | |||||||||
Power Supply |
DC12V/4A |
DC12V/4A DC48V/1A(POE) |
DC12V/4A |
DC12V/4A |
|||||
Power Consumption |
10W (without HDD) |
20W (without HDD) |
|||||||
Working Environment |
'-10℃~+60℃ / 10%-90%RH |
||||||||
Dimension(W*D*H) |
1U, 360x250x48 (mm) |
||||||||
Weight |
2Kg (without HDD) |
||||||||
