H.264 HD 720P AHD Mobile dvr 3g mobile dvr gps mobile dvr
Parameter Sheet
Item |
Parameter |
|
OS |
Linux |
|
Language |
Chinese/English/Customized |
|
Video Compression |
H.264 |
|
OSD |
Overlays information such as date time and vehicle ID |
|
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
Video Record System |
Video Input |
4CH 720P AHD input/SD input/mixed video input,aviation connector, 1.0Vp-p, 75Ω |
Video Output |
1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen |
|
Preview |
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels 720P |
|
Video Quality |
0-7 levels, 0 is the highest level. |
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
Audio |
Audio Input |
4CH ,Aviation Plug |
Audio Output |
1CH,Aviation Plug |
|
Compression |
G.726 compression, 8KB/s speed |
|
Alarm Input |
4Ch Alarm Input, kinds of alarm linkage support |
|
Alarm Output |
1CH Alarm Output |
|
Communication interface |
1CH RS232 or 1CH RS485 for optional |
|
Position |
Support Built GPS/BD Module, built in G-sensor, can repaly and analyse vehicle driven route. |
|
wireless transmission |
Suppport Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE....
|
|
Motion Detection |
Support motion detection alarm. (Can set the video recording duration time after alarm on platform.) |
|
G-Sensor |
Support G-sensor |
|
Storage |
SD |
Dual SD Card,each max 128GB SD Card loop recording |
Upgrade |
Support SD Card remote updating |
|
File Format |
.264 |
|
File System |
Special FAT32 File System |
|
Video Playback |
Video Search |
Search By Record Time/Record Type etc |
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. | ||
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
Voltage Input |
DC:+8V ~ +36V |
|
Voltage Output |
+12V 2.5A,+5V 2.5A |
|
Power Consumption |
Normal Working <14W , Stand-by status < 0.5W |
|
Working Environment |
Temperature |
-20℃ to +70℃ |
Humidity |
20% to 80% |
|
Security |
Password |
User/Admin 2 Level Different Password |
others |
Size |
112(W) x36(H) x138(D) mm |
Net Weight |
360g |
|
mobile dvr

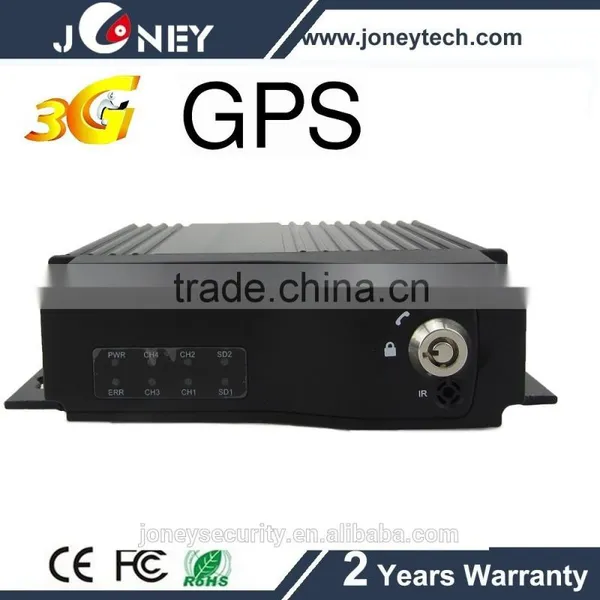

[PWR] Power LED:
LED light means system has powered on. [VLOS] Video Indicator:
LED On - Video Loss;LED Off - Video Normal
[SD1] SD Indicator:
LED Off- Card is not exit; LED On-Card recording; LED Flash slow-Card exist but not recording;
[SD2] SD Indicator: The same with SD1 Indicator
[IR] Infrared remote control receiving interface

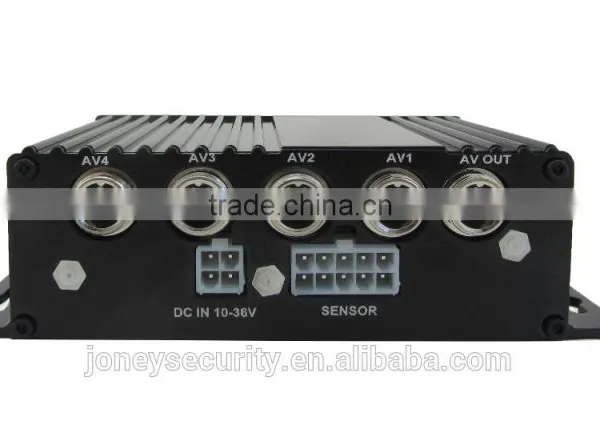

[DC-IN] Power port:
red cable connect power positive,
black cable connect power negative;
yellow line ACC signal cable.
[AV1-AV4] 1-4CH Vedio and Audio input interface,include DC 12V output;
[AVOUT] Vedio and Audio output interface,Include DC 12V output;
[GPS] Built-in GPS module antenna interface;
[3G] Built-in wireless communication module antenna interface;
[SENSOR] Extension Function interface;
Application
- inside car camera or outside car camera
(inside vehicle installation or outside vehicle installation)
- used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
