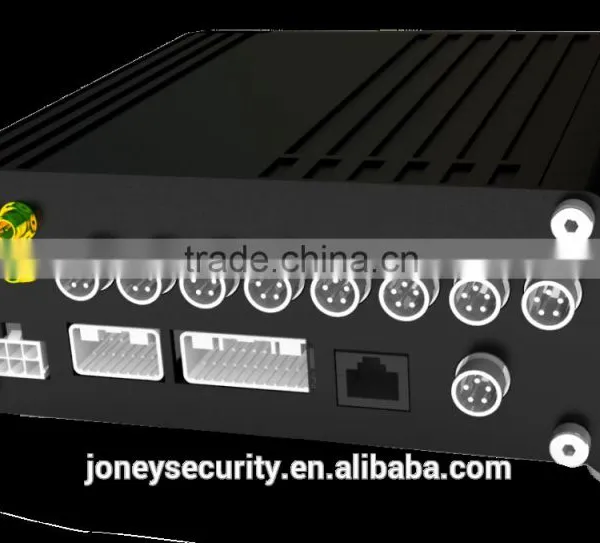

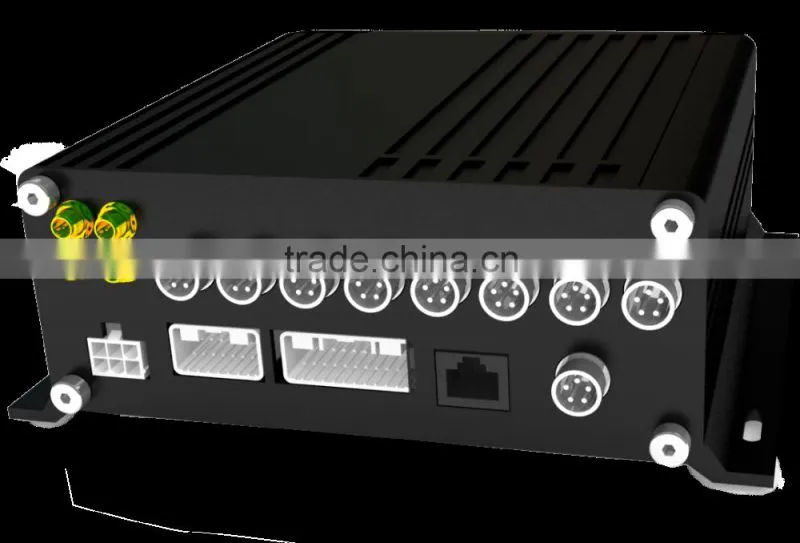

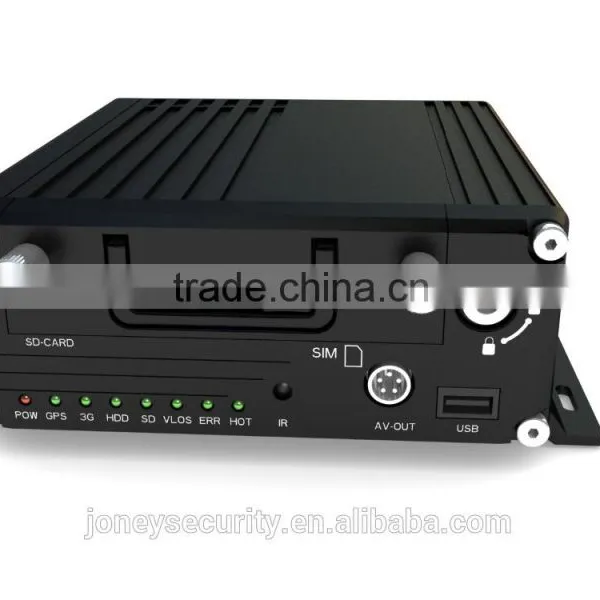

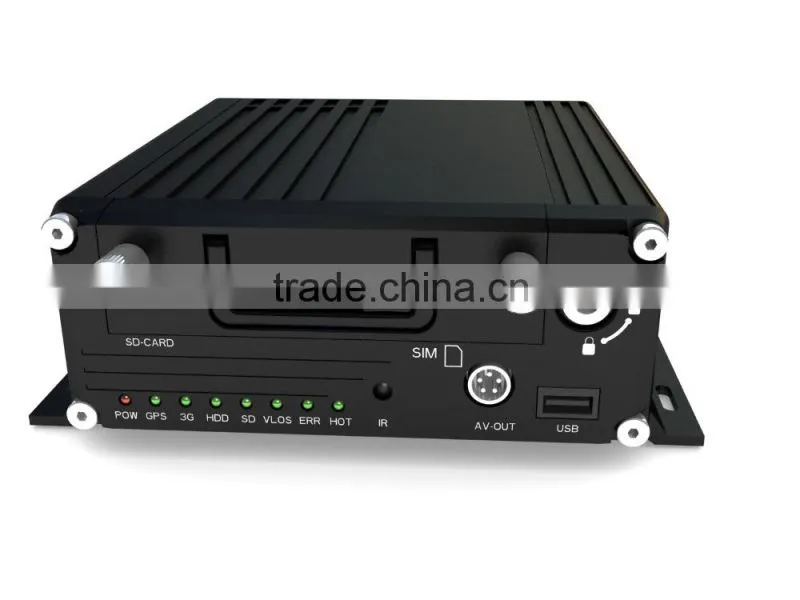

HD Megapxiel 720P HDD 4ch Mobile dvr AHD mobile dvr
H.264 Compression,support 4CH 720P AHD input/ 4CH analog
standard difinition Camera input/2CH HD + 2CH SD mixed input;
VGA output for optional ;
8-36V Adaptive Wide Voltage input, Super Low Power Consumption Design;
HDD + SD card storage (2TB HDD +128GB SD )
It can be completely resist car Vibration,Dust and others cause data corruption;
Support 4CH alarm input, 1CH independent alarm output;
Optional single RS232 serial port or single RS485 extension
Size:112(W) x36(H) x138(D) mm
Item |
Parameter |
||
OS |
Linux |
||
Language |
English/Chinese/Customized |
||
Video Compression |
H.264 Compression |
||
OSD |
Overlays information such as date time and vehicle ID |
||
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
|
Video Record System |
Video Input |
4CH 720P AHD input/SD input/mixed input,aviation connector, 1.0Vp-p, 75Ω |
|
|
Video Onput |
2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view |
|
|
Preview |
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels 720P and 4 channels D1 |
|
|
Image Quality |
0-7 levels, 0 is the highest level. |
|
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
Audio |
Audio Input |
4CH Aviation Plug Input |
|
|
Audio Output |
2CH,headphone connect at front panel, BNC Connect on Back panel |
|
|
Compression |
G.726 compression, 8KB/s speed |
|
Alarm Input |
7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
||
Alarm Output |
2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
||
Interface |
3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
|
||
|
2CH 485 Interface,Connect PTZ Camera |
||
|
2CH CAN interface |
||
Wireless Transmission |
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
||
GPS Position |
Support Built GPS/BD Module |
||
|
HDD |
Max 2.5” 2TB HDD |
|
Storage |
SD Card |
Max 128GB SD Card Mirror Recording Keep Data Safety |
|
|
Update |
Support USB Updating, SD Card Updating,OTA Remote Updating |
|
|
File Format |
H.264 |
|
|
File System |
Special FAT32 File System |
|
|
USB |
USB Interface on Front Panel for data back up by U Disk,Hard Disk |
|
Record Replay |
Video Search |
Search By Record Time/Record Type etc |
|
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
|
Security |
User/Admin 2 Level Different Password |
||
Optional Functions |
Voice Call |
Support voice call each other |
|
|
Serial Expand |
Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster, Car OBD,ect.external device |
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
|
|
Input Voltage |
DC:+6V - +36V |
|
|
Output Voltage |
+12V 1.5A,+5V 1.5A |
|
|
Power |
Working <5W |
|
|
Temperature |
-20℃ - +70℃ |
|
Working Environment |
Humidity |
20% - 80% |
|
|
Size
|
200 (D)* 187(W)* 62(H) mm |
|
Ohters |
Weight |
1.90 Kg |
|
|
|
||
mobile dvr

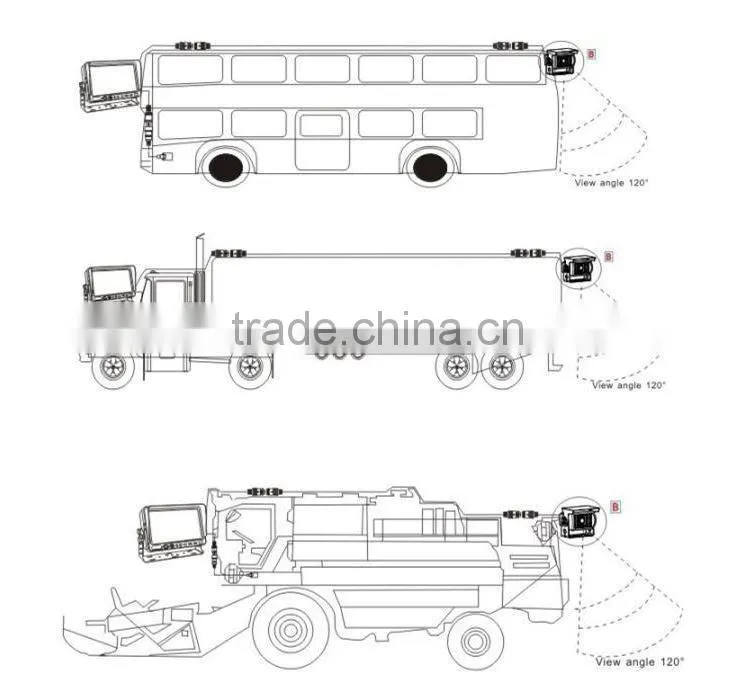

Application
- inside car camera or outside car camera
(inside vehicle installation or outside vehicle installation)
- used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
