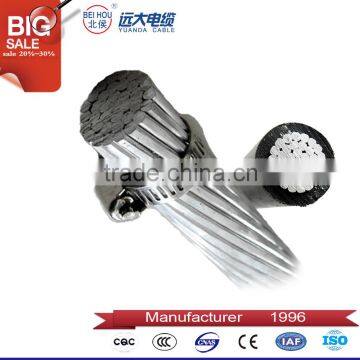

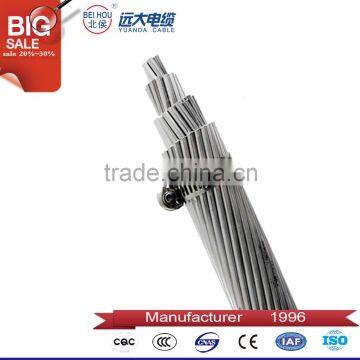

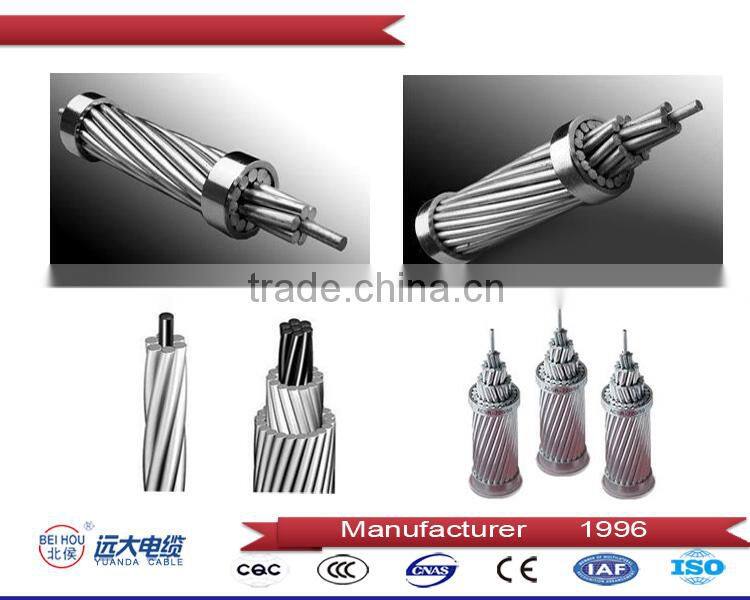

Help Center50MM2 ALUMINIUM ALLOY Conductor Material and Overhead Application AAAC Conductor
Related Products
-
All Aluminium Alloy Conductor AAACUS$ 1 - 99MOQ: 500 Meters -
Wholesale Electric Cable AAAC Bare Stranded Aluminum ConductorsUS$ 1 - 99MOQ: 500 Meters
-
China Supplier Overhead Cables All Aluminium Aloy Conductor AAAC CableUS$ 1 - 99MOQ: 500 Meters
-
AAAC Overhead Cables 30% All Aluminium Aloy Conductor Sale IN AsiaUS$ 1 - 99MOQ: 500 Meters
-
Low Voltage Cable Bare Conductor All Aluminium Alloy ConductorUS$ 1 - 99MOQ: 500 Meters
1. Applications
Conductor(AAC ,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2.Technical Characters for AAAC
|
Nominal Area Aluminium Alloy |
Area(mm2) | No. of wires/Diameter (Nos/mm) |
Outer Diameter (mm) | Weight (kg/km) |
Rated Tensile Strength (KN) |
D.C Resistance at 20℃ (Ω/km) |
| 10 | 10.02 | 7/1.35 | 4.05 | 27.4 | 2.96 | 3.2891 |
| 16 | 16.08 | 7/1.71 | 5.13 | 44 | 4.74 | 2.05 |
| 25 | 24.94 | 7/2.13 | 6.39 | 68.2 | 7.36 | 1.3213 |
| 35 | 34.91 | 7/2.52 | 7.56 | 95.5 | 10.3 | 0.9439 |
| 50 | 50.14 | 7/3.02 | 9.06 | 137.2 | 14.79 | 0.6573 |
| 70 | 70.07 | 7/3.57 | 10.7 | 191.7 | 20.67 | 0.4703 |
| 95 | 95.14 | 7/4.16 | 12.5 | 261.5 | 28.07 | 0.3481 |
| 120 | 120.36 | 19/2.84 | 14.2 | 330.8 | 35.51 | 0.2751 |
| 150 | 149.96 | 19/3.17 | 15.9 | 412.2 | 44.24 | 0.2208 |
| 210 | 209.85 | 19/3.75 | 18.8 | 576.8 | 61.91 | 0.1578 |
| 240 | 239.96 | 19/4.01 | 20.1 | 661.1 | 70.79 | 0.1383 |
| 300 | 299.43 | 37/3.21 | 22.5 | 825 | 88.33 | 0.1109 |
| 400 | 399.98 | 37/3.71 | 26 | 1102.1 | 117.99 | 0.083 |
| 500 | 500.48 | 37/4.15 | 29.1 | 1380.9 | 147.64 | 0.0664 |
| 630 | 631.3 | 61/3.63 | 32.7 | 1741.8 | 186.23 | 0.0527 |
| 800 | 801.43 | 61/4.07 | 36.8 | 2211.3 | 236.42 | 0.0415 |
| 1000 | 1000.58 | 61/4.57 | 41.1 | 2760.7 | 295.17 | 0.0332 |
Packaging & Shipping
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Usually, within 7~10 days, the goods will be ready.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
