TCP/IP access control security system Four Doors access control panel, wiegand access control board
| Unit Size | 160mm *106mm wiegand Access Control board |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mm*228mm*65mm |
| Accessories | User Manual, warranty card |
| 4 Door Network TCP/IP Wiegand Access Control Board Function Introduction | |
| Conventional Function | offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map ,patrol, meeting,const meal etc. |
| Professional function | for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation. |
| all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| 4 Door Network TCP/IP Wiegand Access Control Board Parameter | |
| Communication | TCP/IP / RS485/232 |
| English Software supportable database: | SQL |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola, EM one etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | four doors Access Control board |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°C-70°C |
| Operation Humidity | 10-90 % RH , No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | |
| Depand on network range | |
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
| Complsive open and close door at long time | Yes |
| Open door in remote distance | Yes |
| Inter block | No |
| Anti pass back and tail | Yes |
| Multi-card open door | Yes |
| Open long time at specified time | Yes |
| Electronic map | Yes |
| Urgency locking | Yes |
| First card unlocking | Yes |
| Unlock based on internal and external validation | Yes |
| Keypad (card+passwor, supper password) | Yes |
4 Door Network TCP/IP Wiegand Access Control Board
OEM Service:
Your LOGO or company name can be acceptable for OEM orders! We don't charge any cost if your order quantity is 50pcs above each model.
Requested sticker and color box are without any charge!
OEM color box can be made if your order quantity reached 500pcs above!
Many colors optional and your requested color can be made for OEM order!
Deliery Time:Within 7 days after payment is checked
Quality warranty :2 years for free maintain.Whole life service for continue cooperating customers!
Payment term:by L/C,T/T,Western Union,Paypal
Price term:FOB shenzhen
Delivery term:by air,By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST)By Sea.
Please contact our Client service! Welcome your inquiry on many more models!
Brief Introduction of JONEY TECHNOLOGY CO.,LTD click to know more detail.
An High-tech enterprise that specialize in R & D, Production and Distribution of CCTV security products,Video&Audio Intercom products,access control products,etc .Through 10 years' effort ,We have established good cooperationship with customers worldwide from 150 different countries.
Main Market:
Our products have been exported to more than 150 countries worldwide.Our main markets are USA,Australia,Easter/Western Europe,Malaysia,Indonesia.
QC/Technical Support

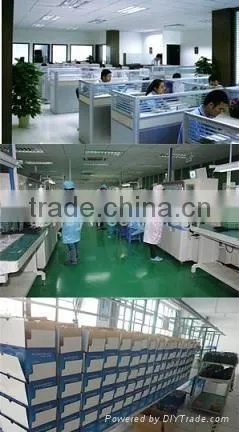

With 30 Quality controlling staff To check all materials and components at each stage of production. The testing devices will be turning on for over 48 hours before delivery.
To test the software, function and stability
To Check the Packing by Logo,Color/Brown Box,Carton.
We provide 18-month warranty for free maintenance and technical support forever at anytime,Please feel free to contact us if any dissatisfaction.
Research and Development ability
20 Engineers are constantly devoted to improve existing products and developing new products in order to provide our global customers with top-quality products
Two to three NEW products are released each month to meet the market demand and lead the trend for CCTV and access control field.
Welcome to visit our factory anytime , we sincerely hope to cooperate with you on the concept of with you on the concept of mutual profit and hearty service!
