TCP/IP 1/2/4 door Access Controller , 4 Doors Access Controller
- 100000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
TCP/IP RS232/RS485 wiegand access control board for two doors(JYC-T2002B)
-
TCP/IP RS232/RS485 Security alarm network door access control panel for two doors (JYC-T2002B)
-
TCP/IP Wiegand access control board for 4 doors(JYC-T2004B)
-
TCP/IP RS232/RS485 four doors access control panel for 4 readers(JYC-T2004B)
-
TCP/IP RS232/RS485 security access control board for single door (JYC-T2001B)
-
TCP/IP RS232/RS485 RFID access control system 2 door access panel
Product Details
| Place of Origin | Guangdong, China | Brand Name | JONEY | |
| Model Number | JYC-T2004B |
Product Description
TCP/IP 1/2/4 door Access Controller , 4 Doors Access Controller system
These Access Controller board provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mm*228mm*65mm |
| Accessories | User Manual, warranty card |
| 4 Door Network TCP/IP Wiegand Access Control Board Function Introduction | |
| Conventional Function | offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map ,patrol, meeting,const meal etc. |
| Professional function | for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation. |
| all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| 4 Door Network TCP/IP Wiegand Access Control Board Parameter | |
| Communication | TCP/IP |
| English Software supportable database: | SQL |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , H.ID, EM ,13.56mhz card etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | four |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°C-70°C |
| Operation Humidity | 10-90 % RH , No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | |
| Depand on network range | |
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
| Complsive open and close door at long time | Yes |
| Open door in remote distance | Yes |
| Inter block | No |
| Anti pass back and tail | Yes |
| Multi-card open door | Yes |
| Open long time at specified time | Yes |
| Electronic map | Yes |
| Urgency locking | Yes |
| First card unlocking | Yes |
| Unlock based on internal and external validation | Yes |
| Keypad (card+passwor, supper password) | Yes |

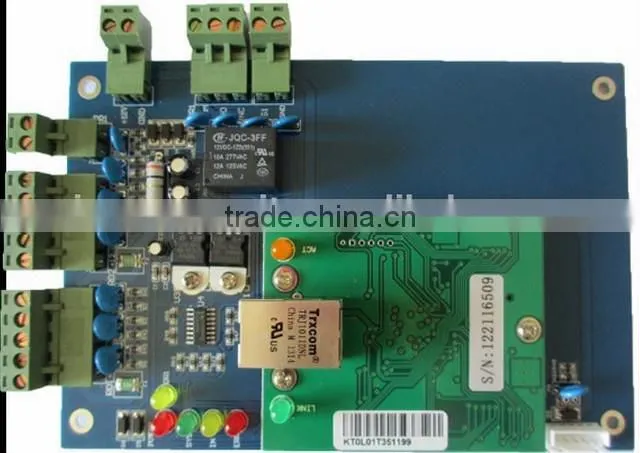

Access controller: JYC-T2001B is now capable to handle 1 door / 2 readers

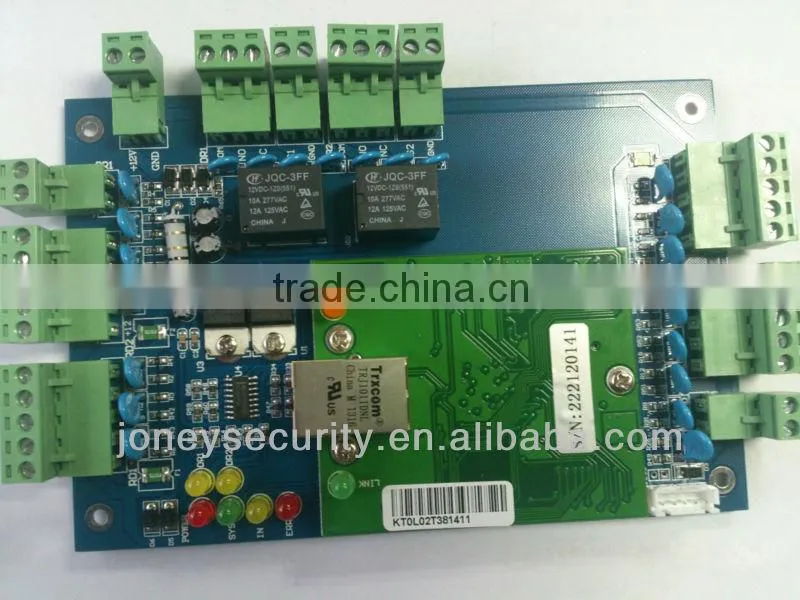

Access controller: JYC-T2002B is now capable to handle 2 doors / 4 readers.

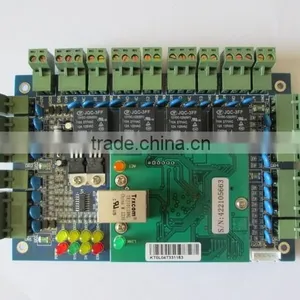

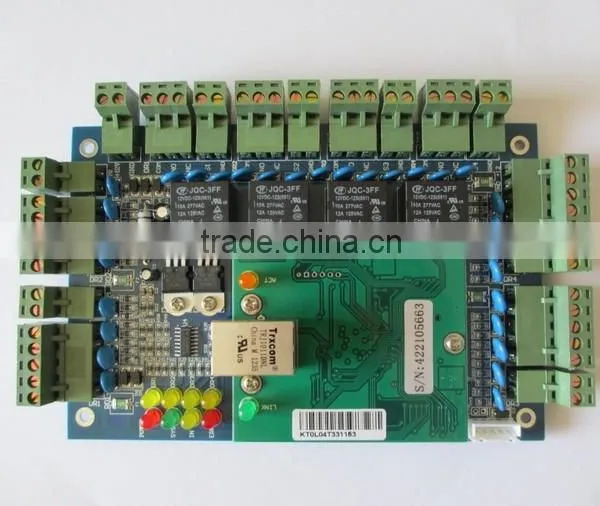

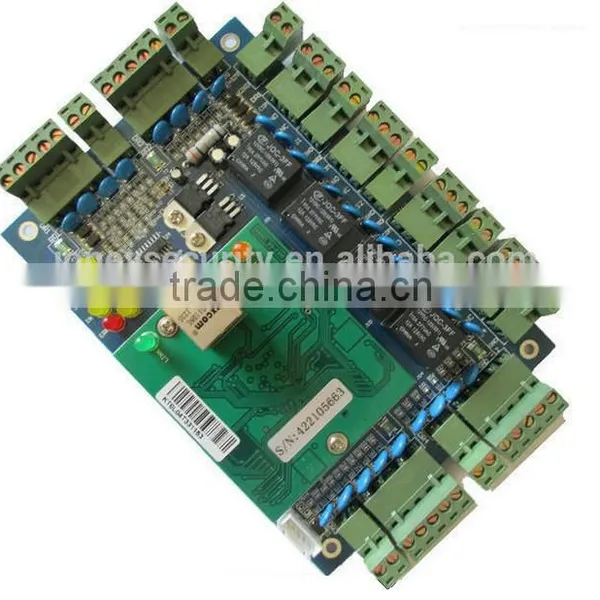

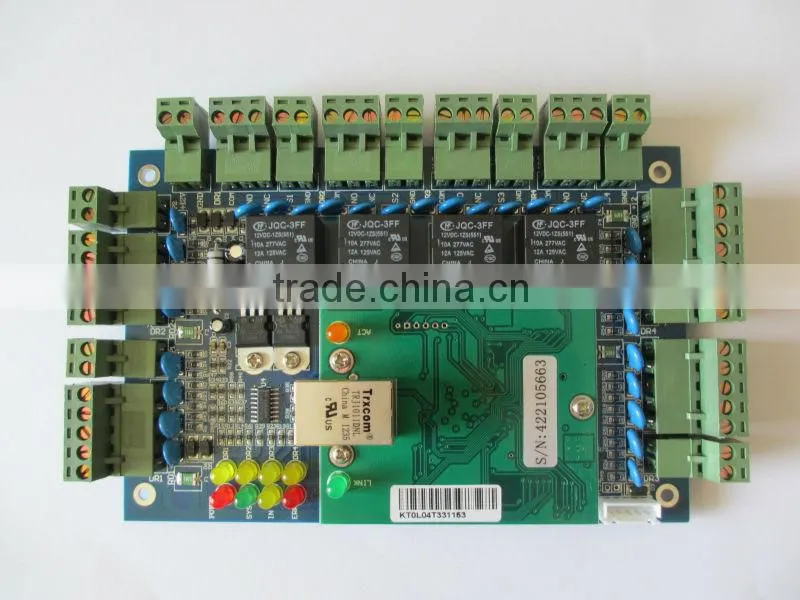

JYC-T2004B is now capable to handle 4 doors / 4 readers and 4 buttons

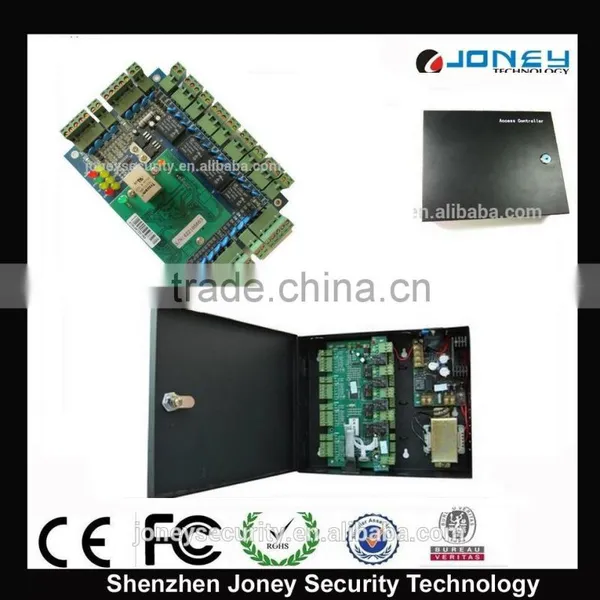

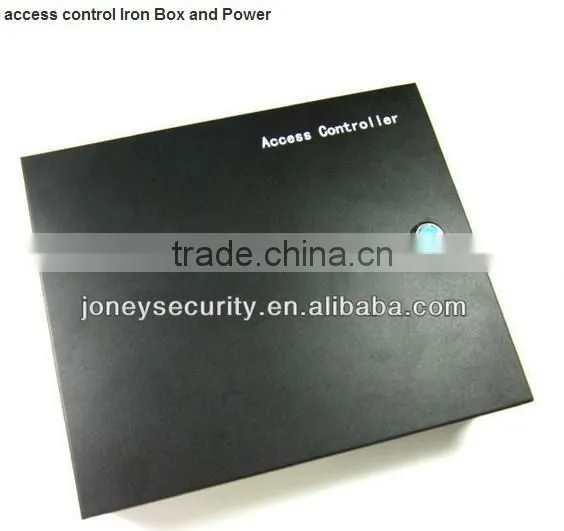

access control Iron board Box and Power
Wiring diagram:

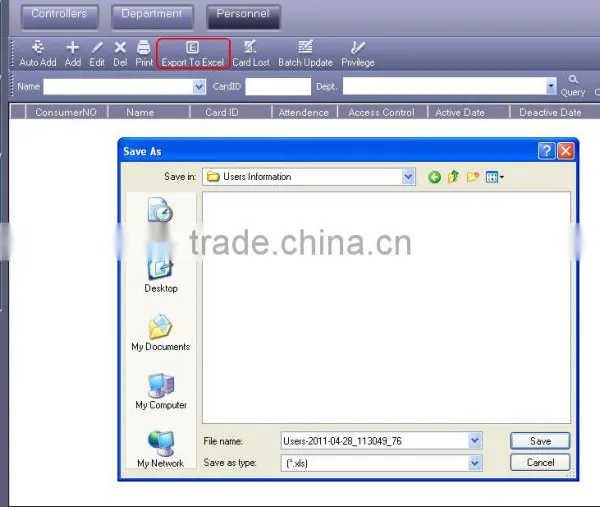

Access Control software:
After log in,showed windows:
Setting doors:

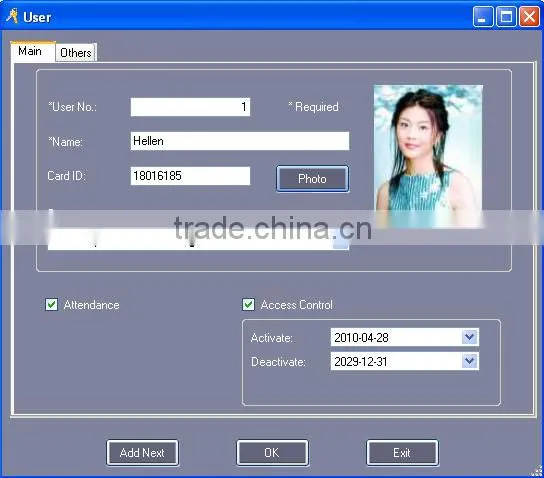

Add User
