1.prestressed steel cable anchor made in Chinese prestress factory

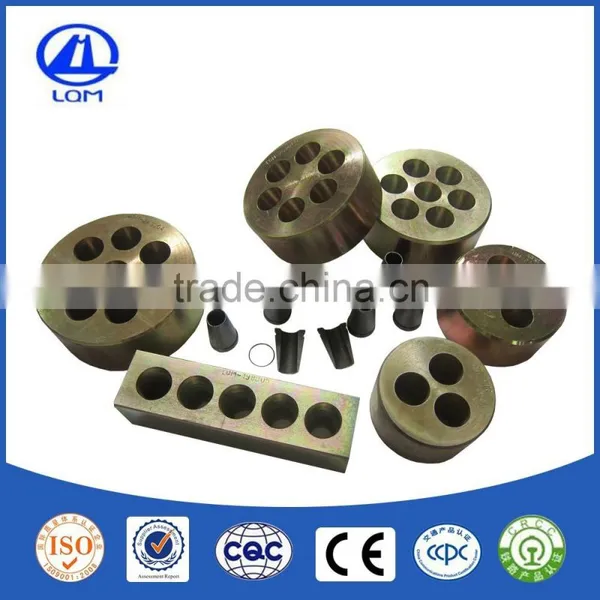

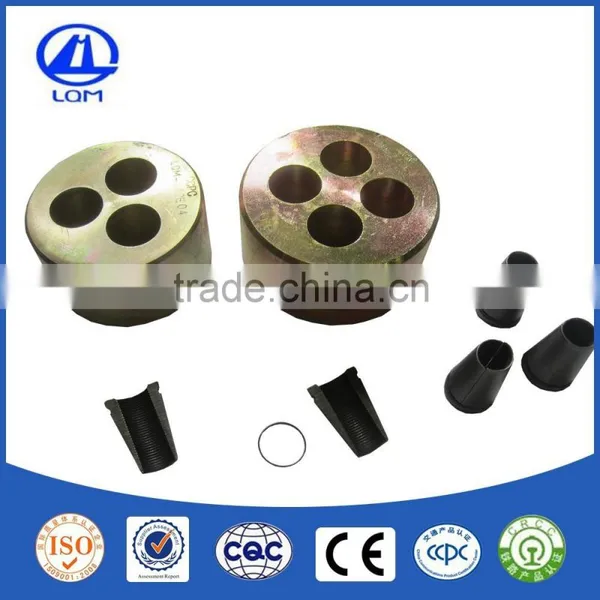

LQM prestressed steel cable anchor consists of anchor head(wedge plate), wedges, plastic or metal corrugates, spiral reinforcements and PC strands(PC wire bundle).
1.Wedges
2.steel cable anchor
3.Anchor plate casting type
4.Corrugated metal round duct
5.Anchorage spiral reinforcement
2.LQM prestressed steel cable anchor has the following features:
1) LQM prestressed steel cable anchor used to lock the steel strand wires on/under clases of 2000MPa standard strenght, which is usually in diameters of 12.7mm12.9mm15.2mm15.7mm.
2) LQM prestressed steel cable anchor is complete in varieties and specifications,and we also can design according to the specific demand of the construction.
3. Main technical parameter of LQM prestressed steel cable anchor
Number of strands dia. 0.5”(12.7mm) |
4 |
7 |
12 |
19 |
22 |
Ultimate tensile force per tendon, kN |
736 |
1288 |
2208 |
3496 |
4048 |
Stressing force at 0.8 u.t.s., kN |
589 |
1030 |
1766 |
2797 |
3238 |
Duct ID, mm |
50 |
55 |
80 |
90 |
90 |
Jack Type |
YCW100C |
YCW150C |
YCW150C |
YCW250C |
YCW400C |
Number of strands dia. 0.6”(15.2mm) |
4 |
7 |
12 |
19 |
22 |
Ultimate tensile force per tendon, kN |
1040 |
1820 |
3120 |
4940 |
5720 |
Stressing force at 0.8 u.t.s., kN |
832 |
1456 |
2496 |
3952 |
4576 |
Duct ID, mm |
55 |
70 |
90 |
100 |
120 |
Jack Type |
YCW100C |
YCW150C |
YCW250C |
YCW400C |
YCW500C |
4. Production process of LQM prestressed steel cable anchor
5. Application of LQM prestressed steel cable anchor
LQM prestressed steel cable anchor can be used efficiently in all applications of Building and Civil Engineering works including :
- Building floor slabs
- Bridge girders
- Tanks and Silos
- many other applications
