Home > Products > Dahua IPC/NVR/DVR/HD-CVI > Original Dahua Micro SD Memory 1.3Mp IP PTZ Dome Camera DH-SD59120T-HN
Original Dahua Micro SD Memory 1.3Mp IP PTZ Dome Camera DH-SD59120T-HN
Negotiable
/ Piece
5 Pieces(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
Dahua 1080P Triple-streams Encoding 2Mp Full HD 20x/30x Network IR PTZ Dome Camera Dahua SD59220T/230T-HN
-
Hot Sales Dahua 2Mp Outdoor Waterproof HD CCTV Network IR PTZ Camera DH-SD59230T-HN
-
2Mp Full HD 20x/30x Network IR PTZ Dome Camera Dahua SD6C220T/230T-HN
-
DH-SD6C230T-HN 30x Optical Zoom Face Detection,Tripwire Dahua PTZ Camera
-
Auto Tracking and IVS Triple-stream Encoding Intelligent 3D Positioning System 2Mp 30x Zoom IP PTZ Dahua PTZ12230-IRB-N
-
Dahua 2Mp Full HD 30x WDR Network PTZ Dome Camera SD6AE230F-HNI With Auto-tracking and IVS
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua SD59120T-HN | |
| Model Number | Dahua SD59120T-HN | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description
Original Dahua Micro SD memory 1.3Mp IP PTZ Dome Camera DH-SD59120T-HN
Dahua PTZ Image
Daua PTZ Details
1.3Mp HD Network IR PTZ Dome Camera
SD59120T-HN
Features :
>20x optical zoom
>Support Triple-streams encoding
>Max. 25/30fps @1.3M(1280x9600) & 720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 400°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m(AC24V)/ 80m(DC12V)
1.3Mp HD Network IR PTZ Dome Camera
SD59120T-HN
Technical Specifications:
| Model | DH-SD59120T-HN | |
| Camera | ||
| Image Sensor | 1/3” CMOS | |
| Effective Pixels | 1280(H) x 960(V), 1.3Megapixels | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux F1.4; B/W: 0.005Lux F1.4, 0Lux (IR on) | |
| S/N Ratio | More than 55dB | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm~94mm(20x Optical zoom) | |
| Max Aperture | F1.4~ F2.6 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 54.1° ~ 3.2° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s | |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| IR Distance | 80m (DC12V) 100m (AC24V) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1.3M(1280×960)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/ D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps | |
| Audio | ||
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/ DC12V, POE Plus(802.3at) | |
| Power Consumption | DC12V: 13W, 20W (IR on) AC24V: 13W, 23W (IR on) | |
| Working Environment | DC12V: -30ºC ~ 60ºC / Less than 90% RH AC24V: -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Dimensions | Φ186.0(mm) x 309(mm) | |
| Weight | 3.5kg | |
1.3Mp HD Network IR PTZ Dome Camera
SD59120T-HN

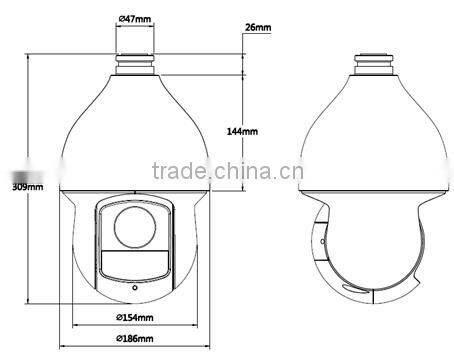

Dimensions (mm)

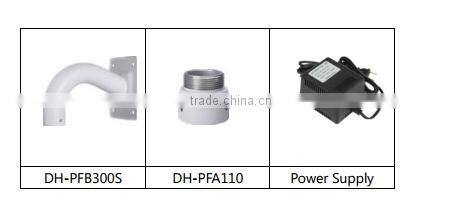

Accessories
Accessories (Optional)
Dahua PTZ Software
iDMSS(IPad/IPhone) Mobile Client Software
IPhone
IPad
gDMSS(Android) Mobile Client Software
