Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua SD6AL230F-HNI | |
| Model Number | Dahua | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

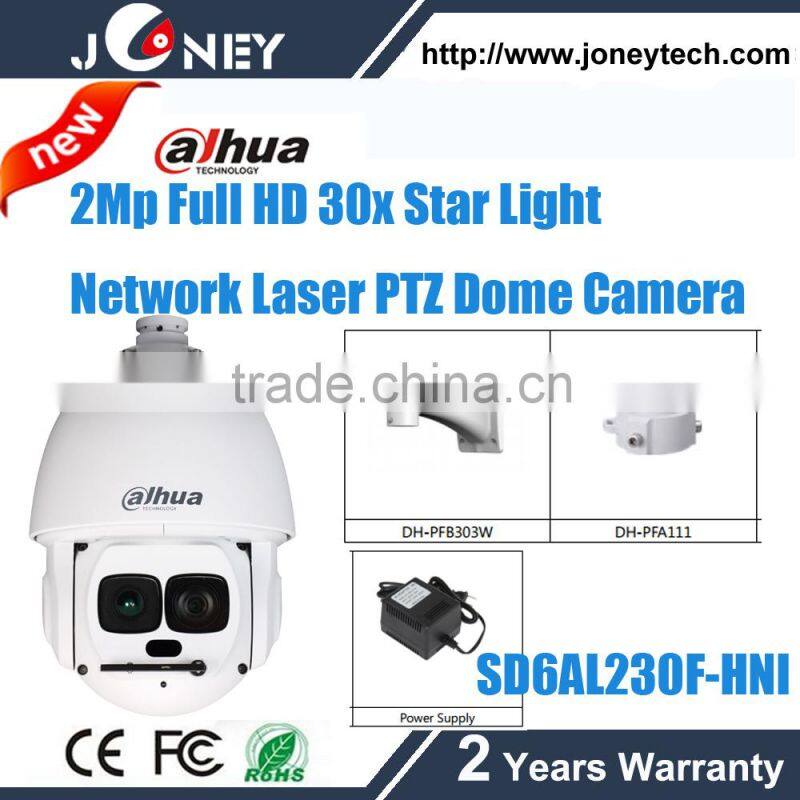

Dahua 2Mp 30x IR500M IP67 Hi-POE IP PTZ Dome Camera SD6AL230F-HNI

2 Mp Full HD 30x Star Light Network Laser PTZ Dome Camera
SD6AL230F-HNI
Features :
>Powerful 30x optical zoom
>Ultra-low light star light camera
>H.264 & MJPEG Three-stream encoding
>Max 60fps 720P and 30fps 1080P resolution
>Defog, 120dB WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
>Auto-tracking and IVS
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 7/2 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP67, Hi-POE
>IR Distance up to 500m
2Mp Full HD 30x Star Light Network Laser PTZ Dome Camera
SD6AL230F-HNI
Technical Specifications:
| Model | DH-SD6AL230F-HNI | |
| Camera | ||
| Image Sensor | 1/1.9" CMOS | |
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.005Lux F1.6; B/W: 0.0005Lux F1.6; 0Lux (IR on) | |
| S/N Ratio | More than 56dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR(120dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| EIS | Support | |
| Defog | Support | |
| Lens | ||
| Focal Length | 6mm~180mm(30x Optical zoom) | |
| Max Aperture | F1.6 ~ F4.8 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 51.2° ~ 1.8° | |
| Close Focus Distance | 100mm~ 1000mm | |
| IR Light | ||
| Laser Light Control | Auto / Manual | |
| Laser Distance | Up to 500m | |
| Angle of Laser Light | 2° ~ 60° | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Time Task | Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| Auto Tracking | Single-scene, multiple-scene, panorama-scene | |
| IVS (optional) | Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc. | |
| Tracking Trigger Mode | Manual / Auto (alarm triggered) | |
| Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| Alarm | 7/2 channel In/Out | |
| General | ||
| Power Supply | AC24V/3A(±25%), Hi-POE | |
| Power Consumption | 20W, 43W (IR on, Heater on) | |
| Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP67 | |
| Wiper | Yes | |
| Dimensions | Φ240(mm) x 357(mm) | |
| Weight | 6.75kg | |
2 Mp Full HD 30x Star Light Network Laser PTZ Dome Camera
SD6AL230F-HNI

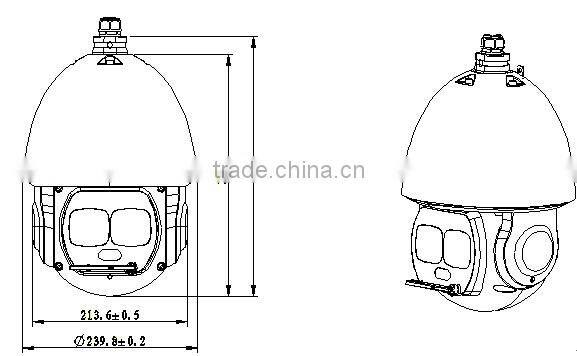

Dimensions (mm)

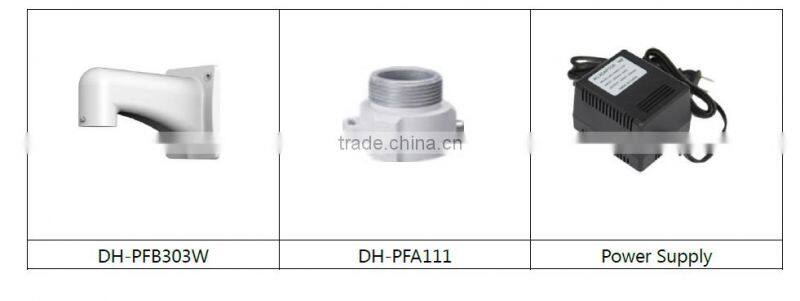

Accessories
Accessories (Optional)
iDMSS(IPad/IPhone) Mobile Client Software
IPhone
IPad
gDMSS(Android) Mobile Client Software
