4 channel ahd dvr kits 4ch Support 3G,Wifi,Cloud 1 SATA HDD
Features: ahd dvr 8ch ahd dvr dvr ahd hd ahd hd ahd dvr 8ch dvr hd

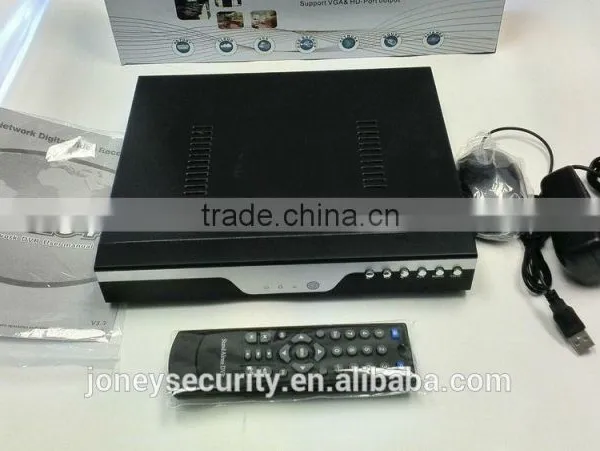

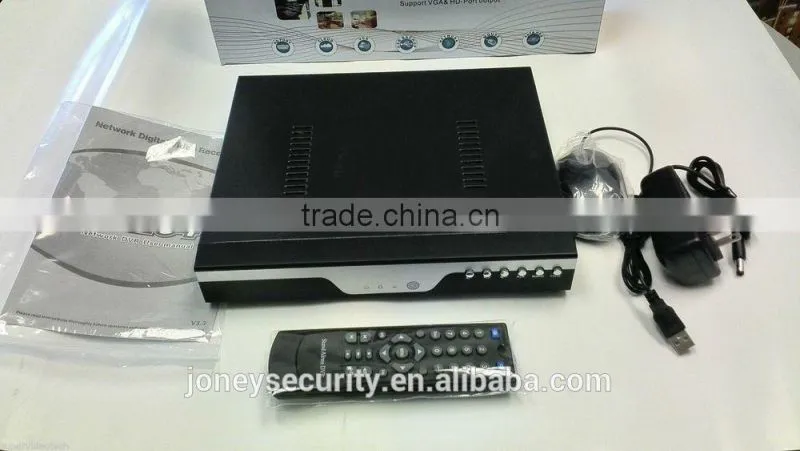

AHD DVR:
1U 4ch AHD dvr
Video recording channels & Resolution:4CH 720P Realtime or 4CH 1080P@15fps
Hybrid mode: 4x 720P/960P AHD + 4 x 720P/960P ip camera.
Audio Input/Output:4/1
Alarm Input/Output:2/1
Support HDD:1pcs
Video split:1/4
Playback channel & Resolution:4CH 720P@30fps ,1080P@15fps
Support 3G,Wifi,Cloud.
With HDMI,VGA,Support 1pcs HDD(each max 4TB)
AHD Camera: x 4pcs
1.3 Megapixel 960P Waterproof IR HD-AHD Camera
Color 1/2.8" CMOS,1.3 Megapixels,IR-CUT
25fps@1280H(1280*960)
long distance real-time transmission
IP66 Waterproof Bullet Camera
Lens: Board Lens 3.6mm/F2.0
IR LED: 24 x F5 IR LED
IR Range: >20m

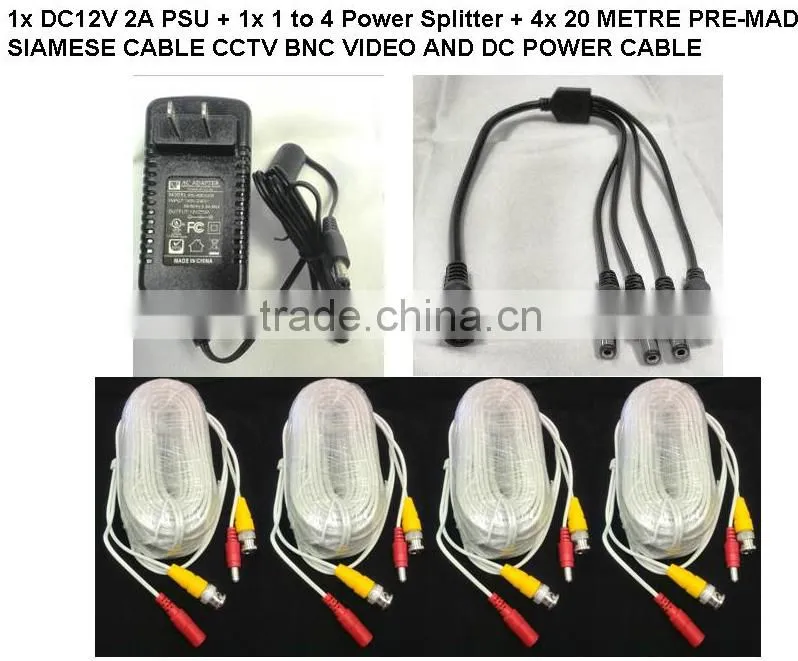

Accessory:
4 channel kit (color box kit include 4pcs * 20 meter cable ,1pcs 12V 5A power adapter ,1pcs 1/4 power splitter cable )
DVR Specifications: ahd dvr 8ch ahd dvr dvr ahd hd ahd hd ahd dvr

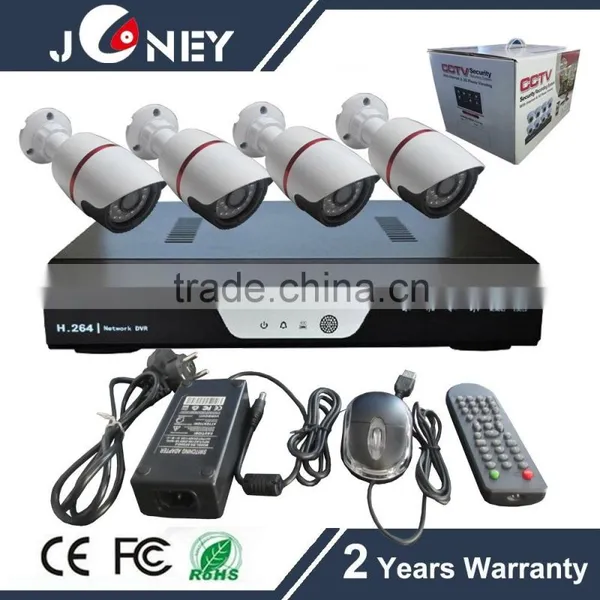

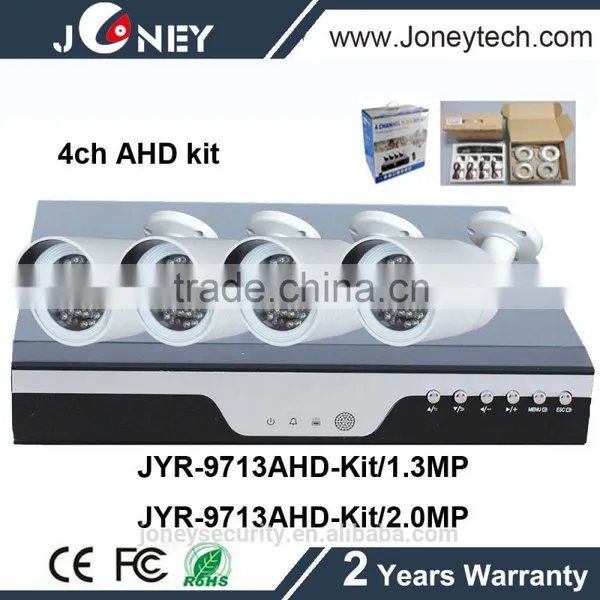

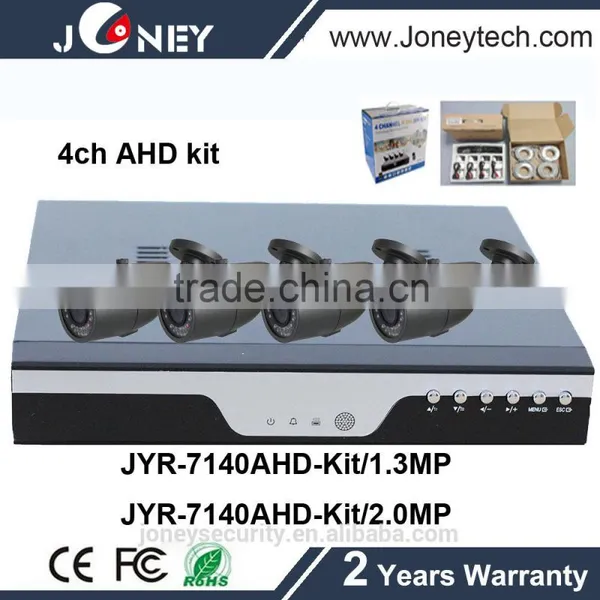

4 channel cctv camera system ( HD-AHD System)
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input |
4CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output |
1CH VGA/1CH HDMI/1CH BNC |
Audio Input/Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate |
720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL> |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard DisHard Disk Storagek Storage |
Support 1 SATA HDD |
Alarm Input/Output |
optional |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion/Alarm |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set |
Backup Device |
USB flash drive,USB hard disk and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES |
USB Mouse |
YES |
Power Source |
12V/2A |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
260(L) x 44(H) x 221(W) |
