8 Channel Ahd DVR 8CH Ahd CCTV DVR 1080P
Main Features :
1.25U 8ch 1080P AHD dvr
Video recording channels & Resolution:8CH 1080P @15fps,8CH 720P @30fps
Hybrid mode: 8x AHD camera + 8 x ip camera.
Audio Input/Output:8/1
Alarm Input/Output:4/1
Support HDD:2pcs
Video split:1/8
Playback channel & Resolution:Realtime 4CH 1080P@15fps, 720P@30fps;
Support 3G,Wifi,Cloud.
With HDMI,VGA,Support 2pcs HDD(each max 4TB)
Main specification :
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input |
8CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output |
1CH VGA/1CH HDMI/1CH BNC |
Audio Input/Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate |
1080P:1920x 1080P 720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL> |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard DisHard Disk Storagek Storage |
Support 1 SATA HDD |
Alarm Input/Output |
optional |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion/Alarm |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set |
Backup Device |
USB flash drive,USB hard disk and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES |
USB Mouse |
YES |
Power Source |
12V/2A |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
260(L) x 44(H) x 221(W) |

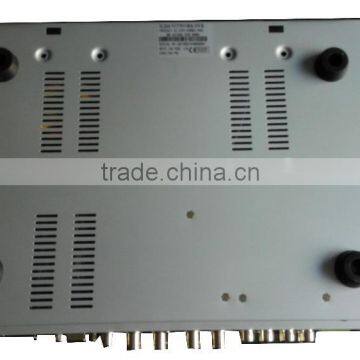

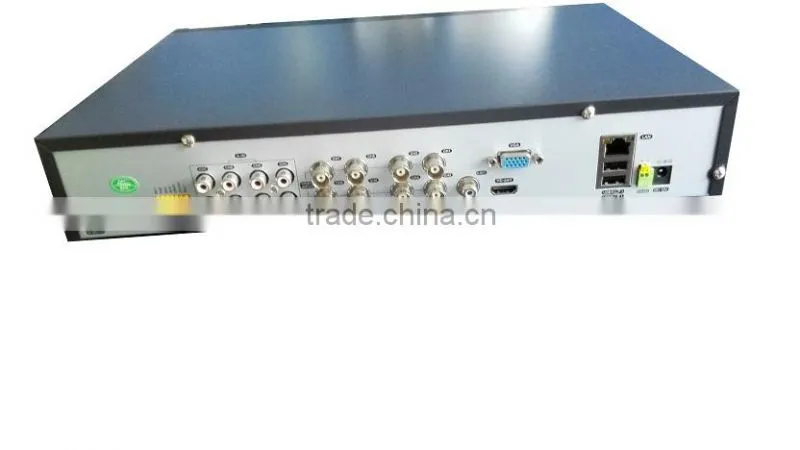

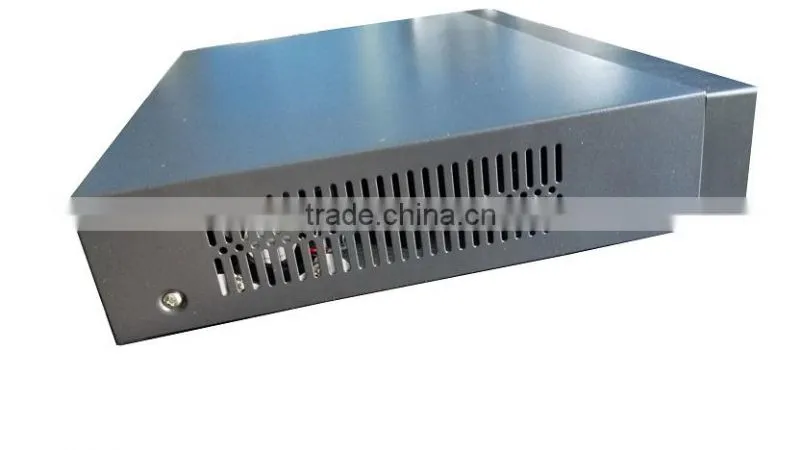

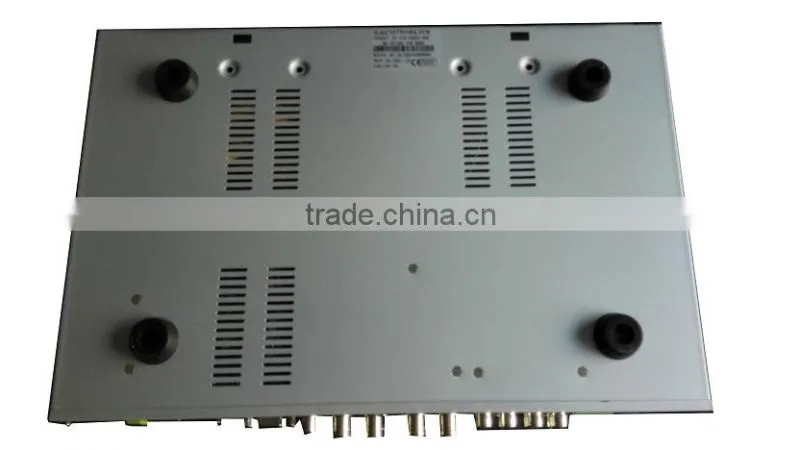

Images:
