Home > Products > Magnet Pump > Magnet Pump MD-100R
Magnet Pump MD-100R
USD $10 - $90
/ Piece
50 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Zhejiang, China | Model Number: | MD-100R | Theory: | Electromagnetic Pump |
| Structure: | Single-stage Pump | Usage: | Other, chemical | Power: | Electric |
| Standard or Nonstandard: | Standard | Fuel: | Other | Pressure: | High Pressure |
| Application: | Other, chemical |
Product Description

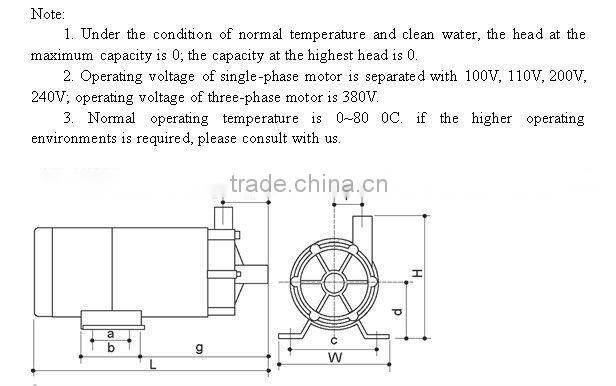

Magnet Pump
MODEL NO |
|
Whorl tube | max(L/min | (m |
Standard flow rate |
motor | ||||
(mm | (mm) | (inch) | (mm) | 50Hz/60Hz | 50Hz/60Hz | (L/min50Hz/60Hz | (m) | (w) |
phase | |
MD-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | 10 | 1 |
MD-15RM | - | - | 3/4 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | 10 | 1 |
MD-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | 20 | 1 |
MD-20RM | - | - | 3/4 | 16 | 27/32 | 3.1/4.3 | 17/22 | 2 | 20 | 1 |
MD-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | 45 | 1 |
MD-30RM | - | - | 3/4 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | 45 | 1 |
MD-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | 65 | 1 |
MD-40RM | - | - | 3/4 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | 65 | 1 |
MD-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | 90 | 1or3 |
MD-55RM | - | - | 1 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | 90 | 1or3 |
MD-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | 150/180 | 1or3 |
MD-70RM | - | - | 1 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | 150/180 | 1or3 |
MD-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | 250/265 | 1or3 |
MD-100RM | - | - | 1 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | 250/265 | 1or3 |
