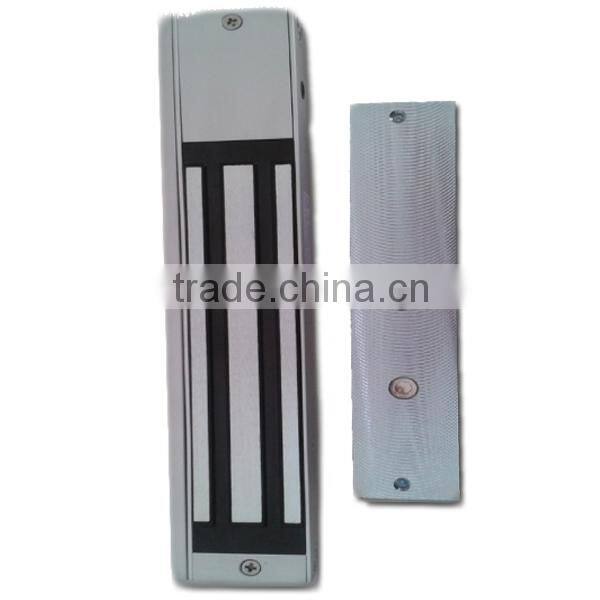

Security Single Door Magnetic Lock With 300lbs Holding

Name: Security Single Door Magnetic Lock With 300lbs Holding
Brand: Joney
SKU: 128315199
Availability: InStock

US$ 1 - 14 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney

Model Number:

JYL-180

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney

Model Number JYL-180

Specifications

Single door magnetic lock
Holding force: 180KG(300lbs)
Suitable for:Wooden Door,Glass Door, Metal Door, Fire Proof Door

Single door magnetic lock with 300lbs holding

Features

1. Collinear Load Test 180kg,300pounds

2. The Standard Voltage is 12VDC when Finished

3. MOV Provides Reverse Current Protection

4. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

5. Anti-Residual Magnetism Designed

6. High Strength Material, Anodized Aluminum Housing

7. Design without Mechanical Failure, Increase the holding Force, Dual Insulated Housing

8. CE Certificate by European Union, MA Certificate by China Public Security Office.

9. Single door design

Specifications

Lock Dimension	170L×35W×21H(mm)
Holding Force	180kg(300Lbs)
Input Voltage	12VDC+10%
Current	12V/380mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp	< + 20 Degree
Operating Temp	-10~+55 Degree (14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
