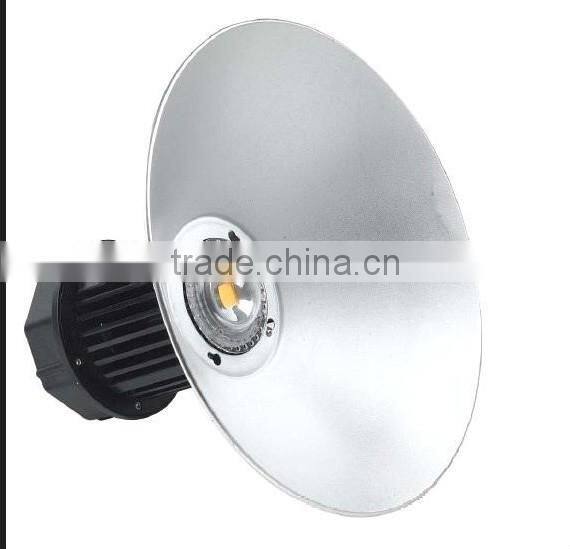

XHL-ML-30W led highbay light/high power LED highbay light CE &RoHS
| Model | XHL-ML-30W-led highbay | |||
| Input Voltage | AC85V-265V | |||
| Frequency Range | 50-60Hz | |||
| Total Harmonic Distortion | ≤9% | |||
| Power Factor | ≥0.9 | |||
| Color Temperature | WW(2700~3200K) | NW(4000~4500K) | CW(6000~6500K) | |
| Illuminance Area | Φ10M(height:10M) | Φ13M(height:12M) | Φ16M(height:15M) | |
| Average Illuminance | 46Lux(height:10M) | 30Lux(height:12M) | 18Lux(height:15M) | |
| CRI(Ra) | >75 | |||
| LED Quantity | 1PCS(bridgelux cob) | |||
| LED Consunption | 30W/50W/80W/100W/120W/150W/200W | |||
| System Consumption | ||||
| LED Luminous Efficiency | 70-90lm/W | |||
| Lamp's Efficiency | >80% | |||
| Junction Temperature | ≤80°C | |||
| Working Temperature | -45°C—+45°C | |||
| IP Grade | IP65 | |||
| Lumen Attenuation | <5% @ 5,000hrs | |||
| Color Of Lamp Shell | Black ; Silver | |||
| Weight:G.W/N.W | ||||
| Packing Dimension | ||||
| Beam Angle | 45°(Angle optional) | |||
LED lamp power we could produce:
1.LED street light from 20w to 750w
2.LED flood light from 5w to 300w
3.LED tunnel light from 40w to 280w
4.LED high bay light from 20w to 1000w
5.LED shoebox from 75w-300w
6.LED panel light from 9w-26w
Our features
1) Strict quality control- All our products are strictly tested by our R&D and QC. we ran High& Low Temp. Operation Test, High& Low Temp. storage Test, High Temp-High Humidity, Light & electrical parameters test. All Test reports, CE, ROHS &IP65 certificates and IES files are available.
2) Excellent heat sink. All our product are ran with working Temp. test, by contrast, you'll find out the led junction temp. of our lamp is lower than that of most other producers. That's because our lamp housings is heavier &thicker, and the housing structure is easy to heat sink.

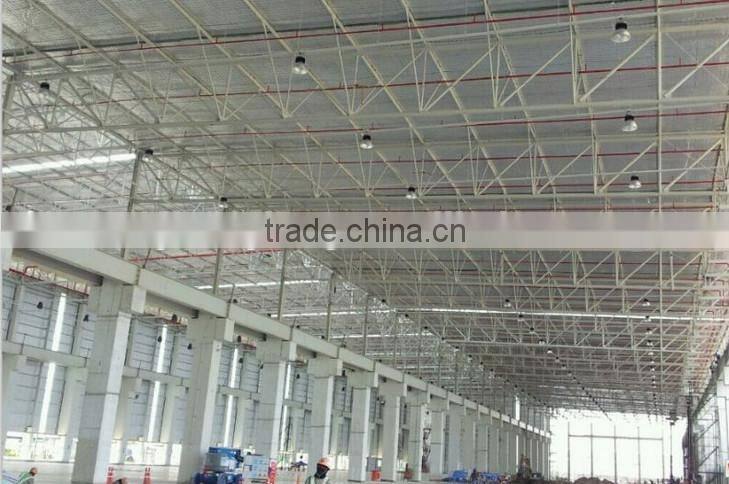

Application XHL-ML-30W led highbay light :
