Specifications
CE certificatetwo years warranty

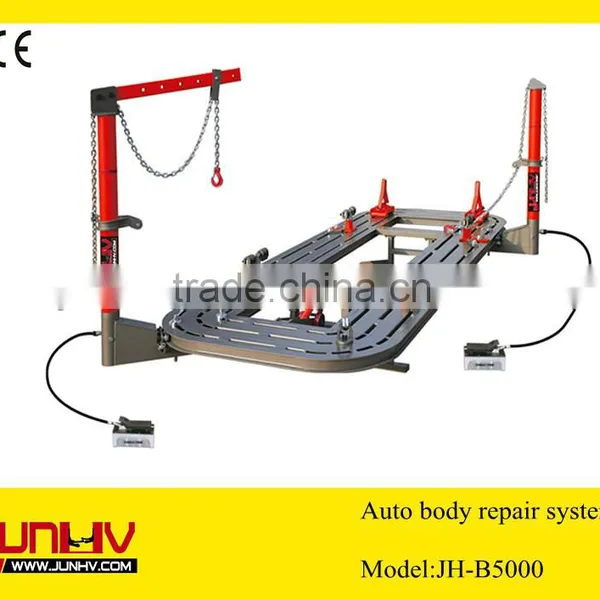

auto body collision repair system
auto body collision repair system
Item No JH -B5000
Technical Parameter:
Table Length: 5600mm
Table Width: 2100mm
Table Height: 580mm
Hydraulic Pressure: 70Mpa
Post Max.Tension: 95KN
Post Working Range : 360°
Pneumatic Pressure: 0.8Mpa
Max.Lifting Weight: 3500kg
Total Weight: 2860kg
Remark: The length and pulling towers’ quantity,
we can manufacture according to client advice and the vehicle type you repair
Features:

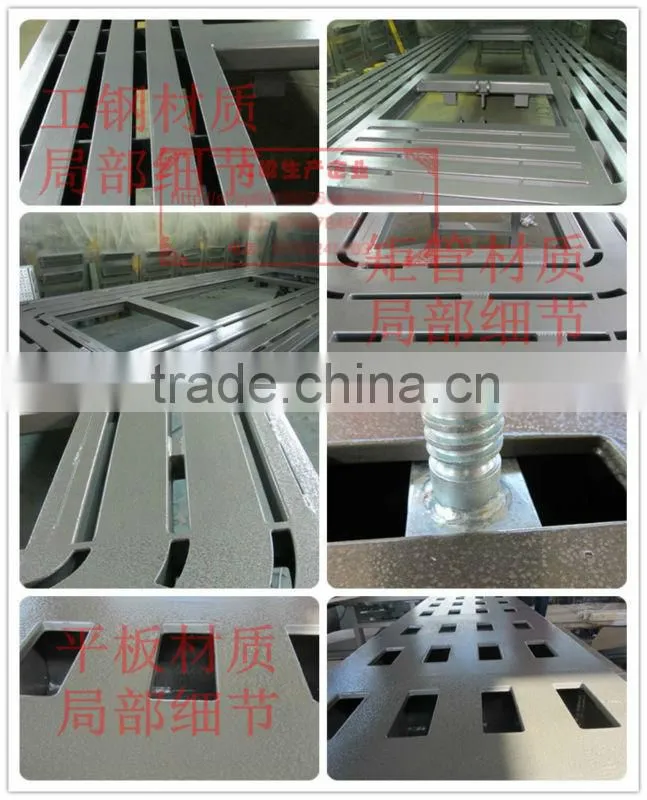

l Platform,be made of high quality rectangular pipe and manganese steel plate by carbon dioxide gas shielded arc, high-strength and good-stiffness.
l The hydraulic pulling tower can flexibly work at 360 degree and the oil cylinder operates perpendicubhy with an accurate and strong pull force.
l Outtrigger tilt functions, the platform can be achieved during the ups and downs do not touch on the ground to reduce the equipment was damaged in the landing ground.
l Tilt lift platform can ramps load car easily.
l Equipped with lots of pulling tools,the operator can choose any of them by themselves.
l Products were made carefully, firm and durable.
HOT HOT !!!
High Quality & Service all series CAR FRAME MACHINE, AUTO BODY REPAIR SYSTEM, CHASSIS MACHINE
2013 4S Station optimal choice
About our company:
JUNHV strives for providing customers with high quality automotive equipment with the best price. All the members of JUNHV have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality but also for the superior services!
Our products have been exported to Asia, Europe, America and Australia.
What We Offer:
Our products include two post lifts, four post lifts, full-rise scissor lifts, mid-rise scissor lifts, tire changers, wheel balancers, and shop presses, hydraulic jacks, cranes and other related products.
