Specifications
1.CE Certificate2.manufacturer of plastic machinerry
3.High output and low cost
4.Long service life
5.Easy to operate

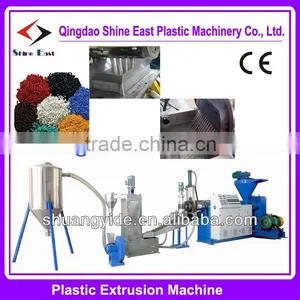

Plastic recycling machine for granulation
This film plastic granulator is used to pelletize the recycling scraps to granules. But this granulator has an agglomerator tank on extruder, it is suitable for all kinds of plastic film, such as PE, HDPE, LDPE, LLDPE.The capacity we can supply is from 100kg/h to 500kg/h.
Plastic granulator include below:
No. |
Item |
1 |
Belt conveyer |
2 |
Crushing barrel |
3 |
Extruder |
4 |
Die head and screen changing device |
5 |
Water ring cutter |
6 |
Vibrating screen |
7 |
Vertical dewatering machine |
8 |
Air drying system |
9 |
Cyclone hopper |
Configration of plastic granulator machine :
Model |
Screw diameter(mm) |
L/D |
Capacity(kg/h) |
Main motor power(kw) |
Total power(kw) |
Line length(m) |
PE-100 |
100 |
25:1 |
300 |
90 |
120 |
12 |
PE-200 |
120 |
25:1 |
400 |
110 |
150 |
15 |
PE-300 |
150 |
25:1 |
500 |
160 |
200 |
18 |
The general process of plastic granulator is as following:
1) Putting into the feeder----Extruding ---- water cooling ---- drying----cutting into granulator
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PE PP PS ABS PVC and polyolefin Modificationand granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
2) It can make granules from pe pp flakes, film or bottles and so on. Our capacity is from 100kg/h to 500kg/h
3) With rotation feeder, the pe pp flakes will get into the screw even and continuously, our motors, tempreture controller and inverters are made by world famous brand, such as Siemense, Omron, RKC, FUJI, and so on. Our screw and barrels are 38CrMoALA, nitrogen treatment. With double screen exchanger, you can exchange the screen without stopping the machines.
Qingdao Shine East Plastic Machinery Co., Ltd
1.Advantages
1.Choose single screw or double-screw technology according to the requirements
2.Double colum four working positions of equipment for exchanging net to remove impurity effectively

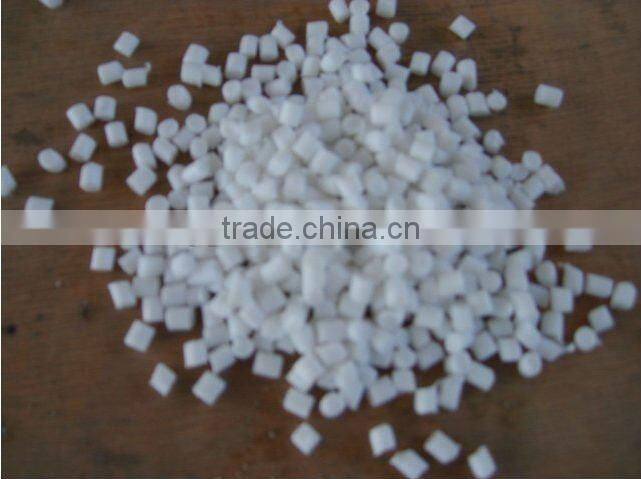

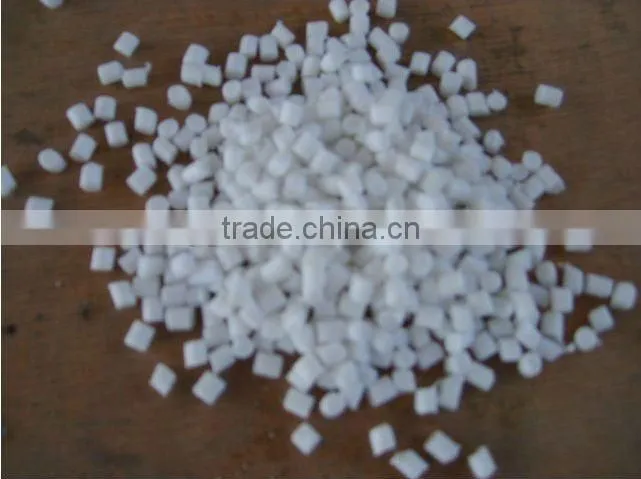

3.Produced grains are even, dense and beautiful
2.The benefits our company bring to you
(1)We are in the field of Plastic machinery for over 5 years, but our technology engineer have been working in this filed for more than 30 years, we providing the qualified plastic profile, plates. pipes, granules extrusion lines.
(2)The exhibitions we attended :Chinese Machinery Exhibition
(3)Various plastic material like PVC,PP,PS,ABS,PE,PPR, PEX, CPVC, UPVC,HDPE,LDPE, PERT,PB,GRP are processed.
(4)The quality of our machines meet the standards of ISO9001 and CE certificate and export to European countries,
Russia,Lebanon,Myanmar,South Africa,Turkey,Algeria,Egypt,Nigeria,India and so on,over 30 countries.
Our customers feedback to us that the quality is reliable.
(5)The prices of our machines are reasonable. We don't do one-shot deal and we expect long-term cooperation
3.Our products
(1).Machines of cold and warm pipes ,gas pipe,ground heating pipe,agricultural irrigation pipes,drainage and vent pipes, power and cable pipes ,chemical drainage pipes.
(2).Building decorative plates, sheets and wood plastic composite profile extrusion line .
(3)Plastics recycling and reprocessing machinery
(4)All kinds of auxiliary machines of plastic pipes, granules, plates, profiles.
4. Machine photo show

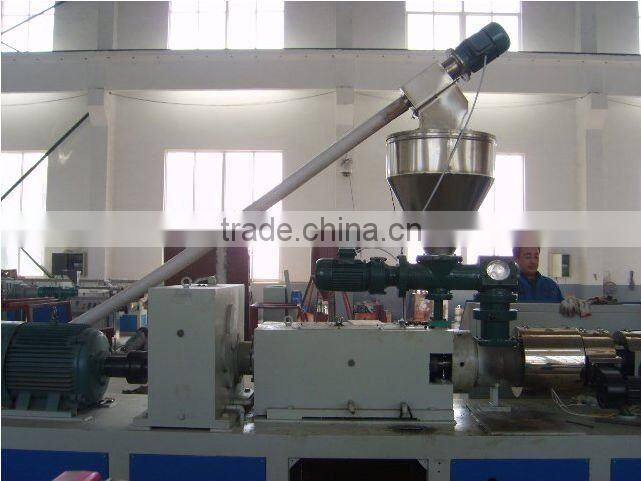

Extruder

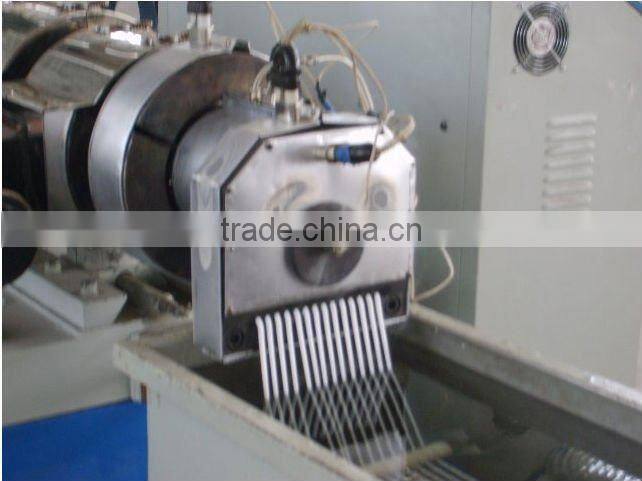

Die head

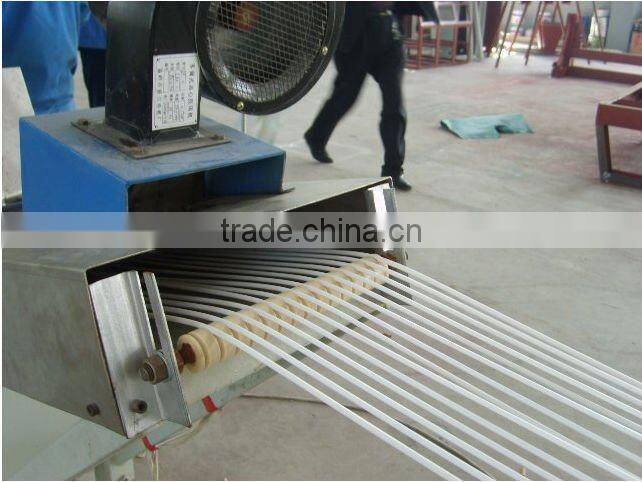

Cooling fan

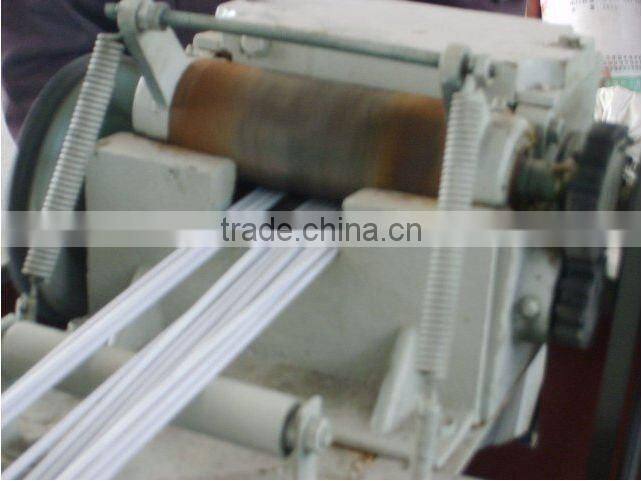

Granulator
